Why Your Boosted Car Breaks Up at High RPM: Spark Plug Gap, Heat Range and Ignition Misfire Explained

A boosted car that idles smoothly, cruises normally and then suddenly breaks up near the top of a pull can feel like it has hit a soft rev limiter. One of the most common suspects is an ignition misfire under load—often called spark blowout—but replacing coils or tightening the spark plug gap without data can waste time and hide a fuel, mechanical or calibration problem.

This guide explains why cylinder pressure changes the ignition system’s job, how spark plug gap and heat range affect performance, and the diagnostic order that helps separate an ignition issue from other causes of a high-RPM misfire.

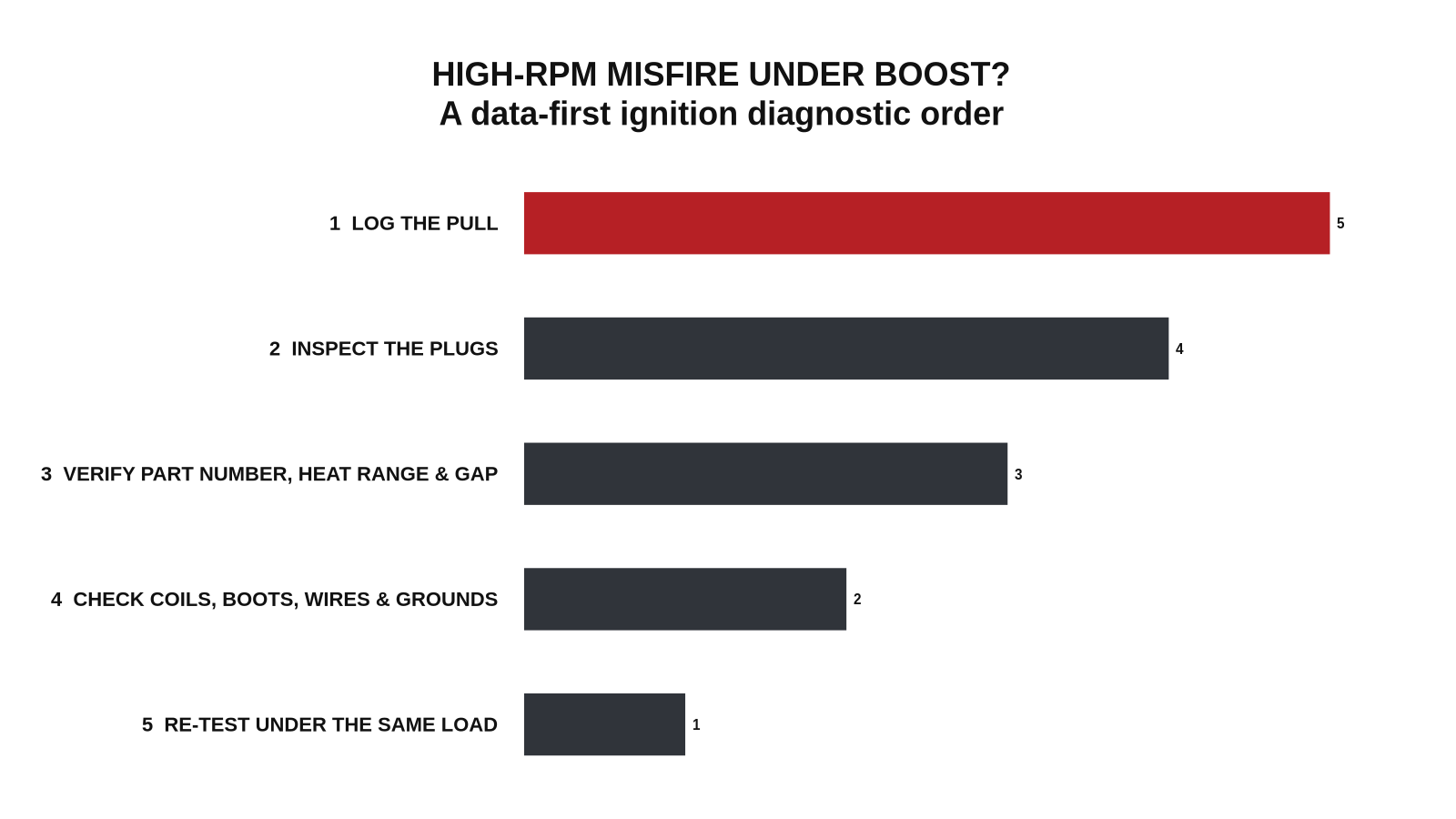

Click the guide to open the full-size image.

What “spark blowout” actually means

The phrase makes it sound as though boost physically blows the spark away. In practice, the problem is usually that the ignition system cannot reliably ionize the plug gap when cylinder pressure rises. More pressure generally requires more voltage to jump the same gap. A plug, coil, boot or wire that works perfectly at idle may become marginal at wide-open throttle.

That is why a load-related ignition problem often appears only as boost, torque and engine speed climb. It may be clean in lower-load driving and repeat at nearly the same point in every hard pull.

Why a boosted engine can misfire only under load

Several factors can stack together:

• Excessive spark plug gap: A wider gap demands more voltage, especially as cylinder pressure increases.
• Worn or damaged electrodes: Erosion increases the effective gap and makes the spark less consistent.
• Incorrect heat range: A plug that runs too cold can foul; one that runs too hot can increase the risk of abnormal combustion.
• Weak ignition hardware: Aging coils, damaged boots, high-resistance wires, poor grounds or heat-related arcing can fail only under load.
• Fuel or calibration problems: Excessively rich mixtures can foul plugs, while inadequate fuel delivery can create a dangerous lean condition that feels similar to ignition breakup.

Do not continue making repeated wide-open-throttle pulls until the cause is understood. An active misfire can send unburned fuel into the exhaust, damage catalytic converters and conceal a more serious fuel-pressure or mechanical issue.

Spark plug gap: tighter is not automatically better

Reducing the gap can lower the voltage required to fire the plug, which is why tuners may specify a tighter gap for a higher-load combination. But there is no universal “boosted engine” gap. The correct specification depends on the ignition system, plug design, fuel, cylinder pressure, combustion chamber, calibration and power level.

A gap that is unnecessarily tight can reduce the size of the initial flame kernel and may hurt idle quality or combustion stability. The goal is not the smallest possible gap; it is the widest gap the combination can fire consistently under its intended load.

Use the specification supplied by the engine builder, tuner or plug manufacturer for the exact combination. Measure every plug with a proper round-wire gauge, adjust only the ground strap and avoid prying against a fine-wire center electrode. Never assume plugs are correctly gapped just because they are new.

Heat range: what it changes—and what it does not

A spark plug’s heat range describes how quickly the firing end transfers heat into the cylinder head. It does not describe spark energy, and a “colder” plug does not make the entire engine run colder.

A plug that retains too much heat can become a hot spot and increase the risk of pre-ignition. A plug that removes heat too quickly may not keep the tip clean during street use and can foul. Also, heat-range numbering is not standardized across every manufacturer: a higher number can mean colder in one brand and hotter in another. Cross-reference the exact part number instead of relying on the number alone.

A smart diagnostic order for high-RPM breakup

1. Log the same controlled pull

Record engine speed, throttle position, boost or manifold pressure, commanded and measured lambda, low- and high-side fuel pressure where applicable, ignition corrections and cylinder misfire data. Stop the pull if fuel pressure falls away, lambda moves unsafe or knock activity becomes severe.

A car that breaks up under boost is not automatically suffering an ignition failure. Review our guides on why an upgraded fuel pump can still lose pressure under boost and why a tuned car may pull ignition timing before treating every high-load problem as a bad coil.

2. Inspect all spark plugs side by side

Keep the plugs organized by cylinder. Compare color, deposits, wetness, electrode wear and porcelain condition. One plug that looks different from the rest can point toward a cylinder-specific injector, coil, wire, compression or mechanical problem.

Stop testing if you find cracked porcelain, melted electrodes, severe blistering, metallic deposits or other signs of abnormal heat or detonation.

3. Verify the exact plug specification

Confirm the part number, thread reach, seat style, resistor type, heat range and measured gap. “It fits the hole” is not enough. An incorrect reach or seat can create sealing, heat-transfer and mechanical problems.

4. Check the complete ignition path

Inspect coil connectors, grounds, boots and wires for loose terminals, corrosion, carbon tracking, arcing marks and heat damage. On systems where it is practical, moving a suspected coil or wire to another cylinder can help determine whether the fault follows the component.

Heat protection matters when plug wires or boots run close to headers. A damaged insulator may look acceptable from above while arcing under load.

5. Re-test under the same conditions

Change one meaningful variable at a time, then repeat the same controlled test. A repair is not confirmed because the engine revs cleanly in neutral; the ignition system must prove itself at the cylinder pressure that originally caused the problem.

Other problems that can mimic spark blowout

Before buying parts, consider the full system. High-RPM breakup can also result from inadequate fuel volume, injector limitations, excessive richness, boost leaks, valve-spring control problems, compression loss, crank or cam signal issues, restrictive exhaust components or calibration errors.

Recent hardware changes deserve special attention. If the vehicle has new injectors, a power adder, a pulley change, ethanol conversion or other airflow modification, review when modifications require recalibration. Fuel composition can also change the required fuel volume and the available system headroom; our seasonal E85 guide explains why the ethanol content in the tank may not match the number on the pump label.

When ignition upgrades make sense

Performance coils and wires can be valuable when the original system is worn, damaged or genuinely out of voltage and energy headroom. They are not a substitute for the correct plug, gap, fuel system or calibration.

SMG Speed Shop carries application-specific ignition components, including the MSD Red Square GM LS/LTx eight-coil pack, MSD Super Conductor wires for Gen V LT1 applications and Vibrant spark-plug boot insulators. Always verify vehicle and engine fitment before ordering.

Common mistakes to avoid

• Copying another car’s plug gap without matching its complete combination.
• Changing coils before reviewing fuel pressure and lambda data.
• Assuming a colder plug is always safer for street use.
• Using the wrong tool and damaging a fine-wire electrode while gapping.
• Applying thread lubricant or anti-seize against the plug manufacturer’s instructions.
• Making repeated full-load tests while the engine is actively misfiring.

The takeaway

A boosted engine that breaks up at high RPM needs a system-level diagnosis. Start with the data, compare the plugs, verify the exact heat range and gap, inspect every part of the ignition path, and then repeat the same controlled test. The correct solution may be a simple plug-service issue—or the misfire may be warning you about fuel delivery, calibration or mechanical trouble.
