Camshaft “Stages” Are Mostly Marketing: How to Choose the Right Cam for Your Build
A camshaft can completely change the personality of an engine—but the number printed after the word Stage tells you far less than most shoppers think.
“Stage 1,” “Stage 2,” “Stage 3” and “Stage 4” are not standardized engineering specifications. One company’s Stage 1 may be mild enough for stock springs and a stock converter, while another Stage 1 may be intended for a high-compression stroker with upgraded cylinder heads, a larger converter and an entirely different operating range. The label is useful only inside that manufacturer’s specific product family.
The right way to choose a camshaft is to match its actual valve-event specifications to the engine, cylinder heads, induction system, exhaust, transmission, converter, gearing, vehicle weight, tire, power adder and intended use. That complete-package approach makes more power where the vehicle can use it—and avoids turning a good street car into a frustrating combination.

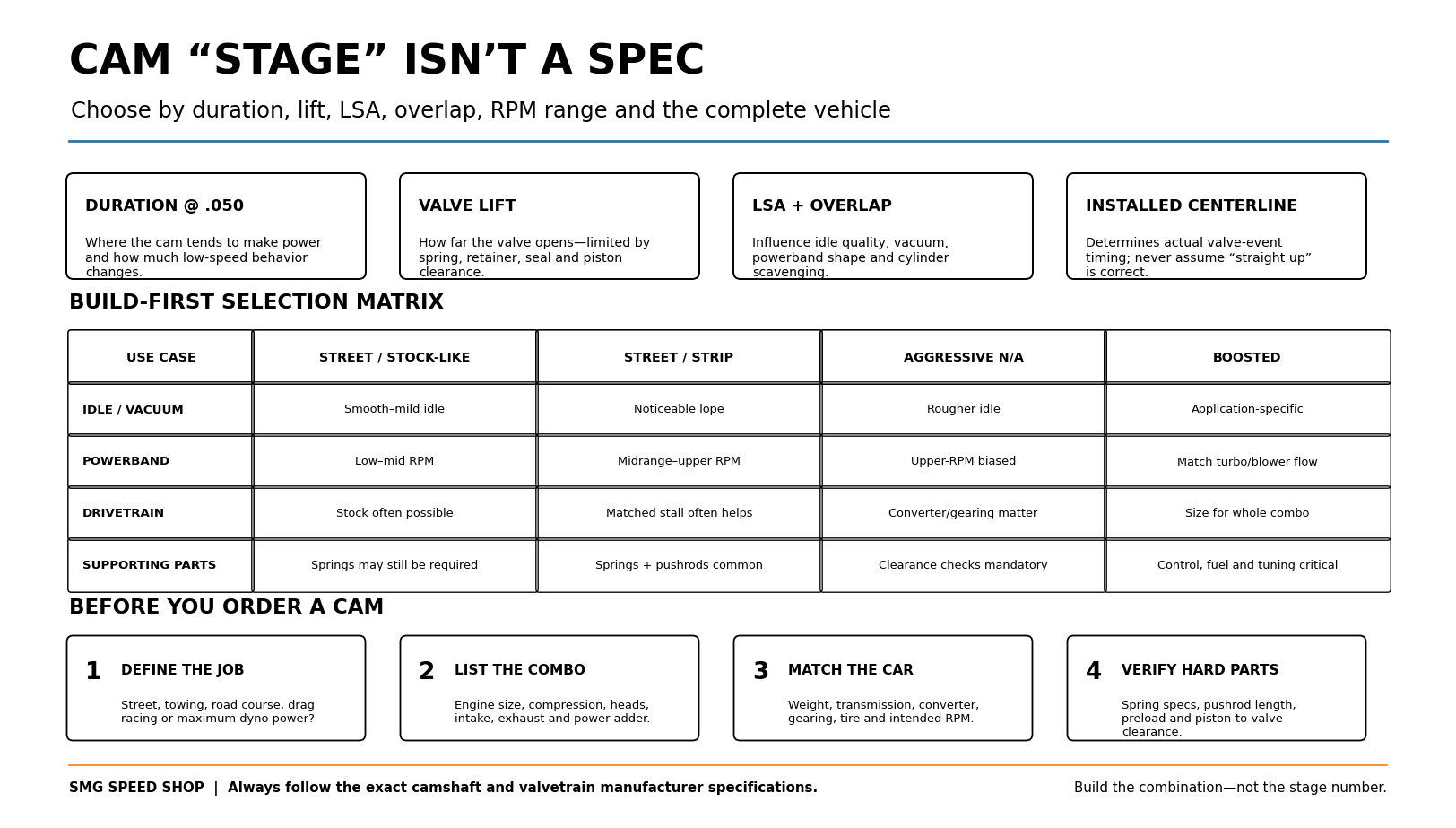

Click the camshaft selection guide above to open the full-size reference image.
Why Camshaft “Stages” Are Mostly Marketing
A stage number is a convenient way for a manufacturer to arrange several cams from milder to more aggressive within one application. It is not a universal scale that lets you compare unrelated engines, brands or product families.
A mild truck cam can carry a Stage 1 label with short duration, modest lift and a powerband designed around a stock converter. A Stage 1 cam for a large-displacement, high-compression LT stroker can have dramatically more duration and lift and require upgraded springs, pushrods, lifters, cylinder heads and piston-to-valve clearance verification. Both can honestly be called Stage 1 because the label only describes where each cam sits within its own lineup.
That is why buying the “biggest stage” is not the same thing as buying the fastest cam. The stage number cannot tell you:
- Where the engine will make peak torque and horsepower
- How much low-speed torque and idle vacuum may be sacrificed
- Whether the stock converter will keep the engine in the useful powerband
- Whether the springs, pushrods, lifters and retainers are compatible
- Whether piston-to-valve, retainer-to-seal and coil-bind clearance are safe
- How the cam will behave with a turbocharger, supercharger or nitrous
- How much calibration work will be required for stable idle and drivability
The Camshaft Specifications That Actually Matter
Duration at .050-Inch Lift
Duration is the number of crankshaft degrees that a valve remains open. Advertised duration can be measured at different checking heights, so duration at .050-inch tappet lift is the most useful common reference when comparing hydraulic-roller performance cams.
More duration generally moves the useful powerband higher and allows more airflow at elevated RPM. It can also reduce low-speed cylinder pressure, soften bottom-end torque, increase overlap and make idle quality more demanding. Engine displacement matters: the same cam usually behaves milder in a larger engine and more aggressively in a smaller one.
Duration at .050 still does not describe the entire lobe. Two cams with similar .050 numbers can use different opening and closing rates, advertised duration and area under the lift curve. Treat it as an important comparison tool—not the whole answer.
Valve Lift
Valve lift is how far the valve is opened. More lift can expose additional cylinder-head airflow, but only when the head, intake and exhaust can use it. Chasing lift beyond the useful flow range of the cylinder head can add valvetrain stress without delivering the expected power.
Lift also determines whether the complete valvetrain has adequate clearance. Always verify spring coil bind, retainer-to-seal clearance, valve-guide clearance, rocker geometry and piston-to-valve clearance against the exact cam, rocker ratio and installed components. A spring advertised for a certain maximum lift is not a substitute for physically checking the assembled engine.
Lobe Separation Angle and Overlap
Lobe separation angle, or LSA, is the angle between the intake and exhaust lobe centerlines. For otherwise comparable lobes, a tighter LSA commonly increases overlap, concentrates the powerband, roughens idle and reduces idle vacuum. A wider LSA commonly reduces overlap and can broaden or smooth the power delivery.
However, LSA alone does not define overlap. Actual intake and exhaust duration, lobe shape and installed position determine the valve events. This is especially important when comparing naturally aspirated, turbocharged and positive-displacement-supercharged combinations. “Wide LSA for boost” is not a complete cam-selection strategy; turbine backpressure, blower type, cylinder-head flow, displacement, compression and the desired RPM range all matter.
Installed Intake Centerline
The lobe separation angle is ground into the camshaft. The installed intake centerline describes where the cam is positioned in the engine. Advancing or retarding the cam changes when the intake valve opens and closes and can shift the torque curve.
Degreeing the cam verifies that the actual installed position matches the cam card. Manufacturing tolerances in the cam, crank sprocket, timing set and block stack-up make “line up the dots and assume” a poor practice on a serious build.
Choose the Cam Around the Entire Vehicle
A camshaft does not operate on an engine stand by itself. The vehicle determines whether the added airflow becomes usable acceleration or simply a higher dyno number in an inconvenient RPM range.
Engine and Airflow Combination
Start with displacement, compression ratio, cylinder-head flow, intake manifold, throttle body, exhaust system and intended fuel. A cam that works well in a 6.2-liter engine may feel significantly more aggressive in a 5.3-liter engine. A naturally aspirated engine with high-flow heads needs different valve events than a restrictive stock-head combination.
Power-adder selection also changes the job. A turbo cam must account for turbine size and exhaust backpressure. A positive-displacement-supercharger cam must work with the blower’s airflow and the engine’s tendency to make strong low- and midrange torque. A centrifugal-supercharger combination often has different RPM and airflow priorities. Nitrous adds another layer of cylinder pressure, exhaust flow and fuel-system demand.
Transmission, Converter and Gearing
An automatic transmission’s converter must place the engine in the cam’s usable torque range. A large cam paired with a tight stock converter can produce a lazy launch, unstable idle in gear and excessive heat as the vehicle struggles below the powerband. A properly matched converter often makes a moderate cam feel stronger than a larger cam with the wrong converter.
Manual-transmission cars are not automatically exempt. Vehicle weight, first-gear ratio, rear gearing and tire diameter still determine how quickly the engine reaches the useful RPM range and how pleasant the car is to drive in traffic.
Browse SMG torque-converter options while planning the cam—not after the car is already apart.
Street Use, Track Use and Real RPM
Be honest about how the vehicle is used. A street car that spends most of its life between 1,500 and 4,500 RPM needs a different solution than a lightweight drag car that launches above 4,000 RPM and shifts near 7,500. Road-course cars need a broad, controllable powerband and thermal durability. Trucks may need low-speed torque, brake vacuum and towing manners more than a dramatic idle.
The fastest street combination is usually the one that produces the most average torque across the RPM range the vehicle actually uses.
The Supporting Parts Are Part of the Camshaft Decision
A cam swap is a valvetrain system—not one part. Depending on the engine and cam, the complete package may include:
- Valve springs with the correct seat pressure, open pressure, installed height and coil-bind margin
- Pushrods with verified length, wall thickness and diameter
- Lifters, trays and guides appropriate for the intended RPM and lobe design
- Retainers, locks and valve seals compatible with the spring package and lift
- A timing set, phaser limiter or lockout where the application requires it
- AFM/DOD-delete components on engines being converted away from cylinder deactivation
- Gaskets, fasteners, oil, coolant and one-time-use hardware required for correct assembly
- A calibration strategy for idle airflow, fueling, spark, torque management and transmission behavior
For a complete direct-injection LT package, see the COMP Cams Stage 1 LST master camshaft kit for LT1 Camaro and Corvette applications. Naturally aspirated LS builds can also review the BTR 400+ N/A camshaft, while boosted Gen V customers can compare the BTR Gen V Stage 1 L83 turbo cam kit and BTR Gen V Stage 2 turbo camshaft kit.
These links are starting points, not universal recommendations. The correct part depends on the complete build and vehicle.
Pushrod Length Is Measured, Not Guessed
Deck height, cylinder-head milling, gasket thickness, valve length, lifter design, rocker geometry and base-circle size can all change the required pushrod length. Read our guide to measuring pushrod length accurately before treating a catalog length as guaranteed.
Valve Adjustment and Lifter Preload Still Matter
A correct parts list can still fail if the valvetrain is assembled incorrectly. Review our valve-lash and adjustment guide, and follow the exact lifter and camshaft manufacturer’s preload procedure for the application.
Why the Biggest Cam Is Often Slower on the Street
An oversized cam can trade away useful low- and midrange torque, require more converter than the owner wants, reduce brake vacuum, increase idle airflow requirements and make the vehicle harder to control at low speed. It may also expose limitations in the fuel system, intake, exhaust, cylinder heads or transmission.
That does not make a large cam “bad.” It means the cam must fit the goal. A race-oriented combination with compression, cylinder-head flow, gearing and RPM to support it can benefit from substantial duration and lift. Installing the same cam in a heavy street car with a stock converter and highway gears can make the car slower through the part of the RPM range it uses most.
A well-matched smaller cam can deliver better average power, faster spool, improved converter coupling, more consistent traction and better drivability. The result is often a car that is quicker everywhere except the final line of the dyno graph.
Camshaft Shopping Checklist
Before ordering, document the following:
- Engine family, displacement and compression ratio
- Cylinder-head casting, porting, valve size and measured airflow if available
- Intake manifold, throttle body, headers and exhaust configuration
- Turbo, supercharger or nitrous details—including expected boost and RPM
- Transmission, converter stall, rear gear and tire diameter
- Vehicle weight and actual street/track use
- Desired idle quality, brake-vacuum needs and acceptable maintenance level
- Maximum operating RPM and the valvetrain parts already installed
- Fuel type, injector capacity, pump capacity and tuning solution
Then compare the cam card—not just the stage number. Confirm duration, lift, LSA, installed centerline, recommended RPM range, spring requirements, converter recommendation and clearance instructions.
A Cam Swap Requires Calibration
Modern EFI engines rely on modeled airflow, idle control, torque calculations and transmission strategies that change when valve events change. A camshaft installation should include a proper calibration plan, not a hope that the factory tune will adapt.
Read Do You Need a Tune After Performance Mods? for a broader explanation, and browse HP Tuners hardware and licensing for supported applications.
Build the Combination, Not the Stage Number
The best cam is not the one with the highest stage label or the roughest idle. It is the one that makes the strongest usable power in the vehicle’s real operating range while keeping the valvetrain, converter, fuel system and calibration inside their intended limits.
Shop camshafts at SMG Speed Shop, then pair the selection with the correct springs, pushrods, lifters and converter. For complete build planning, installation and dyno calibration, SMG Speed Shop and North Texas High Performance can help turn the parts list into a combination that works as one system.
