Edge CTS4: Choose the Right Truck Monitor or Tuner Before You Buy
Edge Products has introduced the CTS4 family, updating its in-cab display platform for truck monitoring and, on certain models, tuning. Its October 20 technical overview describes a larger 5.5-inch display, a dual-core processor, customizable gauges and data logging. Those hardware improvements are useful, but the buying decision starts one step earlier: do you need to observe what the truck is doing, change its calibration, or both?
1. Separate monitoring from tuning
The Insight CTS4 is primarily a monitor. It displays supported vehicle data through the OBD-II connection, can log data and can help surface diagnostic information. It does not mean every possible parameter will be available on every truck, and an extra sensor or accessory may be needed for a reading the factory computer does not provide.
The Evolution CTS4 combines monitoring with Edge's preloaded, vehicle-specific tuning on supported applications. Edge also lists an Insight+ option for custom-tuning workflows and a Juice with Attitude version in its broader CTS4 lineup. These are distinct products, not interchangeable names for the same calibration capability. Start with the exact part number and the manufacturer's current application guide.
2. Decide which data will answer your question
For a work truck or tow rig, the most useful display is the one that shows data you can act on. Depending on the vehicle and hardware, that might include coolant or transmission temperature, intake temperature, fuel-system information, diagnostic trouble codes or an external exhaust-gas-temperature sensor. List the signals you actually need, then verify each signal is supported for your engine, model year and device. A bright screen cannot make an unavailable factory data channel appear.
3. Match the tuner to the whole combination
A calibration intended for an otherwise stock truck is not automatically appropriate for a different turbocharger, injectors, tire size or drivetrain setup. Before ordering a tuning-capable CTS4, confirm the exact truck, engine, transmission, ECU requirements, planned modifications and supported tune options with Edge's application information and a qualified tuner. If your build needs a custom calibration, verify the device and licensing path before buying hardware.
4. Check emissions and operating constraints
Tuning availability and emissions certification are not the same thing. Edge said the Evolution CTS4's California certification was pending at the time of its October 20 overview; rules and product approvals can change. Confirm the current legal status for your location and the exact part number, retain required emissions equipment, and follow the manufacturer's installation and update instructions. Do not infer legality or fitment from a broad “gas” or “diesel” product label.
5. Plan installation and a baseline log
Before changing anything, record the truck's current condition, fault codes and relevant operating data. Confirm the OBD-II port, mounting position, power supply, updates and any external sensors the chosen configuration requires. After installation, compare like-for-like logs under safe conditions and address mechanical or fuel-system faults before attributing a result to a tune.
The practical takeaway is simple: buy the level of capability the truck actually needs. If you want visibility, start with verified monitoring support. If you want calibration changes, check application-specific tuning, licensing, the supporting hardware and the legal requirements first. SMG Speed Shop can help source compatible performance hardware, while a qualified local performance shop can review the complete build and data plan before calibration.

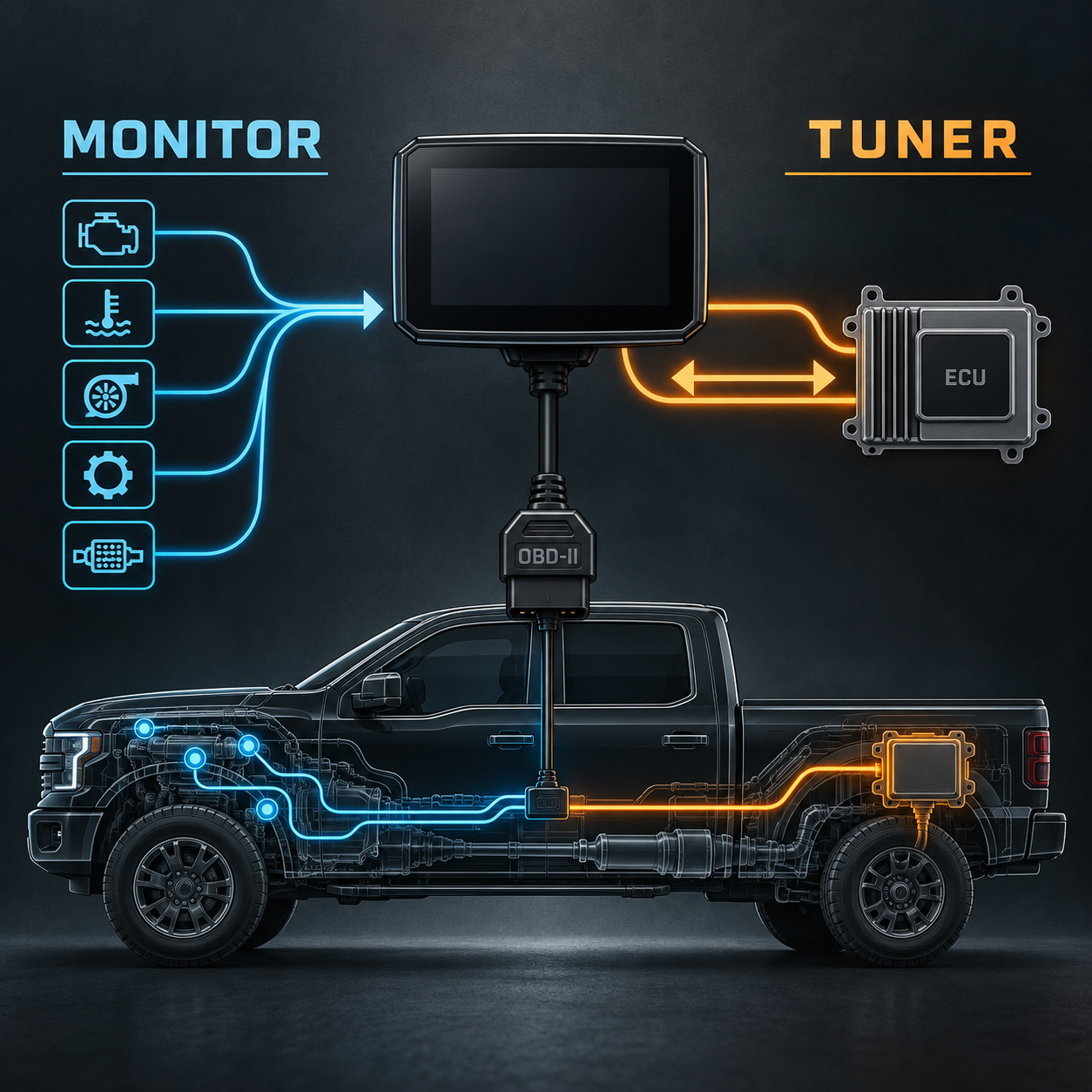

Illustration note: The hero is an AI-generated explanatory concept showing the difference between reading vehicle data and writing a calibration. It is not a photograph or wiring diagram of an Edge product.
Sources: Edge Products CTS4 lineup; Holley/Edge October 20 CTS4 technical overview.
