Holley’s Throttle-Body Sizing Guide: Match Airflow to the Whole Build
A bigger throttle body is not always better. Use Holley’s new guide to check intake-path restrictions, fitment, drivability and tuning before upgrading.
A larger throttle body can look like an obvious next step when planning an intake upgrade. But a throttle body does not work alone: the air filter, inlet tube or charge pipe, throttle blade, manifold opening, engine airflow demand and calibration all shape the result. In a recent Holley Motor Life technical guide, Holley argues for sizing the component to the combination instead of choosing the biggest available diameter.

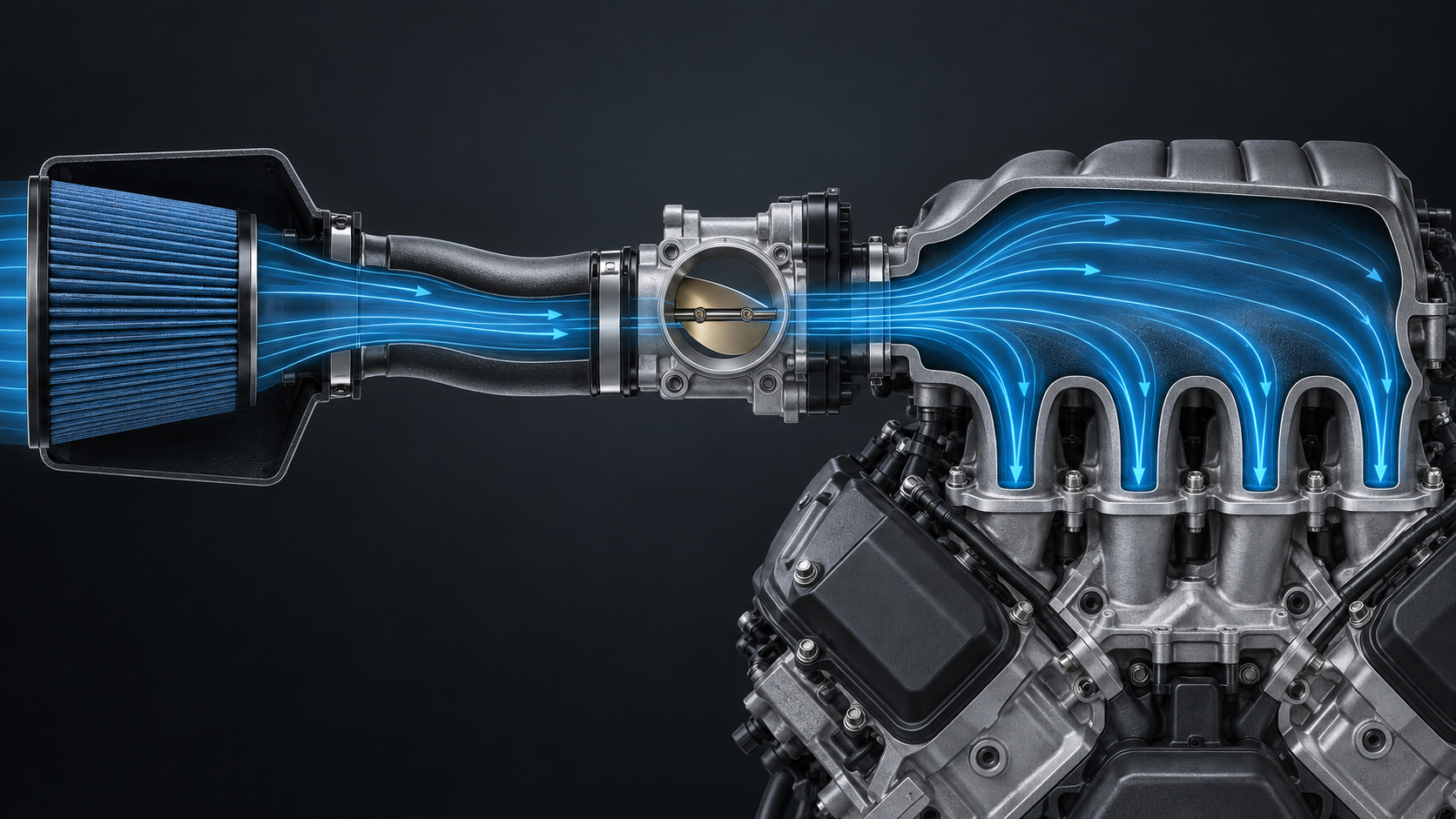

Illustration: a conceptual intake-path diagram, not a photo of a specific product or vehicle.
More diameter is not a guaranteed power gain
At a given engine operating point, opening up one part of the intake tract does not automatically increase the air the engine can use. If the throttle body was not the limiting restriction, a larger unit may change pedal response more than wide-open-throttle output. Holley also notes that a substantially oversized throttle body can make tip-in feel abrupt, particularly where precise low-speed throttle control matters. That is a reason to evaluate drivability as well as peak-flow claims.
Find the actual restriction first
On a boosted build, a repeatable pressure difference between the charge pipe upstream of the throttle body and the intake manifold can be a useful diagnostic clue. It is not proof by itself that the throttle body is the culprit: pipe routing, couplers, intercooler, intake opening, sensor placement and test conditions also matter. On a naturally aspirated setup, logs and a controlled comparison at similar temperature and load are more informative than a diameter printed on a product box. A qualified tuner can help separate an airflow restriction from calibration or sensor issues.
Match the hardware and the controls
Before buying, confirm the exact vehicle and engine application, throttle-body bolt pattern, inlet and manifold diameters, blade clearance, connector and sensor arrangement, and whether the vehicle uses electronic or cable throttle control. Forced-induction setups also need the charge pipe and coupler matched to the new opening. An adapter can solve a mounting mismatch, but it does not by itself prove the whole path flows better. Follow the part maker's instructions and verify whether the change needs an ECU calibration or a relearn procedure.
A better purchase checklist
- Identify the engine, induction setup and exact part number before relying on an application listing.
- Measure the adjoining intake or charge-pipe and manifold openings; check for a step, taper or clearance issue.
- Keep a baseline of drivability and relevant logs, then compare under repeatable conditions after installation.
- Budget for any required coupler, adapter, wiring, gasket or calibration work rather than treating the throttle body as a standalone bolt-on.
The useful question is not “How large can I go?” but “Which size and control package fits this engine and the rest of this intake?” SMGspeed can help customers narrow parts by application; for a full performance build or tune, have the complete combination reviewed before ordering. Read Holley's source guide for its detailed discussion of airflow and throttle response.
