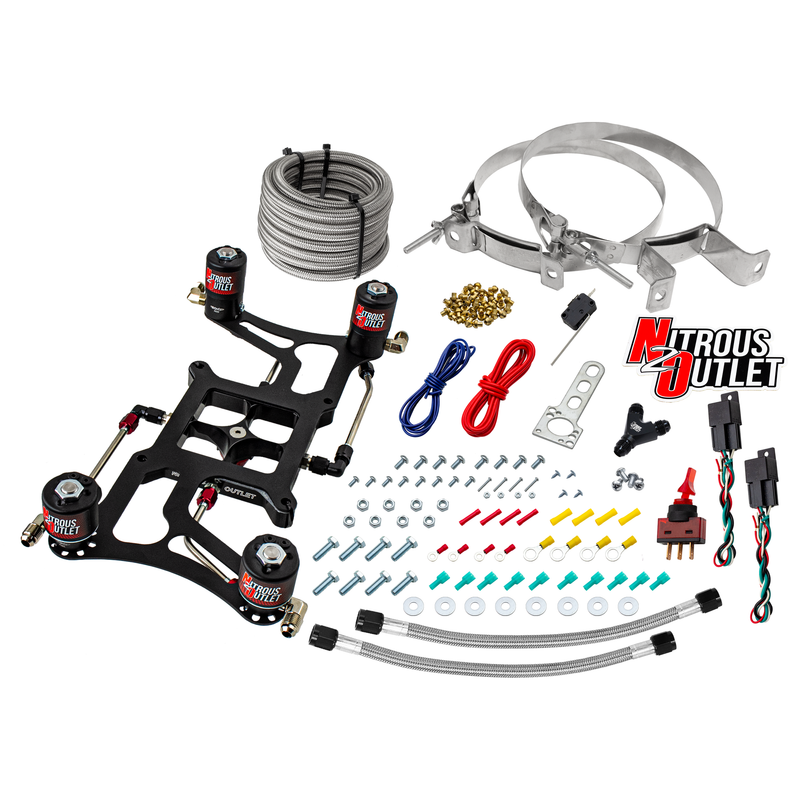

Nitrous Outlet 4150 Hornet 2 Dual Stage System - Hard-line/Two .122 Nitrous Solenoids/Two .177 Fuel Solenoids/Four Solenoid Boomerang Bracket - (Gas/E85)(5-55 psi)(50-500 HP Per Stage)(No Bottle)

• 870HP Max Flow_x000D_

• Dual Entry_x000D_

• 4150 Flange_x000D_

• 360° Discharge Pattern_x000D_

• Precise Atomization_x000D_

• Anodized Billet Aluminum Stinger Plate_x000D_

• Boomerang Solenoid Bracket_x000D_

• Gasket, Jetting And Hardware Included_x000D_

• Nitrous Jetting For 50-500 Per Stage_x000D_

• Fuel Jetting For Gasoline And E85 5-55psi Fuel Systems

Dual Stage Hornet 2:

The Hornet 2 is based on the hugely successful Stinger Nitrous Plate lineup and follows the ideology that nitrous plates are not one-size-fits-all. It is designed to saturate the incoming air flow by placing the discharge cone at the top of the intake throat while discharging the nitrous horizontally across the intake plenum in a 360° pattern.

Design:

The Hornet 2 is a dual-entry, dual-stage nitrous plate that provides a total max flow of 860hp. The fuel discharge ports are on top and discharge at a downward angle towards the horizontal nitrous discharge. The nitrous will mix into the air stream allowing the engine vacuum to pull it into the cylinder. This is a perfect plate for intake manifolds that do not have a tall deck height from the top of the runner to the carburetor flange.

Construction:

The 4150 plate and cone are manufactured from 6061 billet aluminum. The nitrous plate is .75€ thick and black anodized with engraved Nitrous Outlet logos and Fuel / N2O entry marking. The cone is anodized red and features 16 nitrous discharge holes and 16 fuel discharge holes. Premium gaskets are included as well as Jetting for 50-100-150-200-250-300-350-400-450-500 horsepower shots, per stage. We even include fuel jetting for gasoline and E85! This is a standard system and utilizes two .122 nitrous solenoids and two .177 fuel solenoids. Custom pre-bent stainless hardlines are included to connect the solenoids to the plate, as is our popular Boomerang Solenoid Bracket.

Application:

The Hornet 2 is designed to saturate the intake plenum with a 360° discharge pattern. We suggest using the Stinger 2 plate with intake manifolds that measure 1 3/4€ or less from the top of the intake runner to the carburetor flange.
