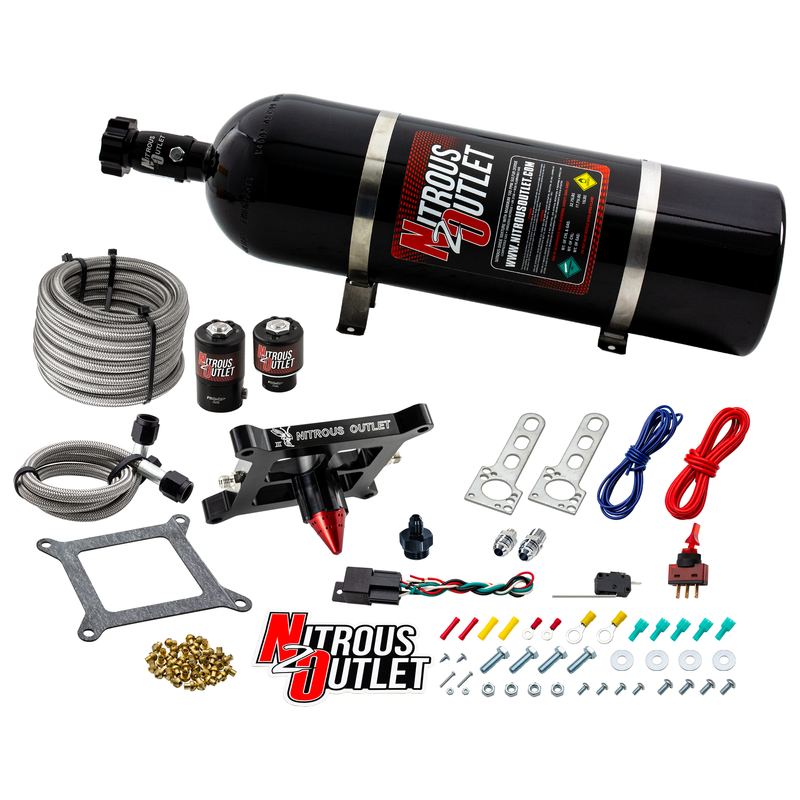

Nitrous Outlet 4150 Stinger 3 Dry System - Braided Hoses/.122 Nitrous Solenoid/Universal Solenoid Bracket - (50-500 HP)(15lb Bottle)

• Revolutionary GEN III Design_x000D_
• Extended Reach Cone_x000D_
• 600 HP Max Flow_x000D_
• 4150 Flange _x000D_
• 360° Discharge Pattern_x000D_
• Precise Atomization_x000D_
• Anodized Billet Aluminum Stinger Plate_x000D_
• Gasket, Jetting and Hardware Included_x000D_
• Jetting for 50-100-150-200-250-300-350-400 HP

Extended Reach Cone. Nitrous Outlet is proud to introduce the 3rd generation Stinger plate for 4150 and 4500 flange carbureted style intake manifolds. The revolutionary extended reach cone is the first in its class! The extended "Stinger" sits further down inside the intake plane to prevent nitrous from hitting the sidewalls on intakes with a high plane or spacer plate. All the same great features of the Stinger II, in an upgraded package.

_x000D_ _x000D_

Precise Atomization. The Stinger plate has a large unique cone shaped €œstinger€ that protrudes from the bottom portion of the plate into the center of the intake throat. Each Stinger has 16 discharge ports, 8 for nitrous and 8 for fuel. The 16 atomized plumes of nitrous and fuel exit from the center of the stinger into the intake plenum in a 360 degree pattern completely saturating the air intake charge as it enters the intake plenum for even distribution.

_x000D_ _x000D_

Construction. The Stinger plate is CNC machined from 6061 billet aluminum, has a black anodized body, red anodized stinger, and is CNC engraved with the Nitrous Outlet logo and fuel/nitrous ports.

_x000D_ _x000D_

Dry System. This is a dry system that injects nitrous only, so you will need larger injectors, an aftermarket ECU, and a fuel management system to compensate for the amount of nitrous your spraying.

_x000D_ _x000D_ Complete System. This system includes everything needed to spray 50-400 HP. Package includes .122 nitrous solenoid capable of flowing 500hp, solenoid brackets, billet aluminum Stinger Plate, main feed line, relay, harness, jetting, hardware, and wiring.
_x000D_ _x000D_

Application. This system is designed to work with any vehicle using a carb style 4150 flange intake manifold. Attended use with a EFI 4150 style intake

_x000D_ _x000D_

Note. Our Gen III Stinger and Hornet plates are a directional plate design and must be installed with the fuel solenoid towards the front of the car and the nitrous solenoid to back of the vehicle. Failure to do so, will result in poor nitrous/fuel distribution and could result in engine damage.
