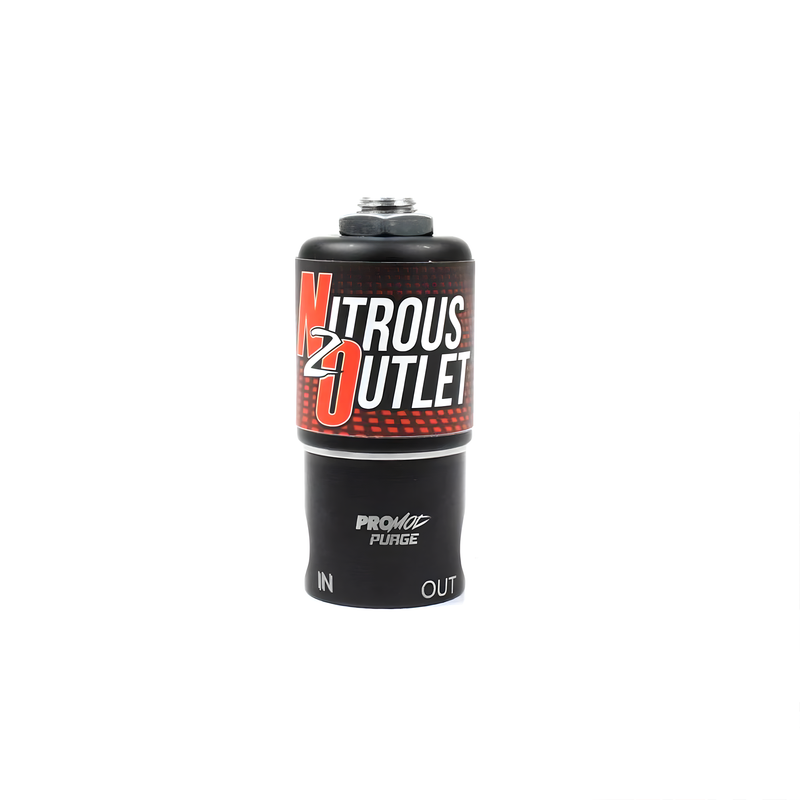

Nitrous Outlet Pro-Mod .063 Purge Solenoid - Aluminum Base

• .063" Orifice_x000D_
• 150HP Max Flow_x000D_
• 6061 Aluminum Body_x000D_
• Sleek Matte Black Finish_x000D_
• 1/8" NPT Inlet and Outlet_x000D_
• 10 Amp Draw

Two Port Design:
ProMod Purge Solenoids feature a 2-port design - inlet and outlet. The inlet port is 1/8"NPT thread with a coarse screen filter to keep larger debris from entering the solenoid. The inlet port is clearly marked on the solenoid body with a laser etched IN. The .063" orifice outlet port is located on the opposite side of the solenoid and has 1/8"NPT threads. The outlet port is clearly marked on the solenoid body with a laser etched OUT. Seal all fittings screwed in to the solenoid body using blue Loctite 246.

Sleek Matte Black Body:
T6061 Billet Aluminum - That's what the ProMod Purge Solenoid Bases are precision CNC machined from. They are then anodized black and laser etched. Next in are the piston, return spring, and steel tower. Because of the aluminum base, we utilize a steel washer to maintain superior magnetics and proper operation. On top of the washer goes the heavy-duty epoxy encapsulated coil. Finally, the matte black powdercoated steel can completes the unit and is topped of with one of our attractive solenoid stickers.

_x000D_ _x000D_

Light Weight and Max Performance:
The coil draws only 10amps, so 12ga wire for power and ground will be sufficient. Finally, the .063" orifice is capable of flowing up to 150 horsepower!
