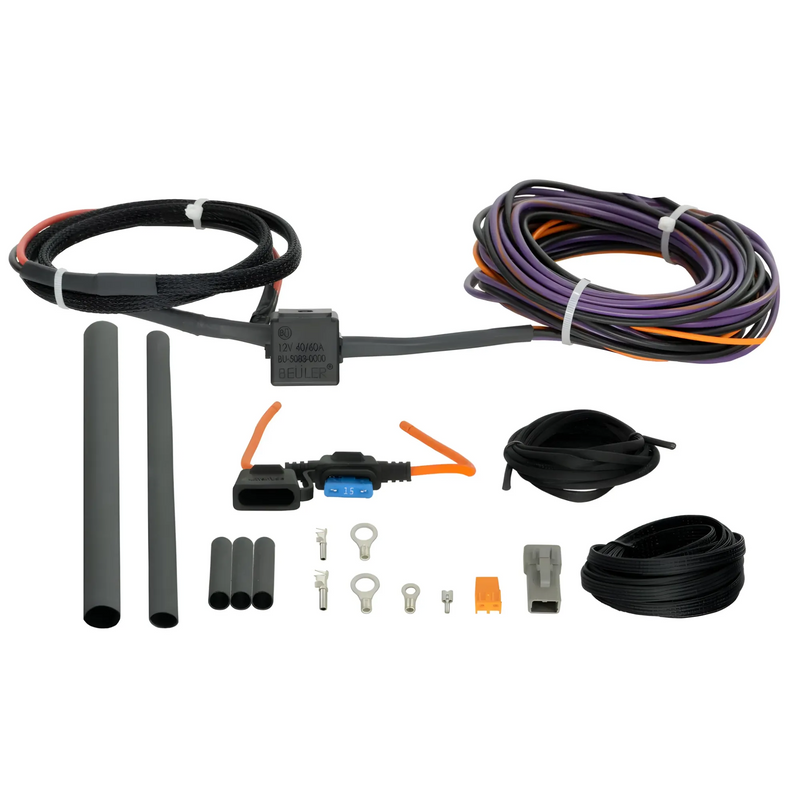

Nitrous Outlet DIY Stand Alone Dedicated Fuel System Wiring Harness
- Easy Wiring Solution To Installing A Dedicated Fuel System_x000D_
- Harness Routing Instructions_x000D_
- Detailed Colored Wiring Diagram_x000D_
- Deutsch Connectors_x000D_
- High Quality Molex Terminals_x000D_
- Bueler 40/60 Amp Relay_x000D_
- Protective Expandable Wiring Loom_x000D_
- Automotive Copper Core Wire with Protective Silicone Coating_x000D_
- Inline 15 Amp Fuse
The Nitrous Outlet DIY Bottle Stand Alone Dedicated Fuel System Pro Wiring Harness is designed to provide a quick and easy wiring solution to installing a dedicated fuel system.
Ā
The most time consuming and complicated part of the wiring process is eliminated with the detailed instructions, colored wiring schematics, pin out sheet, and universally mounted prewired relay.
Installation requires 7 easy steps
_x000D_Step 1:Ā Determine location and mount the relay.
Step 2:Ā Route the main power wire and ground wire.
Step 3:Ā Route the wiring to the system components.
Step 4:Ā Cover the wire with the protective expandable wiring loom.
Step 5:Ā Cut the wire to length.
Step 6:Ā Terminate the wiring ends and connect to the system components.
Step 7:Ā Connect power and ground source and check operation.
