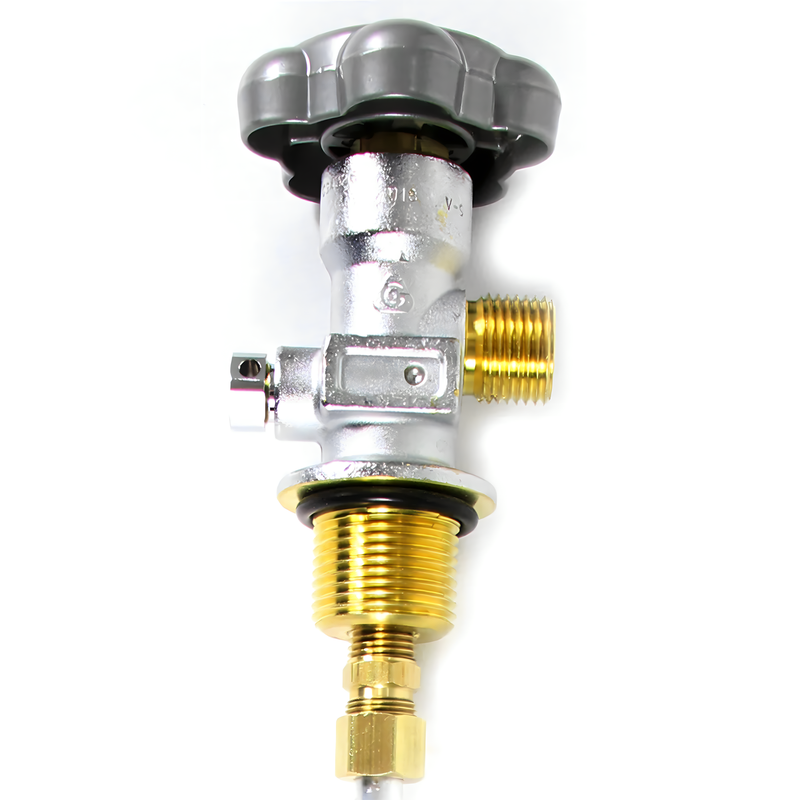

X-Series 10lb Bottle Valve - 10lb
- Flows up to 300HP_x000D_
- .169" orifice_x000D_
- For 10lb Nitrous Bottles_x000D_
- Forged Brass Construction_x000D_
- Chromium Plated
10lb Bottle Valve with Siphon Tube - X-Series bottle valves flow up to 300HP of nitrous through the .169" orifice. The 90° valve does not feature any gauge or accessory ports. This valve does have a port for a NHRA valve to meet NHRA regulations. The included siphon tube is custom cut and bent for use in a 10lb nitrous bottle.
_x000D_ _x000D_
Solid Construction - Each X-Series bottle valve is made from forged brass and then chromium plated. The solid brass stem features a polyamide seat for a positive seal.
_x000D_ _x000D_Ergonomic Hand wheel - This valve has a cast aluminum hand wheel with rounded edges so opening and closing the valve is easy and comfortable.
_x000D_ _x000D_Compatible Nipple and NHRA Fitting - The correct bottle nipple for the X-Series Bottle Valve is 00-34000 for -4AN and 00-34010 for -6AN. Both nipples need the 00-34020 retaining nut. The correct NHRA Blow Down Tube Fitting for the X-Series Valve is 00-35001.
