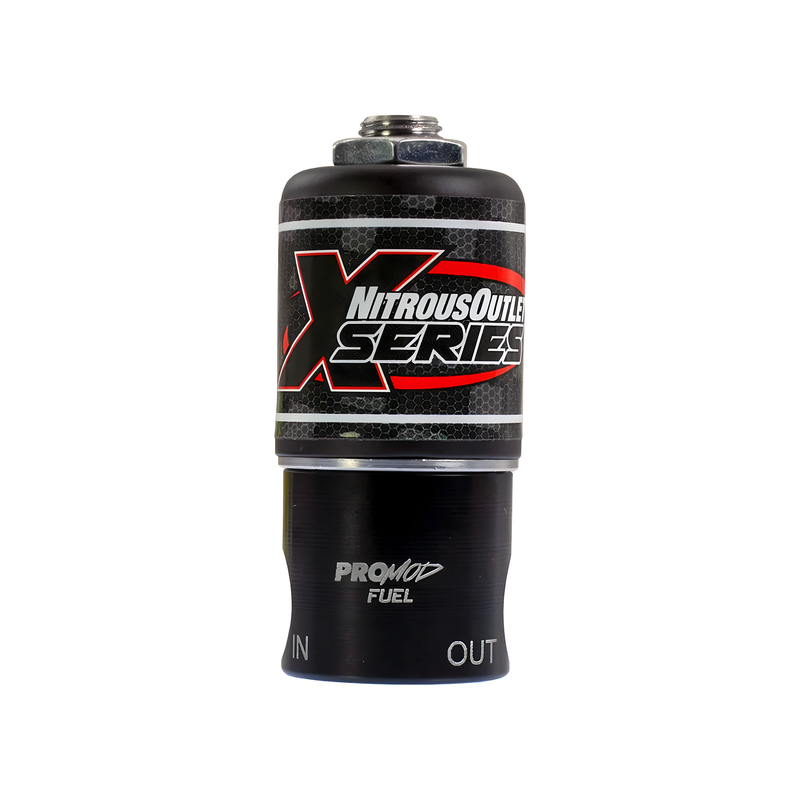

X-Series .155 Fuel Solenoid - Aluminum Base

• .155" Orifice
• 200HP Max Flow
• 6061 Aluminum Body
• Sleek Matte Black Finish
• 1/8" NPT Inlet and Outlet
• 10 Amp Draw

Two Port Design:
This X-Series Fuel Solenoid feature a 2-port design - inlet and outlet. The inlet port is 1/8"NPT thread with a coarse screen filter to keep larger debris from entering the solenoid. The inlet port is clearly marked on the solenoid body with a laser etched IN. The .155" orifice outlet port is located on the opposite side of the solenoid and has 1/8"NPT threads. The outlet port is clearly marked on the solenoid body with a laser etched OUT. Seal all fittings screwed in to the solenoid body using blue Loctite 246.

Sleek Matte Black Body:
T6061 Billet Aluminum - That's what the X-Series Fuel Solenoid Bases are precision CNC machined from. They are then anodized black and laser etched. Next in are the piston, return spring, and steel tower. Because of the aluminum base, we utilize a steel washer to maintain superior magnetics and proper operation. On top of the washer goes the heavy-duty epoxy encapsulated coil. Finally, the matte black powder coated steel can completes the unit and is topped of with one of our attractive X-Series solenoid stickers.

Light Weight and Max Performance:
The coil draws only 10amps, so 12ga wire for power and ground will be sufficient. Finally, the .155" orifice is capable of flowing up to 200 horsepower!
