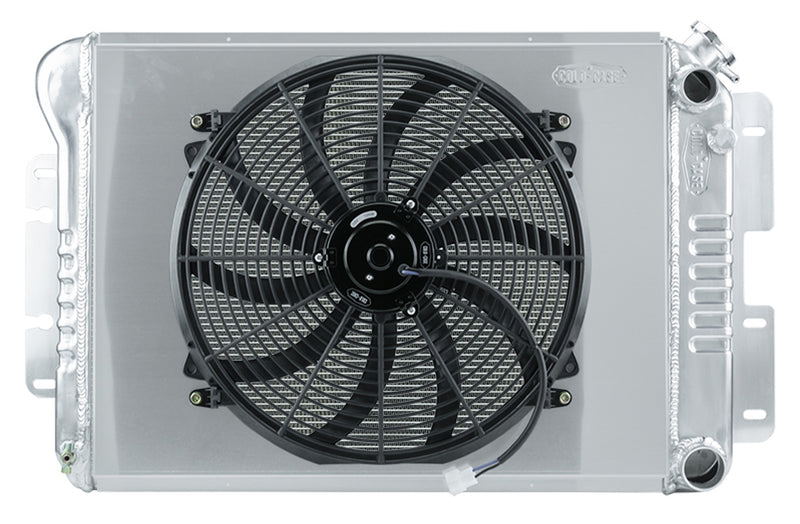

Cold Case 1967–1969 Camaro / Firebird LS Swap Aluminum Radiator Kit with 16-inch Fan | CHC547AK
Cold Case CHC547AK — 1967–1969 Camaro / Firebird LS Swap Aluminum Radiator Kit with 16-inch Fan.
Application and installation
- For an LS-swapped 1967–1969 Camaro or Firebird. Uses a dual-flow arrangement and a separate transmission cooler. Confirm bracket mounting and hose routing for any Nova conversion.
Construction
- TIG-welded aluminum construction.
- Pressure-tested by the manufacturer.
- Polished tanks with original-style detailing.
Specifications
| Core Height | 16.85 in |
|---|---|
| Core Width | 23 in |
| Overall Height | 19 in |
| Overall Width | 30 in |
| Overall Thickness | 7.25 in |
| Upper Hose | 1.5 in |
| Lower Hose | 1.5 in |
| Core tube configuration | 2 rows, 1.25 in tubes |
Before ordering, compare the radiator mounts, core and overall dimensions, hose positions, transmission-cooler connections and available fan-to-engine clearance with your vehicle. Engine, transmission, air-conditioning and conversion details can affect compatibility.
Manufacturer part number: CHC547AK. View Cold Case application details.
