Cold Case 1967–1970 Ford Mustang Big Block 24-inch Aluminum Radiator Manual | FOM588

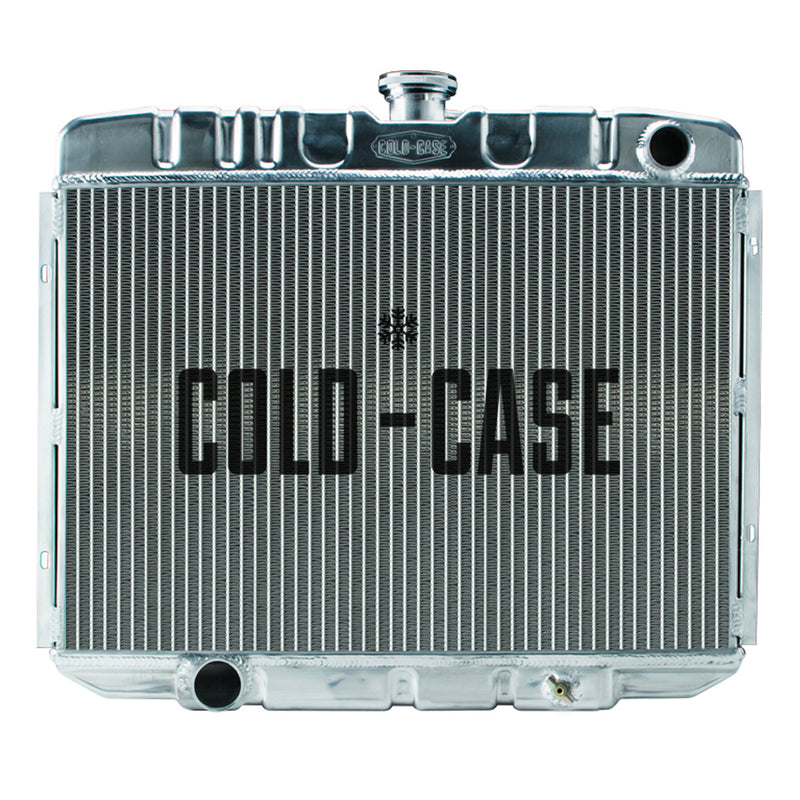

Cold Case FOM588 — 1967–1970 Ford Mustang Big Block 24-inch Aluminum Radiator Manual.
Application and installation
- For 1967–1970 Mustang big-block applications with a 24-inch radiator, right-side inlet and left-side outlet. Cold Case also lists 1967–1970 Cougar.
- Converting a 20-inch installation to this 24-inch layout requires the appropriate upper/lower brackets and rubber insulators, plus removal of the radiator-support side shields.
Construction
- TIG-welded aluminum construction.
- Pressure-tested by the manufacturer.
- Polished tanks with original-style detailing.
Specifications
| Core Height | 16 in |
|---|---|
| Core Width | 24 in |
| Overall Width | 25 in |
| Overall Thickness | 3 in |
| Upper Hose | 1.5 in |
| Lower Hose | 1.75 in |
| Core tube configuration | 2 rows, 1 in tubes |
Before ordering, compare the radiator mounts, core and overall dimensions, hose positions, transmission-cooler connections and available fan-to-engine clearance with your vehicle. Engine, transmission, air-conditioning and conversion details can affect compatibility.
Some dimensions differ between the manufacturer’s product description and specification table. Those disputed measurements are omitted here; confirm them with Cold Case before ordering if they determine installation clearance.
Manufacturer part number: FOM588. View Cold Case application details.
