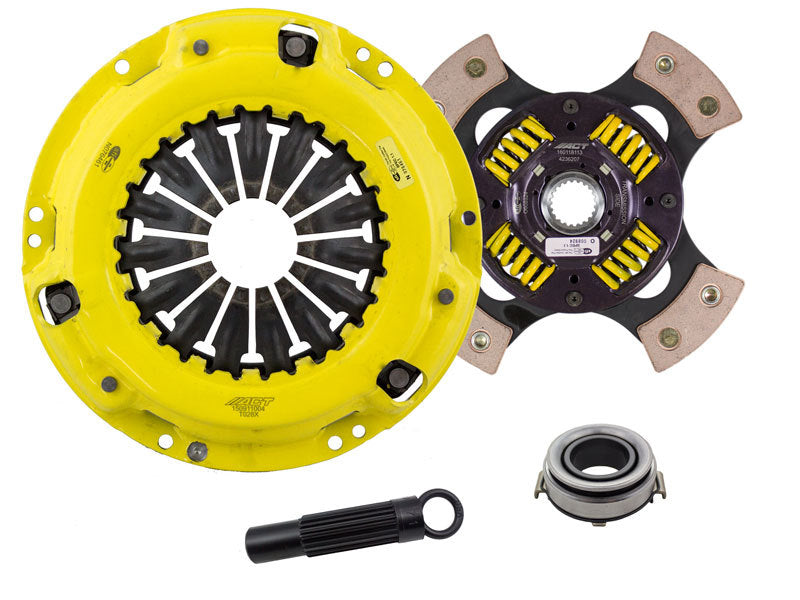

ACT 2006 Scion tC XT/Race Sprung 4 Pad Clutch Kit

TC7-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2006-2010	Scion	tC	Base
2007-2008	Scion	tC	Spec
2008-2015	Scion	xB	Base
2009-2010	Toyota	Corolla	XRS
2009-2013	Toyota	Matrix	S
2009-2010	Toyota	Matrix	XRS
