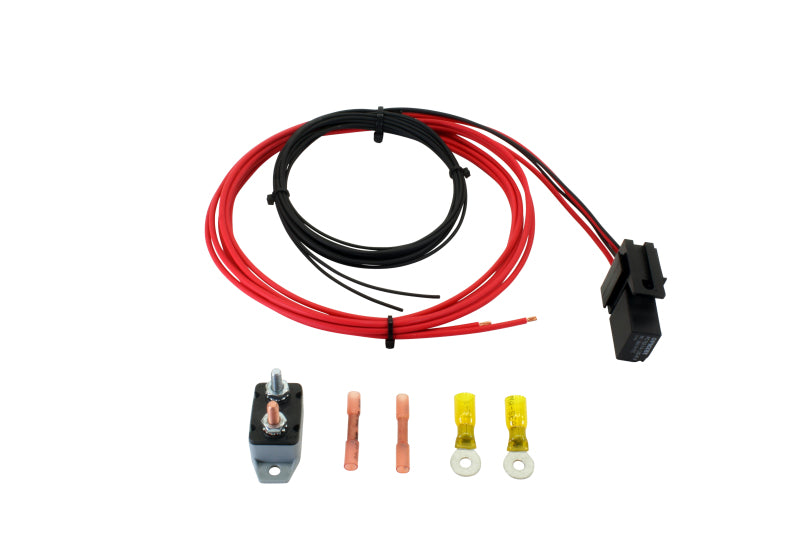

AEM 20 Amp Relay Wiring Kit
Both 30 and 20 amp relay fuel pump wiring kits and harnesses have auto-reset style integrated circuit boards that help ensure any electrical shorts are remedied. Each kit includes a pre-wired relay receptacle with 80" of red wire for activation (12 gauge for 20-Amp Relay Kit and 10 gauge for 30-Amp Relay Kit) and 80" of 10 gauge black wire for a high current ground circuit, an Amp relay, circuit breaker with mounting tab, crimp terminals and mounting hardware.
WarrantyInstallation Instructions
- Ensures correct current and voltage at electrical accessories for optimum performance
- Pre-wired relay receptacles with 80" of activation and ground wire
- Auto-reset style integrated circuit breaker with mounting tab
- 20 Amp Circuit Breaker, Auto Reset, Splash and Dust Proof
- Relay Socket with 12 Gauge Power Wires 80" Length
- Terminals and mounting hardware included
- 10-12 Gauge Ring Terminals
- Red Butt Connectors
- 20-Amp relay
- 30 Amp Relay
