APR 17-20 Audi RS3 980cc (MPI) Multiport Injection Injector Kit
by APR
Special Order
Save 20%
Original price
$142.95
Original price
$142.95
-
Original price
$142.95
Original price
$142.95
Current price
$114.25
$114.25
-
$114.25
Current price
$114.25

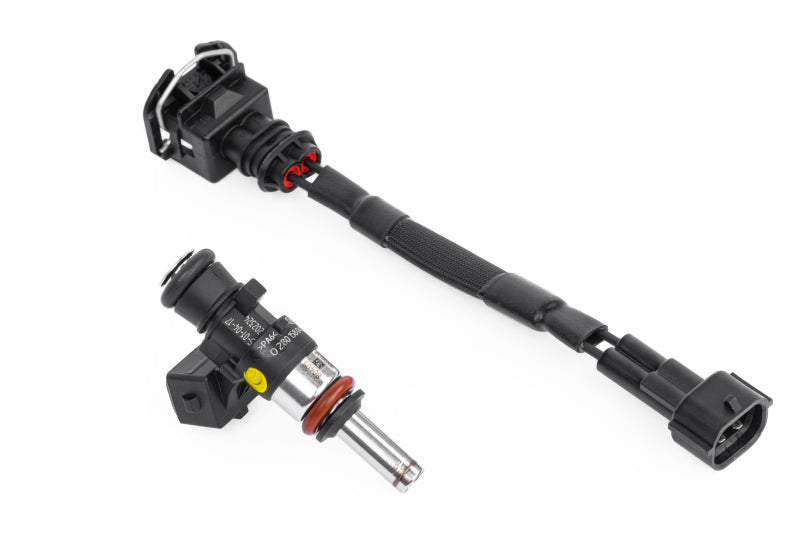

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.
Installation Instructions- 30° single cone spray angle with 0° bent angle and 0° gamma angle
- Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported
- Supports up to 8 bar of use in motorsport configurations
- 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)

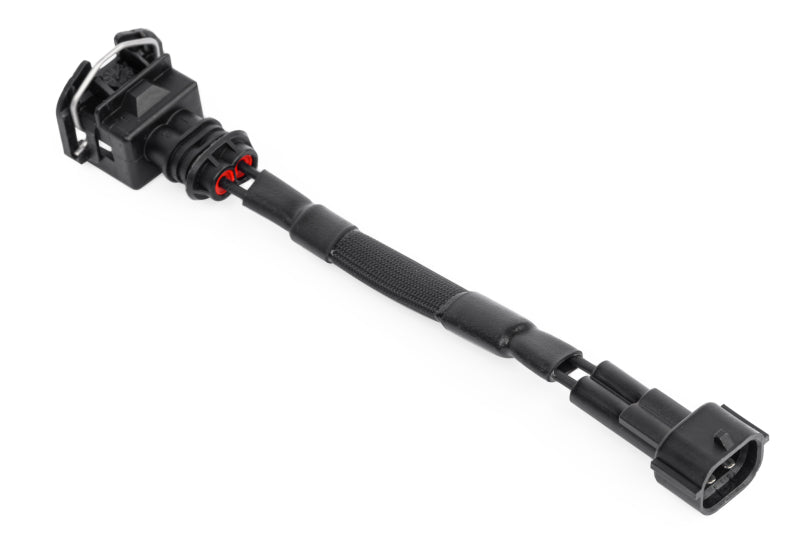

- 150 mm long harness with braided wire sheathing

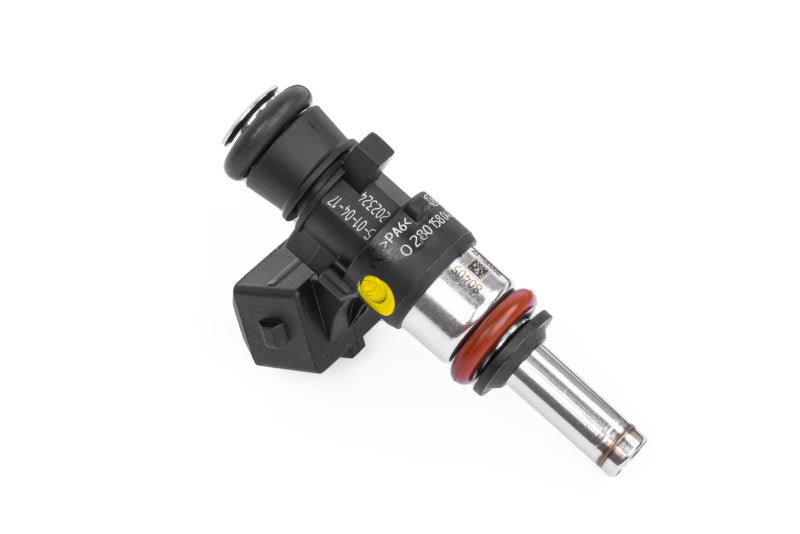

- Bosch EV 14 CKxT MPI injector (0280 158 040)
- APR Bosch Jetronic to OEM 2 pin harness
- ECU software required for use

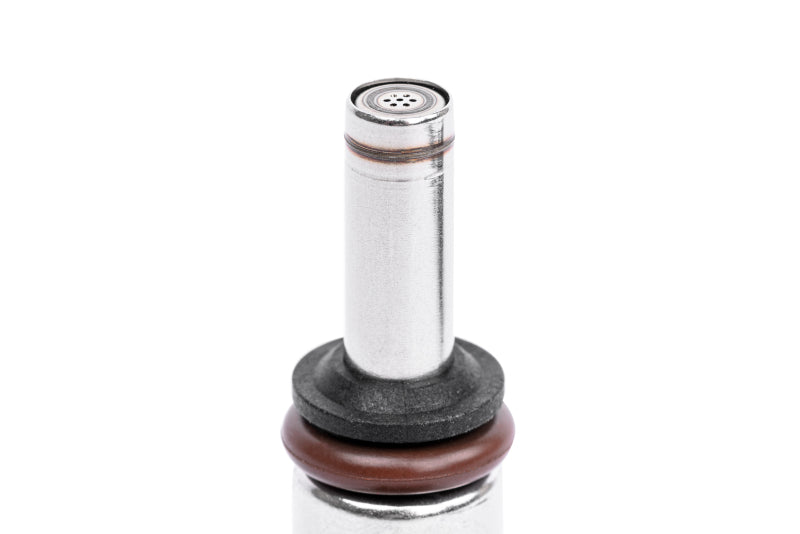

- 24mm extended tip nozzle
- E85 and M100 compatible
- 12 ohm coil resistance
- 33.6mm compact body
- Top-feed injector
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017-2020,2022-2026 | Audi | RS3 | Base |
| 2018-2022 | Audi | TT RS Quattro | Base |
| 2022 | Audi | TT RS Quattro | Heritage Edition |
