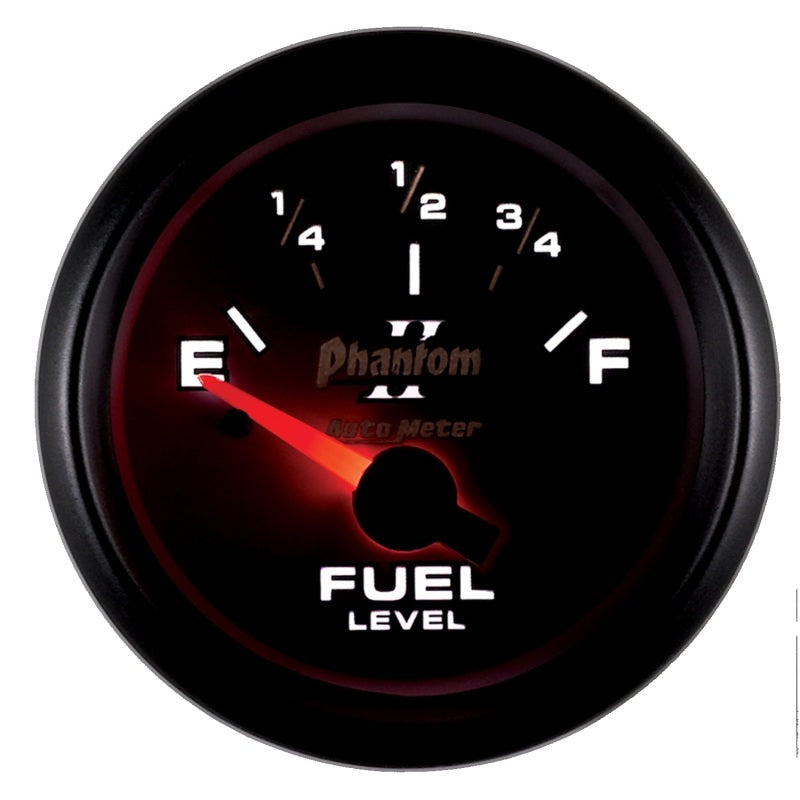

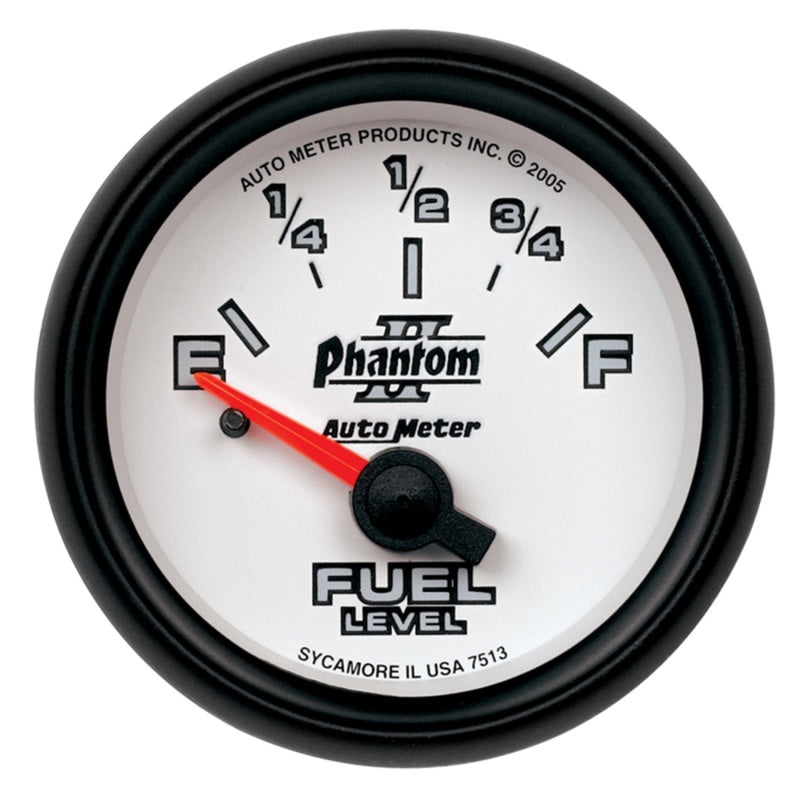

Autometer Phantom 2-1/16in 0-90 OHM Fuel Level Gauge

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

• AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
• Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• User definable resistance setting programmable anywhere between 0-280 ohms
