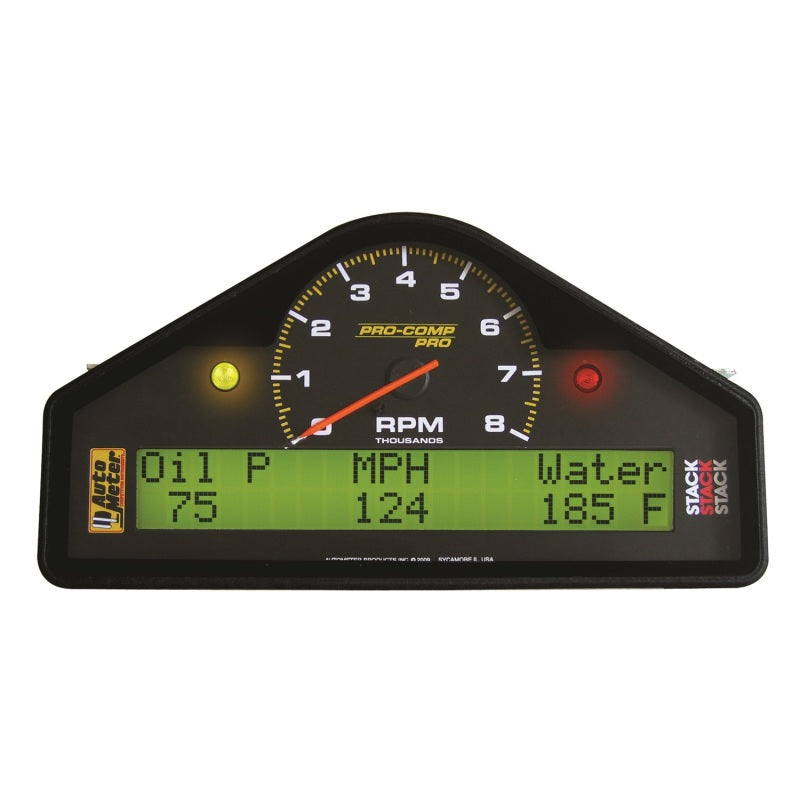

AutoMeter Street Dash Display 8K RPM/MPH/Oilp/Oilt/Wtmp/Volt Pro-Comp

The AutoMeter Street display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information.

• Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, Fuel Level, with an option to add Fuel Pressure separately.
• Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
• Display features digital values for vehicle parameters and configurable text warning messages
• Optional shift light output, single stage or progressive shift light
• Includes oil pressure, water temperature, oil temperature sensors
• Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
• Configurable for engines from 1-12 cylinders
• Programmable Speed and Fuel Level inputs
• Built-in warning and low fuel LEDs
