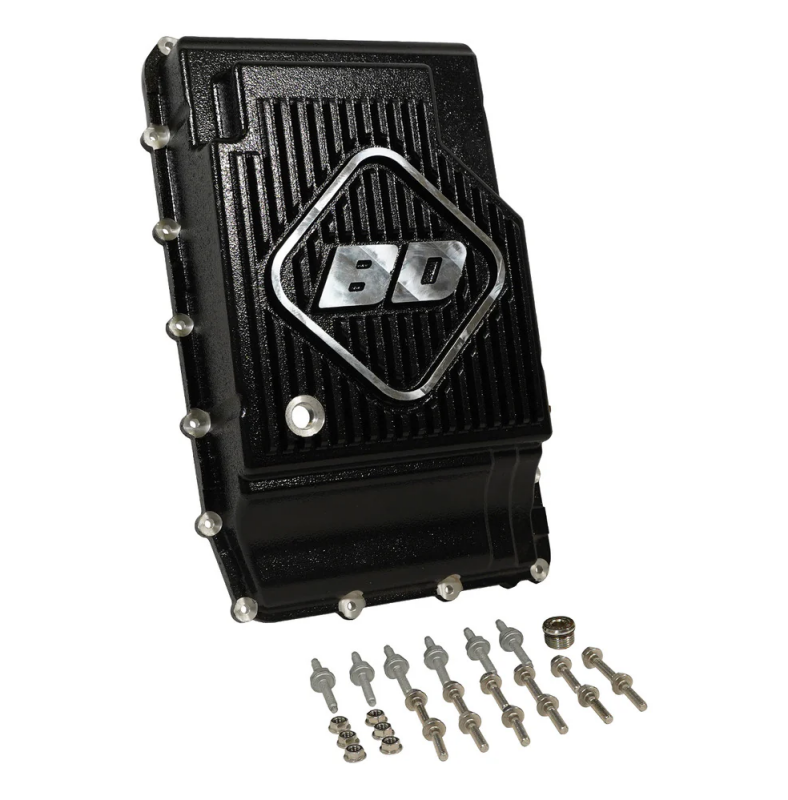

BD Diesel 17-24 Ford 10R60/10R80 Deep Sump Transmission Pan Kit
High volumes of cool oil equate to long transmission life. BD's transmission pans increase oil capacity, while aluminum construction and heat-dissipating fins keep the temperature down. As an added bonus, the pan's increased rigidity prevents case twisting. Kit includes screws, nuts, temperature port plug, magnetic drain plug, OEM gasket, and OEM heat shield studs.
Installation InstructionsInstallation Instructions
- Heavy duty construction with durable powder coat
- Heavy Duty Construction w/Durable Powder Coat
- Comes with OEM gasket and heat shield studs
- Comes w/OEM Gasket And Heat Shield Studs
- Not compatible with Hybrid powertrain
- Retains Factory Heat Shields
- Adds Temperature Sender Plug
- Includes Magnetic Drain Plug
- DOES NOT FIT F-150 RAPTOR
- Adds 2.1 Quarts Of Fluid
- Increases Pan Volume
- Cooling Fins
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2024 | Ford | Bronco | Badlands |
| 2021-2023 | Ford | Bronco | Base |
| 2021-2024 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2022-2024 | Ford | Bronco | Everglades |
| 2021 | Ford | Bronco | First Edition |
| 2023-2024 | Ford | Bronco | Heritage Edition |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition |
| 2021-2024 | Ford | Bronco | Outer Banks |
| 2022-2024 | Ford | Bronco | Raptor |
| 2021-2024 | Ford | Bronco | Wildtrak |
| 2020-2024 | Ford | Explorer | Base |
| 2021-2024 | Ford | Explorer | King Ranch |
| 2020-2024 | Ford | Explorer | Limited |
| 2020-2023 | Ford | Explorer | Limited Hybrid |
| 2020-2024 | Ford | Explorer | Platinum |
| 2021-2023 | Ford | Explorer | Platinum Hybrid |
| 2020-2024 | Ford | Explorer | ST |
| 2022-2024 | Ford | Explorer | ST-Line |
| 2021-2024 | Ford | Explorer | Timberline |
| 2020-2024 | Ford | Explorer | XLT |
| 2017-2024 | Ford | F-150 | King Ranch |
| 2017-2024 | Ford | F-150 | Lariat |
| 2017-2023 | Ford | F-150 | Limited |
| 2017-2024 | Ford | F-150 | Platinum |
| 2018-2024 | Ford | F-150 | Police Responder |
| 2017-2024 | Ford | F-150 | Raptor |
| 2017-2024 | Ford | F-150 | SSV |
| 2024 | Ford | F-150 | STX |
| 2021-2024 | Ford | F-150 | Tremor |
| 2017-2024 | Ford | F-150 | XL |
| 2017-2024 | Ford | F-150 | XLT |
| 2019-2024 | Ford | Ranger | Lariat |
| 2019-2024 | Ford | Ranger | XL |
| 2019-2024 | Ford | Ranger | XLT |
