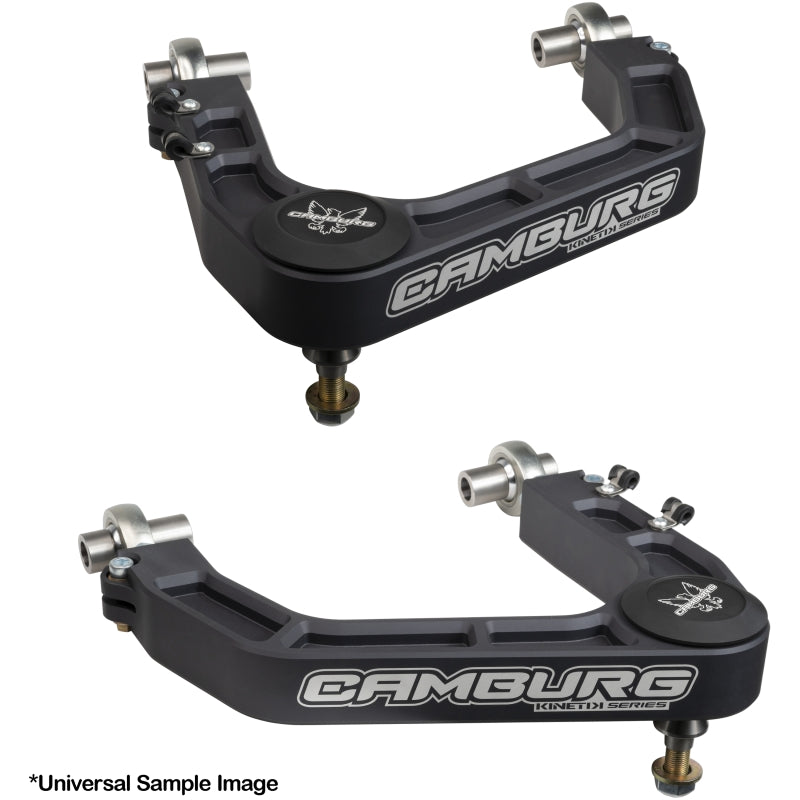

Camburg 08-21 Toyota Landcruiser 200 Series KINETIK V2 Performance Billet Uniball Upper Arms
Our arms are meticulously designed and refined, meeting high standards. They are CNC machined from aerospace quality 6061 billet aluminum, bead blasted, anodized gun metal gray, and laser etched with our logo. We use a larger FK 1.25" uniball with a PTFE liner for increased strength and mis-alignment, allowing for maximum wheel travel. Made in the USA, our arms are superior to cheaper imports. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel. No drilling or modifications are needed. The 1.25" uniball allows for a low profile press-on cap to resist the elements. We use larger and stronger FK 7/8" chromoly heim joints for additional camber and caster adjustment, eliminating flexing/deflection under hard use and braking. AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut, ensures secure heim joint usage. Our new V2 design increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. The arms are compatible with 1-3" of lift and designed for use with King 3.0 and FOX 2.5 DSC coilovers.
Installation Instructions- Eliminates weak factory ball-joints
- Increases usable wheel travel
- Corrects camber and caster
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008-2011,2013-2021 | Toyota | Land Cruiser | Base |
| 2020-2021 | Toyota | Land Cruiser | Heritage Edition |
