Configure a Custom BTR LS Trinity Intake
Build a custom Brian Tooley Racing Trinity intake for a Gen III/IV GM LS engine combination. Select the plenum and runner pair that match the installed cylinder-head port design. Assembly is required; this is not a universal bolt-on intake.

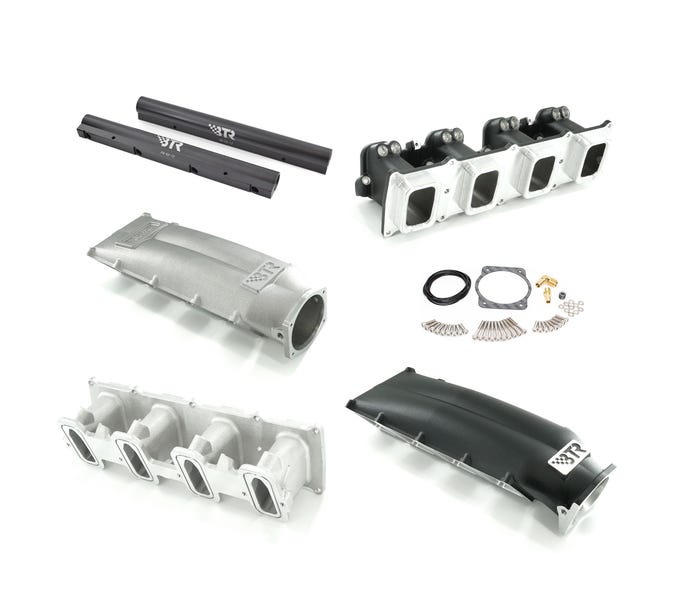

Required package contents
- One selected BTR plenum
- Two matching runner sections
- One TRHK LS installation hardware kit
- Eight matching intake-port O-rings: #146 for LS3/L99 runners, #149 for LS1/LS2/LS6 cathedral-port or LS7 runners
- Fuel rails only when selected
Cathedral-port, LS3 rectangle-port and LS7 runner choices are not interchangeable. Match the actual heads on modified and swapped engines, not just the original vehicle badge. Verify throttle-body pattern, injectors, fuel rails, hood clearance and calibration. Injectors, throttle body, crossover plumbing and tuning are sold separately. Burst-panel-provision plenums do not include the panel, frame or duct.
Availability
On September 22, 2026 BTR showed seven #149 port seals, fewer than the eight needed for a complete cathedral-port or LS7 kit, and one TRR-7-BLK-V2 runner, fewer than the required pair. These configurations may need partial backorders. Confirm current lead time before scheduling installation; no guaranteed ship date is implied.
Natural cast components can vary in shade. Custom combinations should be compared with complete off-the-shelf intakes for the required contents and final price.
Rail selection and installation
Single-injector runners use FRK-02 or FRK-02-12 rails. Dual-injector runners use FRK-2I rails; standard single-injector rails are not a substitute. Selecting No rails requires you to supply the matching rail system. FRK-02-12 and FRK-2I fuel-line fittings are not included. Dual-injector runner clearance limits injector body diameter to 0.8125 inch. LS truck accessory drives do not clear this Trinity intake; confirm a compatible accessory layout before ordering.
Shipping estimate
For checkout estimates, this custom component package uses a provisional 30 × 16 × 16 inch carton with 1 lb carton tare. Estimated contents weight is 30.5 lb without rails, 35.5 lb with FRK-02, or 35 lb with FRK-02-12 / FRK-2I. This combines BTR catalog component weights with a small seal/packing allowance, not a manufacturer-certified packed measurement. Final packing may differ.
Vehicle references and required intake selection
Vehicle search matches this package family, not every option. Select the manifold that matches the installed cylinder-head ports. These are performance installations requiring the clearance, accessory-drive, injector and calibration checks above.
- 2010–2015 Camaro SS (LS3/L99), 2008–2013 Corvette Base and 2010–2013 Corvette Grand Sport (LS3), 2008–2009 Pontiac G8 GT (L76), and 2009 G8 GXP (LS3): select LS3/L99 square-port runners.
- 2006–2013 Corvette Z06, 2013 Corvette 427 Convertible, and 2014–2015 Camaro Z/28 (LS7): select LS7-specific runners.
- 1997–2004 Corvette Base (LS1), 2005–2007 Corvette Base (LS2), 2001–2004 Corvette Z06 (LS6), 1998–2002 Camaro Z28/SS and Firebird Formula/Trans Am (LS1), 2004–2006 Pontiac GTO (LS1/LS2), and 2004–2007 Cadillac CTS-V (LS6/LS2): select LS1/LS2/LS6 cathedral-port runners with compatible factory-style heads. Do not select cathedral-port runners for LS3/L99/LS7 heads. Vehicle listings identify the engine family; hood, throttle-body, fuel-system and accessory-drive compatibility still require installation checks.
V6 models, stock 2014-and-newer Corvette LT engines, and other Gen V LT applications are not covered by these LS intake choices. Modified or swapped vehicles must be evaluated by their installed engine, heads, accessories and available space.
Compare package choices
If you do not need a mixed plenum/runner combination, compare the BTR LS Trinity intake and matching fuel-rail package. Compare the selected head-port style, injector arrangement, included rails and total price—not just the starting price. This custom kit supplies individual components and requires assembly.
