Ford Small-Block ProCharger F-3R-130 / F-3R-136 Cog Race Kit

Ford Small-Block ProCharger F-3R-130 / F-3R-136 Cog Race Kit for custom carbureted or aftermarket-EFI Windsor/Yates small-block Ford race builds using the 1985–1993 Mustang accessory arrangement. These are engine/accessory requirements, not blanket vehicle fitment.

Race-kit specification

• Catalog family: 1FX224-F3R-spec
• Standard-mount configuration with 14 mm-pitch, 55 mm-wide cog drive
• ProRace bypass valve included; choose red or black
• Non-intercooled kit: no intercooler or intercooler tubing supplied
• No carb hat included; optional Competition 4150 hat available separately

Supercharger and finish choices

Select F-3R-130 or F-3R-136 at the same catalog kit price. Satin is standard; black adds $650 and polished adds $750 for the 12-inch housing. These choices are included in the selected variant price. Supercharger bracket finish and other add-ons are selected separately.

Fitment and installation

Specify actual deck height, Windsor or Yates cylinder heads, chassis, induction, accessory arrangement, crank/balancer details and target boost/RPM. Confirm drive alignment and space for the supercharger, belt, hood and custom plumbing. Carbureted installations require a compatible blow-through Holley 4150-style or similar carburetor and suitable fuel-system upgrades, supplied separately. Fuel delivery, charge cooling and calibration must suit the actual power target; no horsepower or boost output is guaranteed.

A satin 3FAAT-002 alternator relocation kit is optional at $355. An alternator-with-power-steering relocation package is not offered.

This kit is manufacturer special order, requiring the appropriate order form and non-refundable deposit. Confirm terms and lead time with SMGspeed before order release.

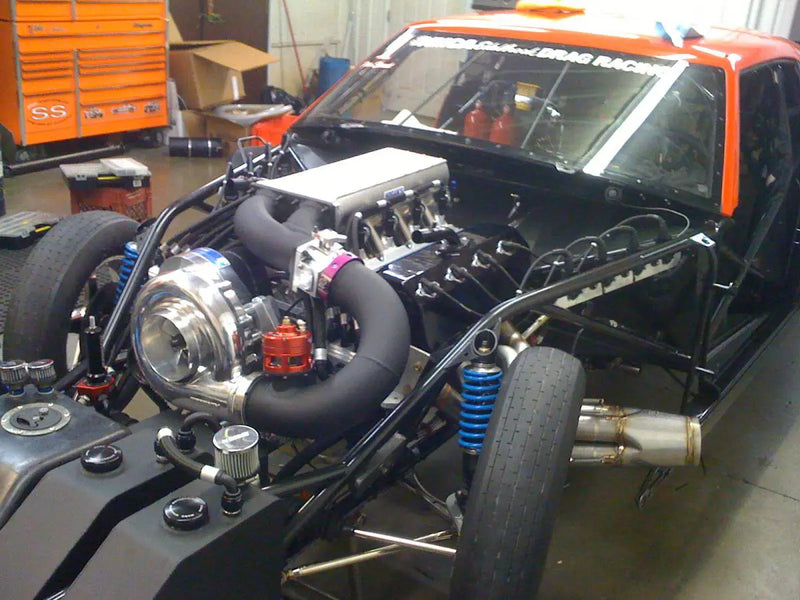

Manufacturer F-3 race-installation reference photo shows a complete race vehicle, optional polished finish and supporting equipment. It is not an exact parts-layout or mounting-orientation image of this kit; only the selected kit and purchased options are supplied.
