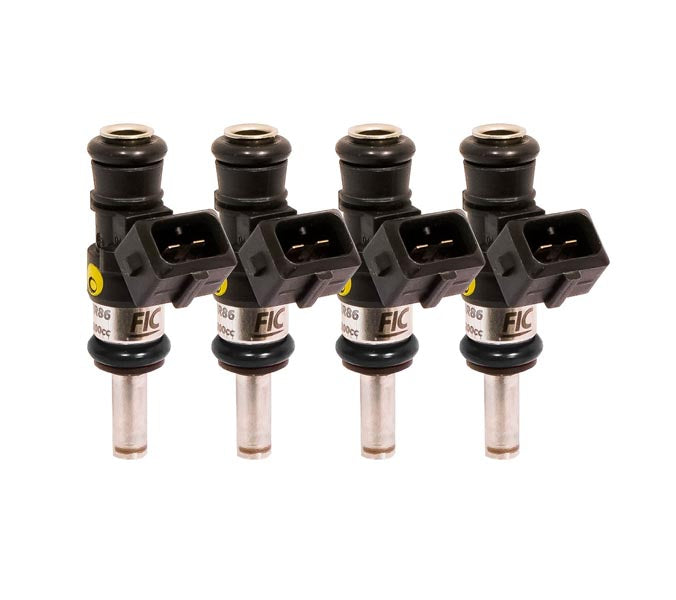

FIC 1200cc Custom Injector Set, 4 Cylinders | ISC-1200H-4
Fuel Injector Clinic ISC-1200H-4 is a custom set of 4 1200cc/min fuel injectors. Confirm the injector height, O-ring diameters, fuel rail and electrical connection with SMGspeed before ordering.
Configuration and dimensions
- Manufacturer catalog number: ISC-1200H-4
- Set quantity: 4 injectors
- Rated flow: 1200cc/min per injector
- FIC-listed height choices (manufacturer notation): 64mm(60mm), 53mm(48mm), 38mm(34mm)
- Top O-ring diameter choices: 11mm, 14mm
- Bottom O-ring diameter choices: 14mm, 15mm, 16mm, 11mm, 21mm
This is a configurable injector set. These dimensions are alternatives; the set must be built to the agreed configuration. Vehicle compatibility depends on the complete injector and fuel-system setup.
Included components and specifications
Includes solder-in pigtails.
Flow rated at 43.5 psi (3 bar), 90°F fuel temperature, using CF-16B calibration fluid.
Individually serial-numbered injectors matched using FIC Data Match Technology, with flow and latency results supplied on the Data Match Sheet.
FIC provides a lifetime warranty for failures caused by original manufacturing defects.
