ICON 2005+ Ford Super Duty Radius Arm System

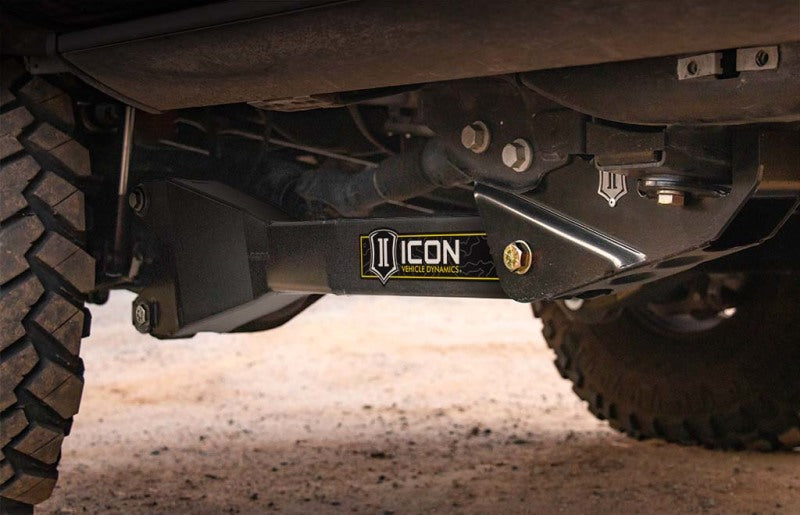

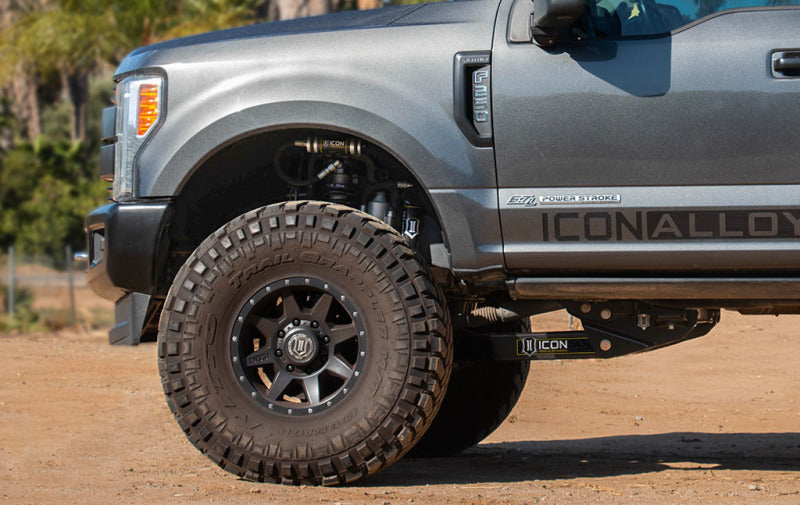

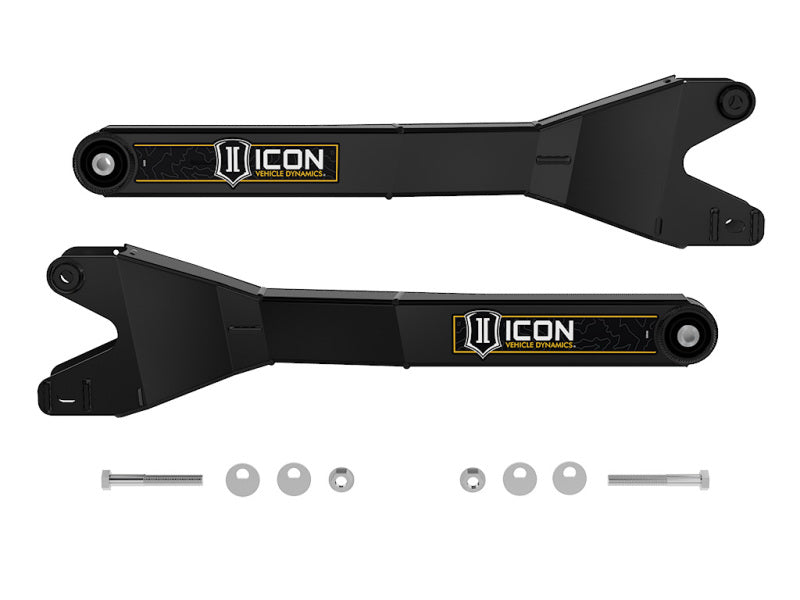

The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Installation Instructions- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
- Replaceable sealed pivot bushing provides maintenance free operation
- Built in caster adjustment for optimized return to center
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Fully boxed design
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2010 | Ford | F-250 Super Duty | Cabela's |
| 2008-2009 | Ford | F-250 Super Duty | FX4 |
| 2005-2010 | Ford | F-250 Super Duty | Harley-Davidson Edition |
| 2005-2022 | Ford | F-250 Super Duty | King Ranch |
| 2005-2022 | Ford | F-250 Super Duty | Lariat |
| 2018-2022 | Ford | F-250 Super Duty | Limited |
| 2013-2022 | Ford | F-250 Super Duty | Platinum |
| 2005-2022 | Ford | F-250 Super Duty | XL |
| 2005-2022 | Ford | F-250 Super Duty | XLT |
| 2009-2010 | Ford | F-350 Super Duty | Cabela's |
| 2008-2009 | Ford | F-350 Super Duty | FX4 |
| 2005-2010 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2005-2022 | Ford | F-350 Super Duty | King Ranch |
| 2005-2022 | Ford | F-350 Super Duty | Lariat |
| 2018-2022 | Ford | F-350 Super Duty | Limited |
| 2013-2022 | Ford | F-350 Super Duty | Platinum |
| 2005-2022 | Ford | F-350 Super Duty | XL |
| 2005-2022 | Ford | F-350 Super Duty | XLT |
