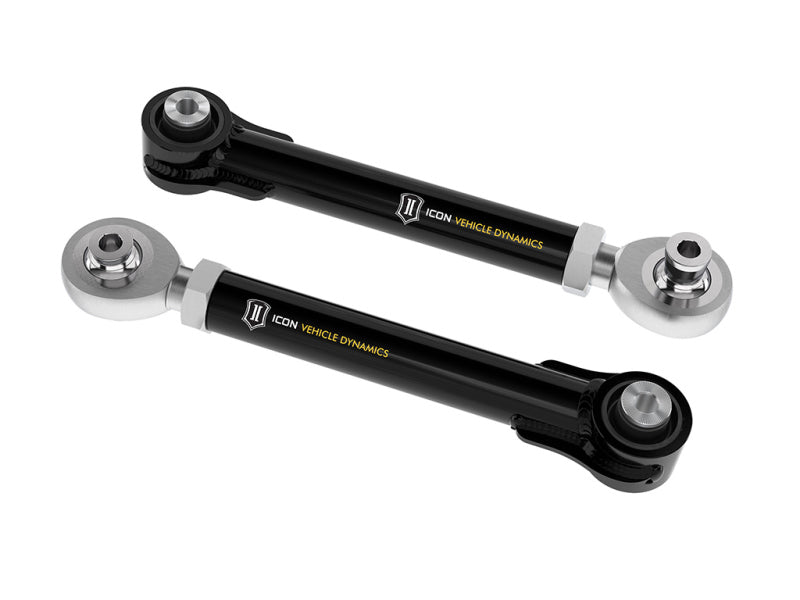

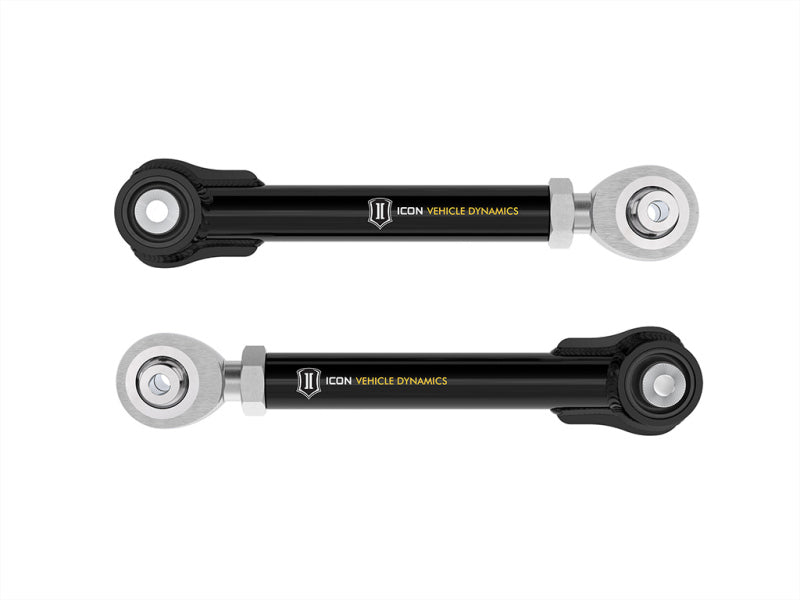

ICON 2021+ Ford Bronco Tubular Rear Upper Adj Link Kit
The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2021-2023 Ford Bronco to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength with CNC machined threaded ends and bushing housings and feature a multi-stage black powder coat finish. These rear upper links are designed specifically for improved fuel tank clearance at maximum articulation and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
WhitepaperInstallation Instructions
- CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
- Multi durometer bushings for noise free operation and maximum angularity
- Fabricated components covered under ICON's Limited Lifetime Warranty
- Designed for increased fuel tank clearance for maximum articulation
- Adjustable for various lift heights & driveline angles
- Improves link angles to help free rear suspension bind
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2023 | Ford | Bronco | Badlands |
| 2021-2023 | Ford | Bronco | Base |
| 2021-2023 | Ford | Bronco | Big Bend |
| 2021-2023 | Ford | Bronco | Black Diamond |
| 2022-2023 | Ford | Bronco | Everglades |
| 2021 | Ford | Bronco | First Edition |
| 2023 | Ford | Bronco | Heritage Edition |
| 2023 | Ford | Bronco | Heritage Limited Edition |
| 2021-2023 | Ford | Bronco | Outer Banks |
| 2021-2023 | Ford | Bronco | Wildtrak |
