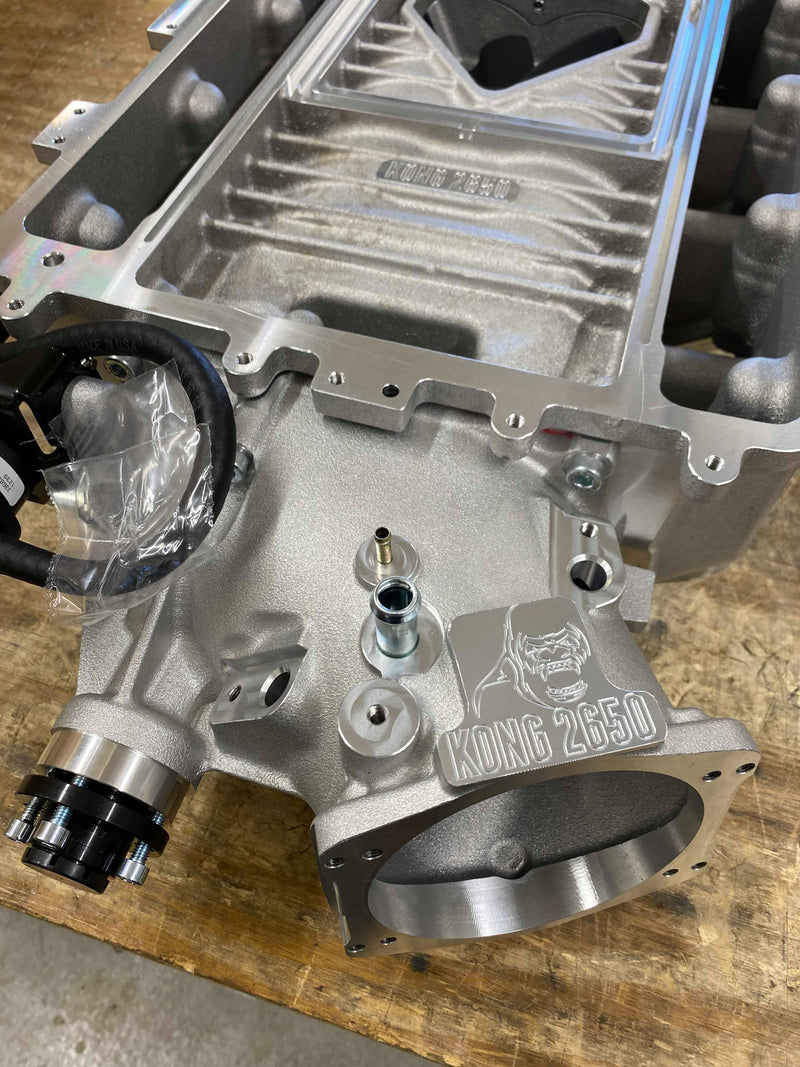

Kong Performance LSA TVS2650 Supercharger

Kong Performance LSA TVS2650 Supercharger

The Kong LSA TVS2650 is a high-output, stock-height supercharger upgrade for LS combinations using an LSA belt drive and compatible LS3, LSA, or LS9-style cylinder heads. Its Eaton TVS2650 rotor pack uses a high-twist four-lobe design and provides approximately 40 percent more rotor displacement than the factory LSA TVS1900.

Core features

• Stock-height architecture designed to preserve normal hood-clearance expectations
• Eaton TVS2650 high-twist four-lobe rotor pack
• Compatible with LS-style throttle bodies up to 112 mm
• Machined O-ring manifold sealing
• Designed to accept compatible LSA- or LS9-style supercharger lids
• Compatible with LS engines using an LSA belt drive and appropriate LS3/LSA/LS9-style cylinder heads

Required components not included

The supercharger does not include a lid or intercooler assembly. It also requires a Kong LSA TVS2650-specific upper pulley selected for the vehicle, belt drive, fuel system, engine combination, and target power. Throttle body, intake, injectors, fueling, cooling components, calibration, and installation hardware beyond the supplied unit may be required.

Kong test example

Kong reports testing on a 418-cubic-inch LSA combination that produced 860 RWHP with a ported factory LSA supercharger and 2.55-inch upper pulley. A same-day change to the Kong LSA TVS2650 with a 3.0-inch pulley produced 1,003 RWHP with no other changes—approximately 140 additional RWHP while turning the replacement supercharger more slowly. This is a development example, not a guaranteed result.

Fitment and installation

This is a serious power-adder that requires professional installation and calibration. Verify belt alignment, pulley selection, hood and accessory clearance, fuel-system capacity, intercooler configuration, bypass operation, and calibration before use. Contact SMG to build the correct lid, pulley, throttle-body, fueling, cooling, and tuning package for your application.

Warranty

Kong advertises a one-year parts warranty on the TVS2650 supercharger. Disassembly or aftermarket porting can void warranty coverage. Warranty eligibility remains subject to Kong’s current terms, installation requirements, and inspection.

SMG ordering and fitment notes

This Kong Performance catalog item is supplied for the applications described above. Verify the exact vehicle, engine, supercharger, bolt pattern, finish, pulley ratio, and supporting hardware before ordering. Contact SMG before purchase when the combination is unusual or when the product requires machining, calibration, or another Kong component.

Processing and shipping

Processing occurs before shipping. Kong products may be special-order or vendor-fulfilled and can require additional handling time before carrier pickup. Expedited shipping changes transit time after shipment and does not shorten manufacturing, machining, or order processing. Any product-specific lead time or availability note above takes priority.

Installation responsibility

Performance components should be installed and calibrated by a qualified professional. The purchaser is responsible for verifying compatibility, safe operating limits, emissions legality, and suitability for the intended vehicle and use.
