KPM 2200HP Fuel System with PWM | 2014–2017 Chevrolet SS

A complete KPM in-tank fuel and PWM package designed to support high-output Chevrolet SS builds. The pre-programmed controller varies pump output with engine demand to reduce unnecessary current draw and fuel heating while supporting up to 2,200 crank horsepower.

Part Number

• KPMCOM2200PWM-P

Vehicle Fitment

• 2014–2017 Chevrolet SS

Not listed for Caprice PPV.

System Highlights

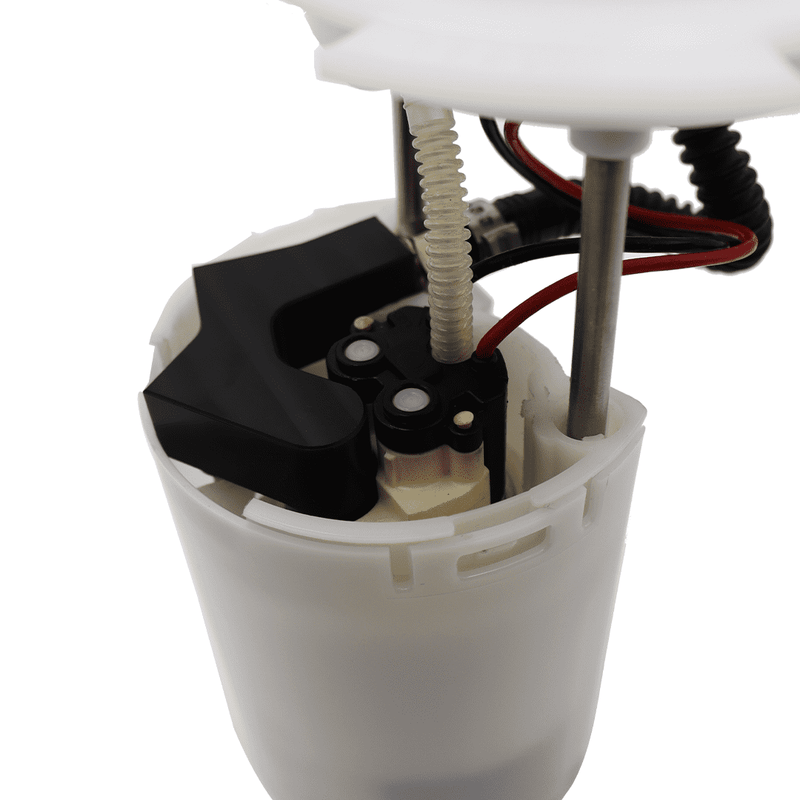

• Three Bosch Racing pumps across primary and secondary KPM modules
• KPM PWM fuel-module controller with fuel-pressure input
• Venturi refill system helps maintain fuel around the pumps
• Direct-supply configuration; no voltage booster or return-style conversion required
• Compatible with gasoline and ethanol fuels, including E85
• Direct-fit upgraded fuel lines and serviceable KPM 2200HP fuel filter

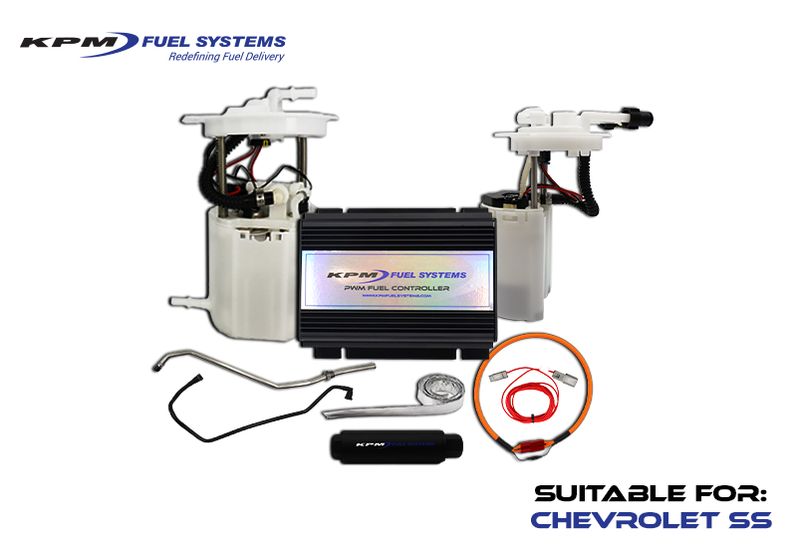

What’s Included

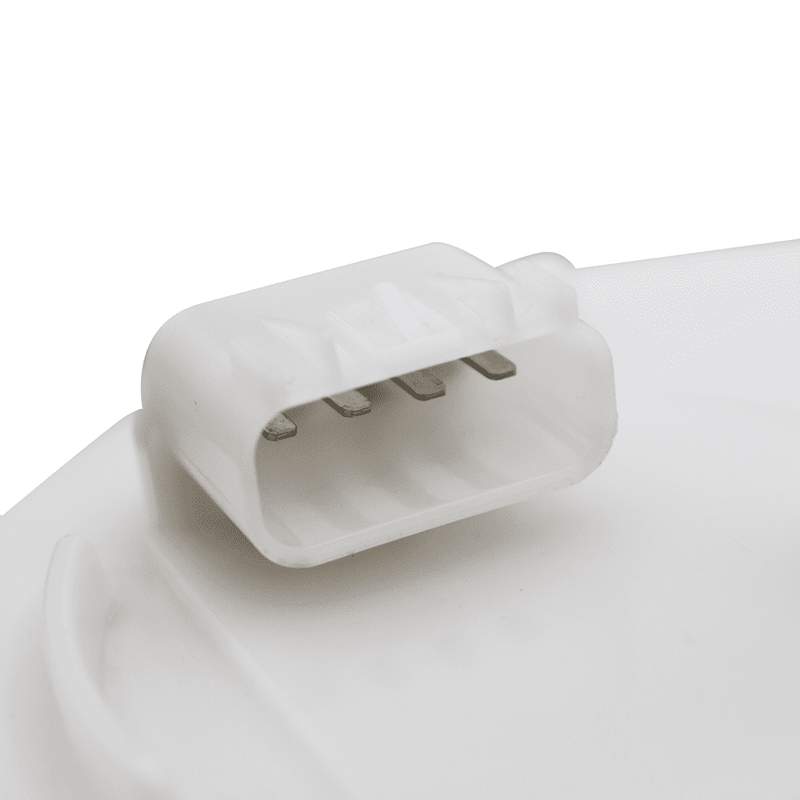

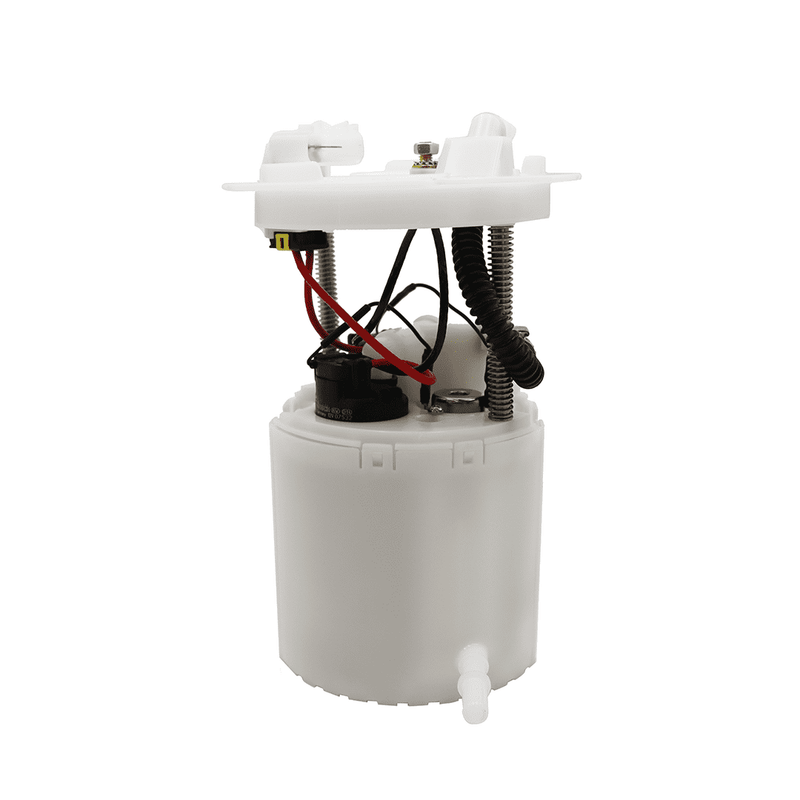

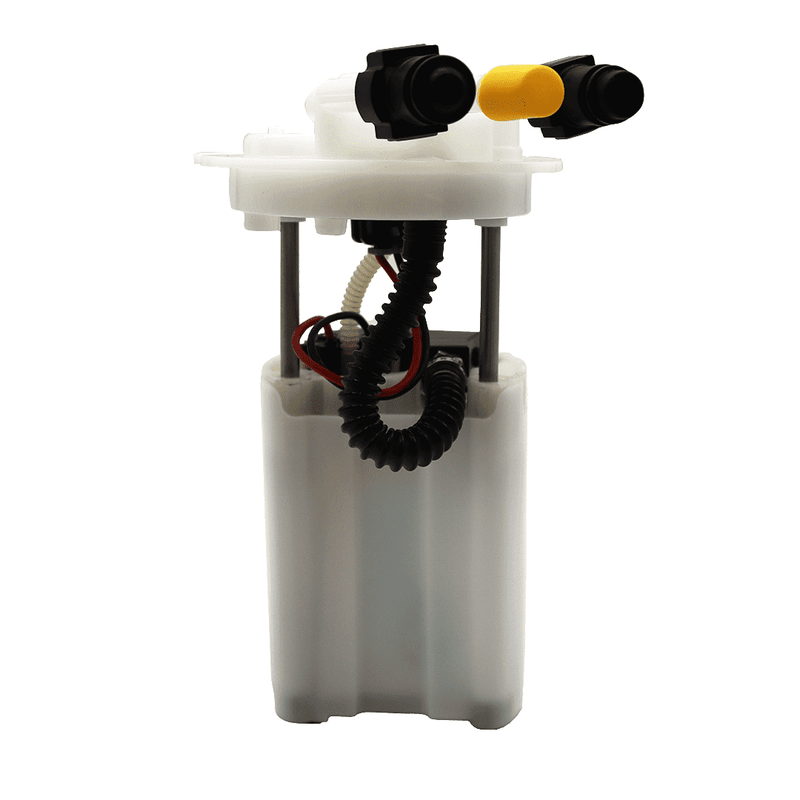

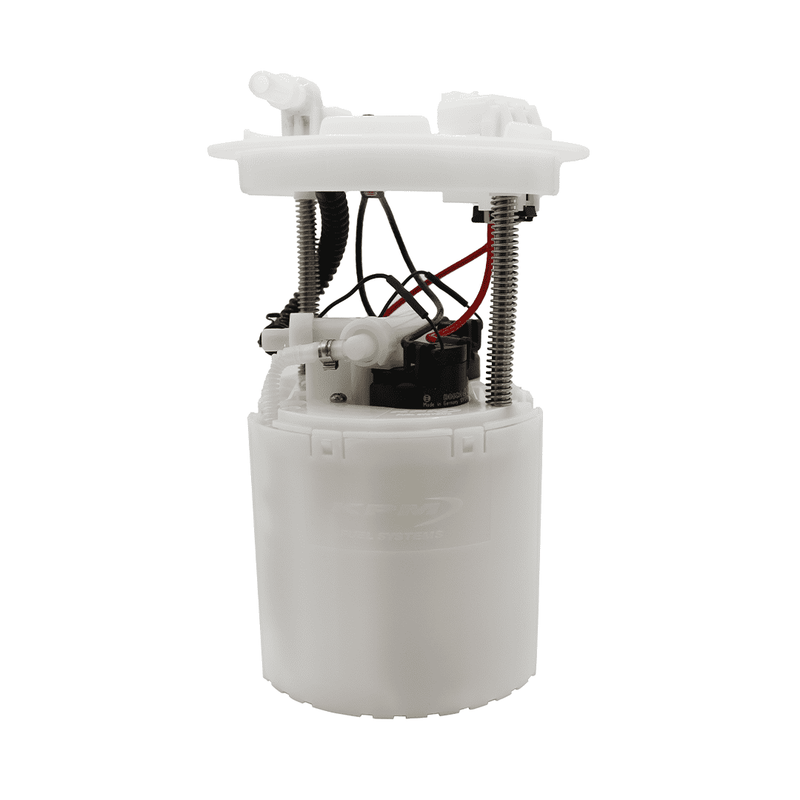

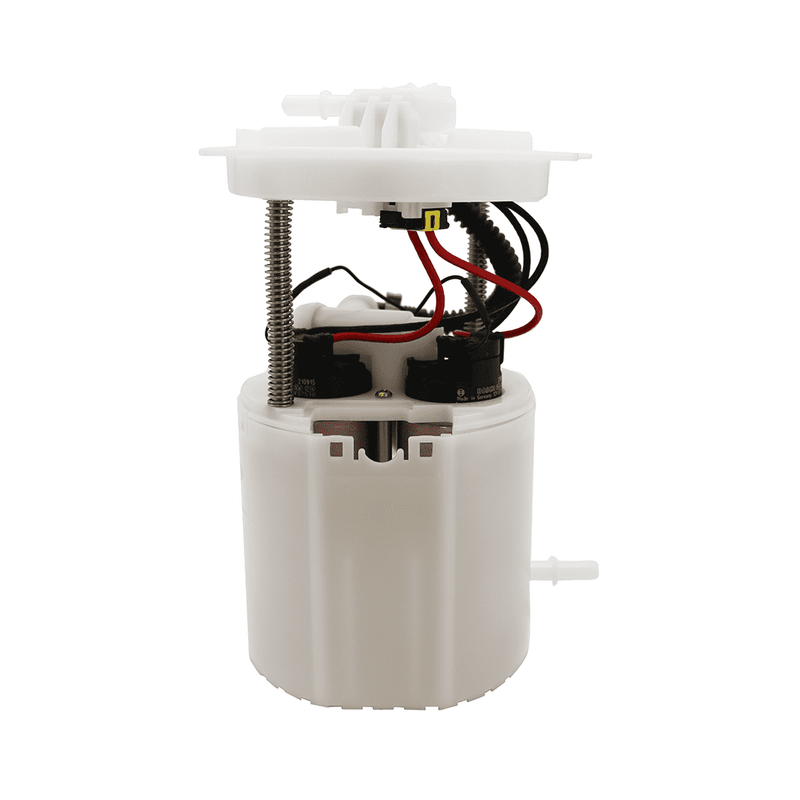

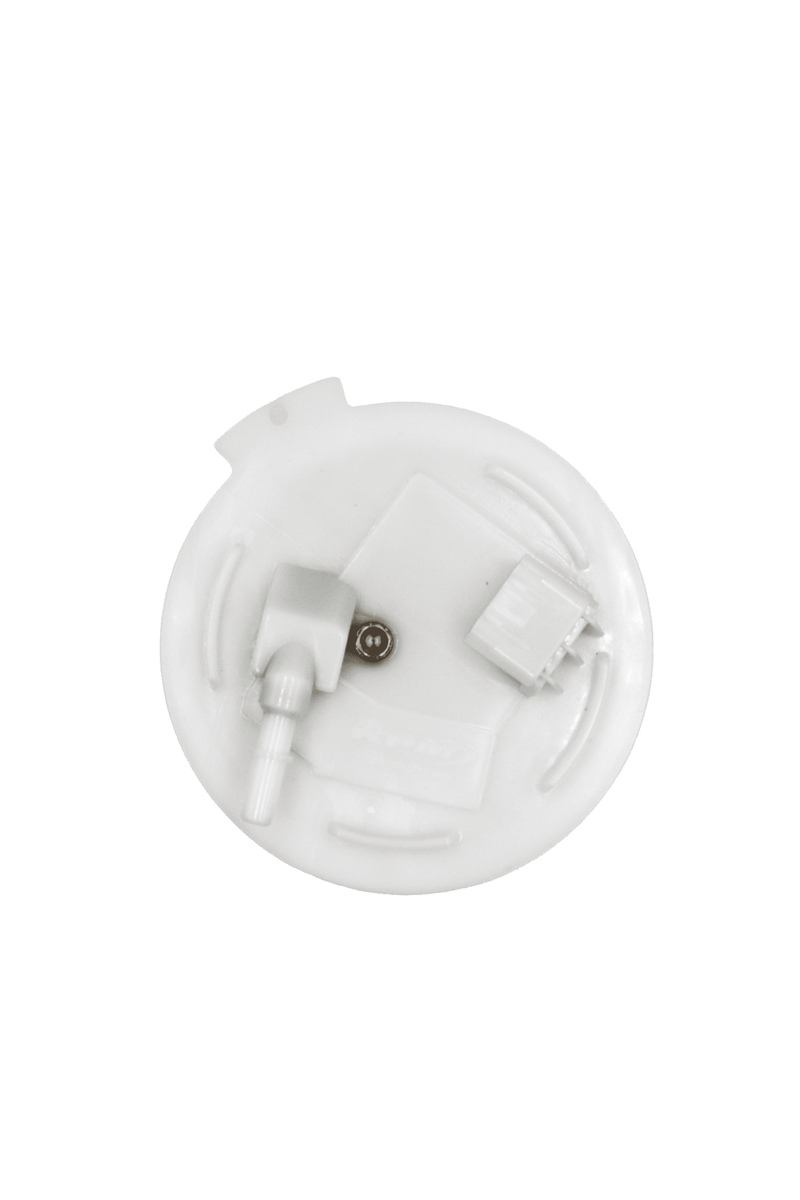

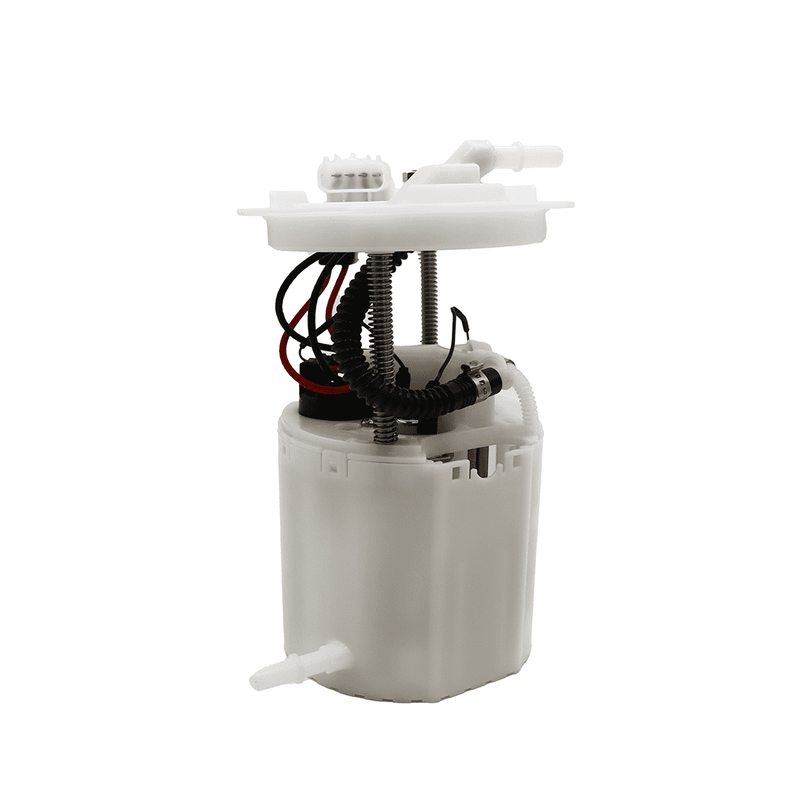

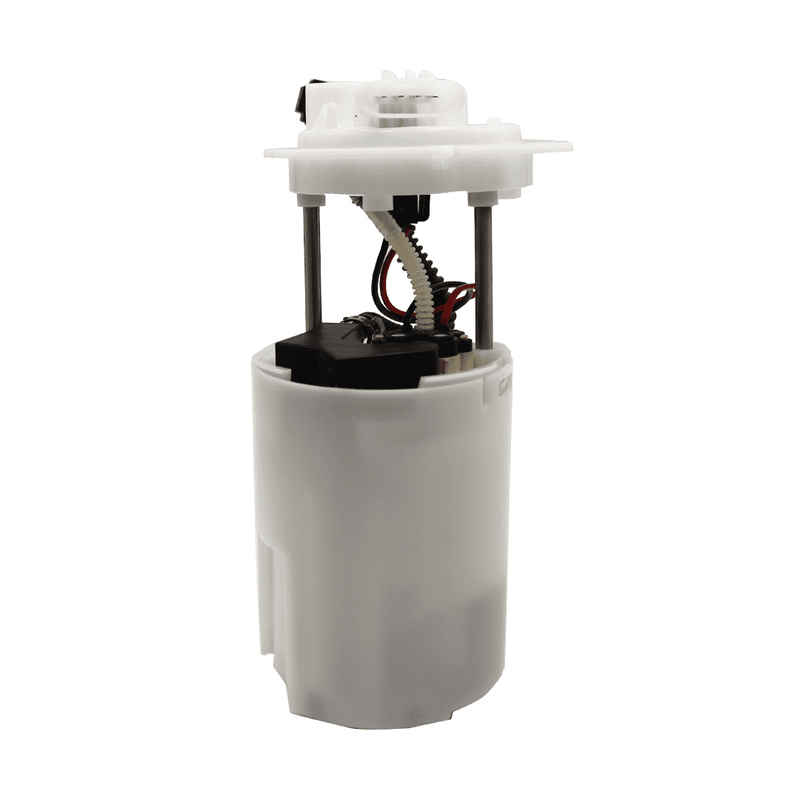

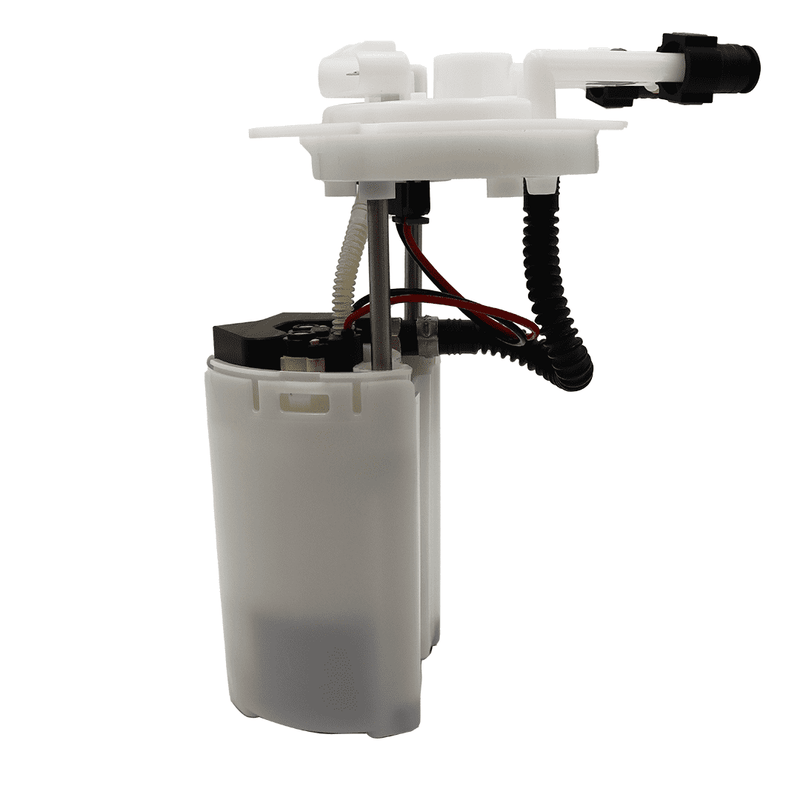

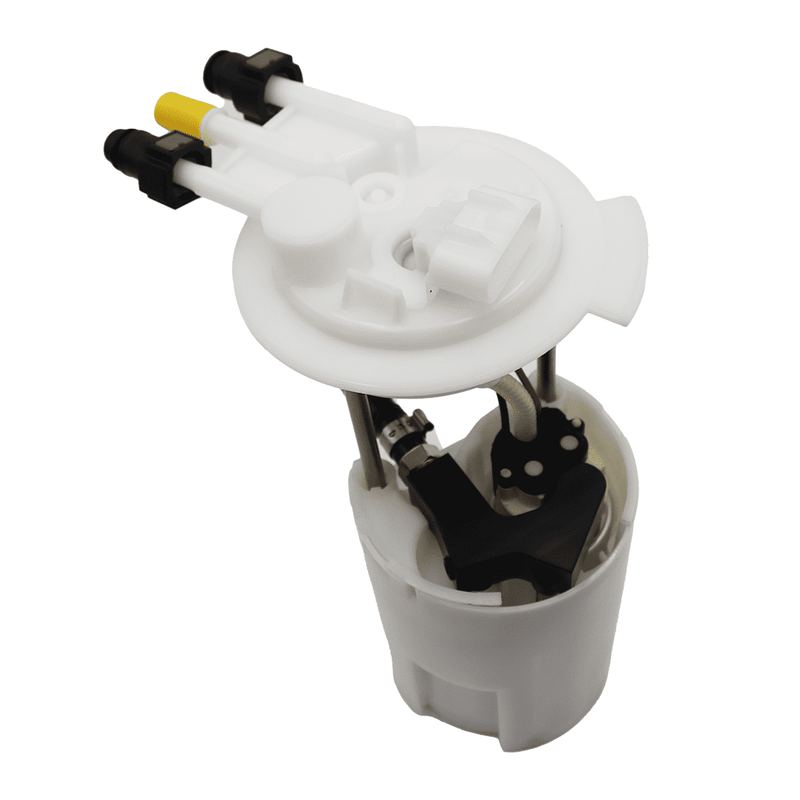

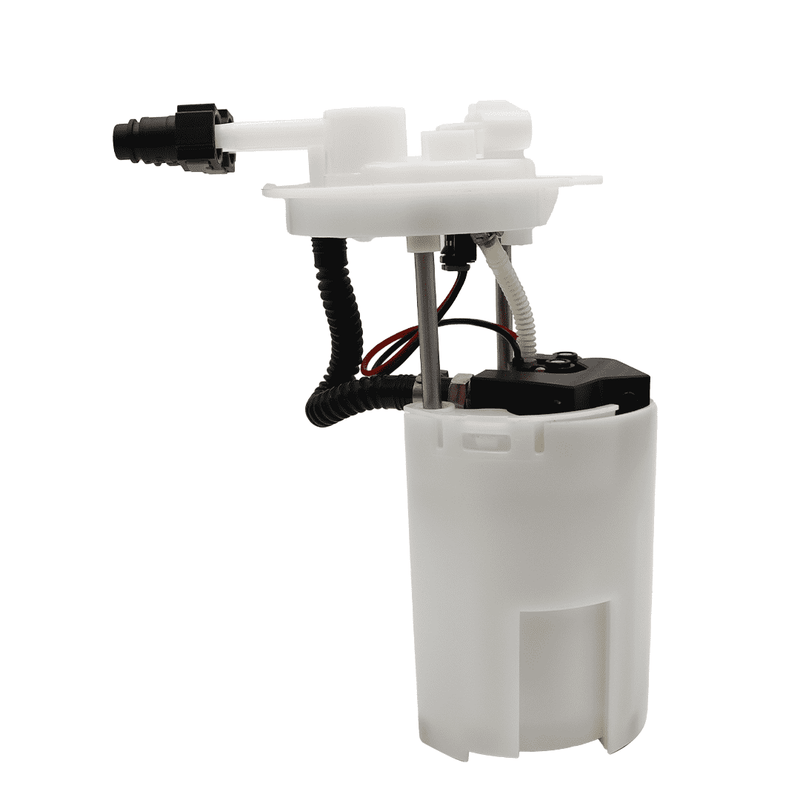

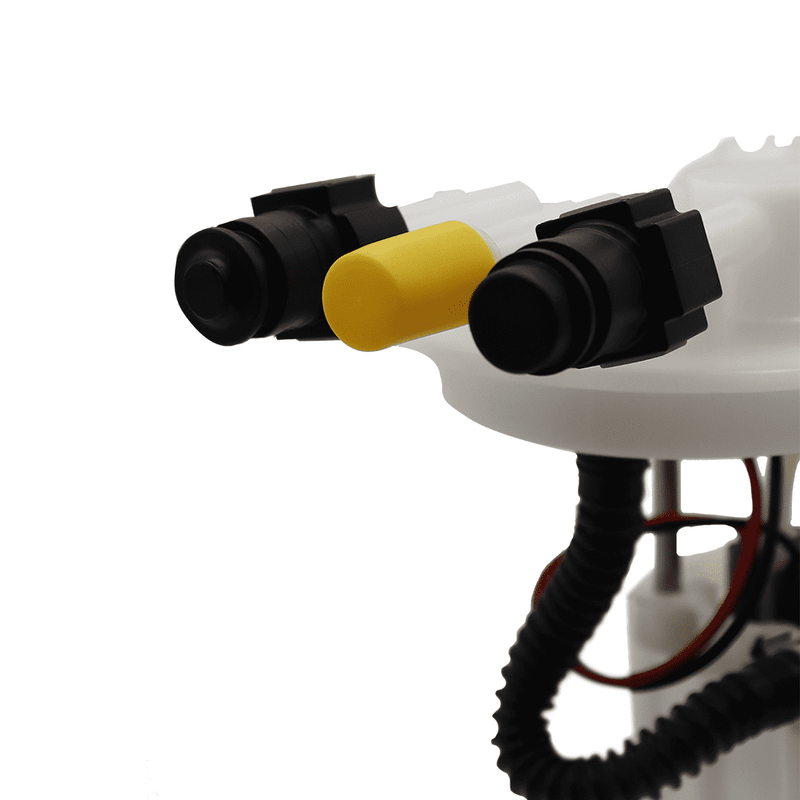

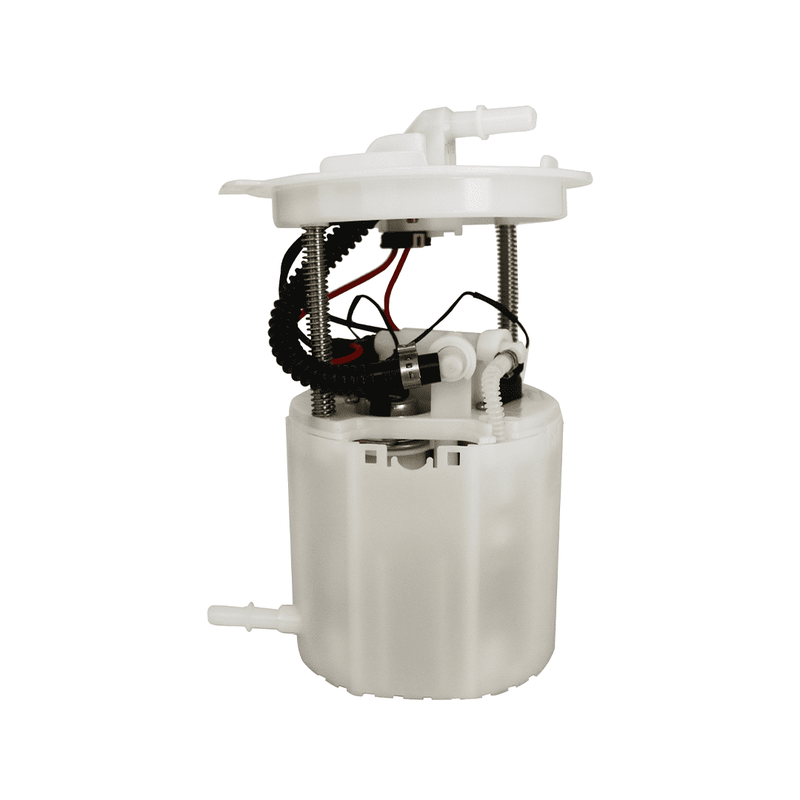

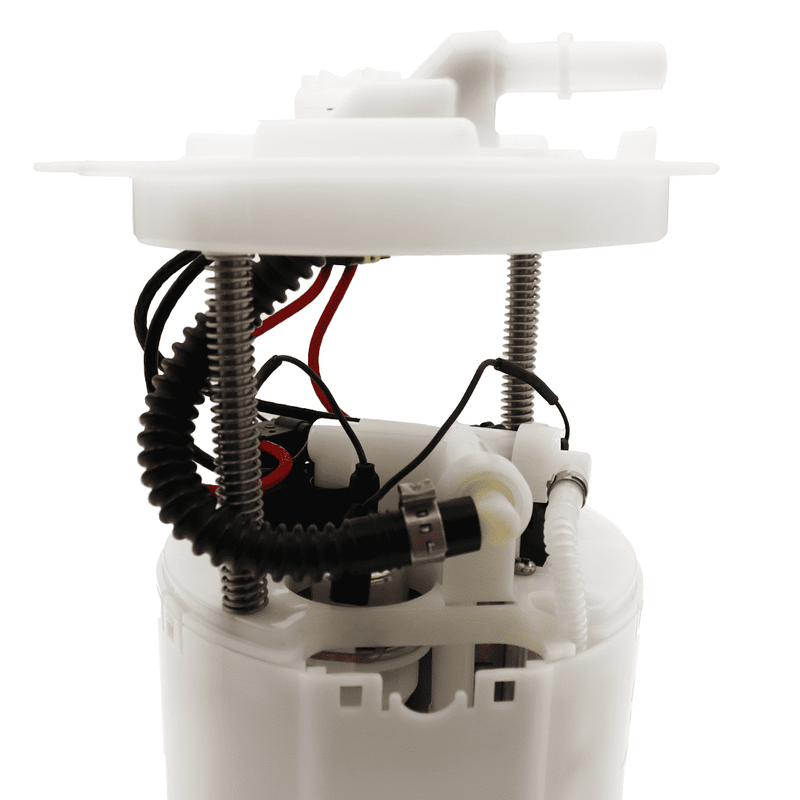

• KPM in-tank fuel modules

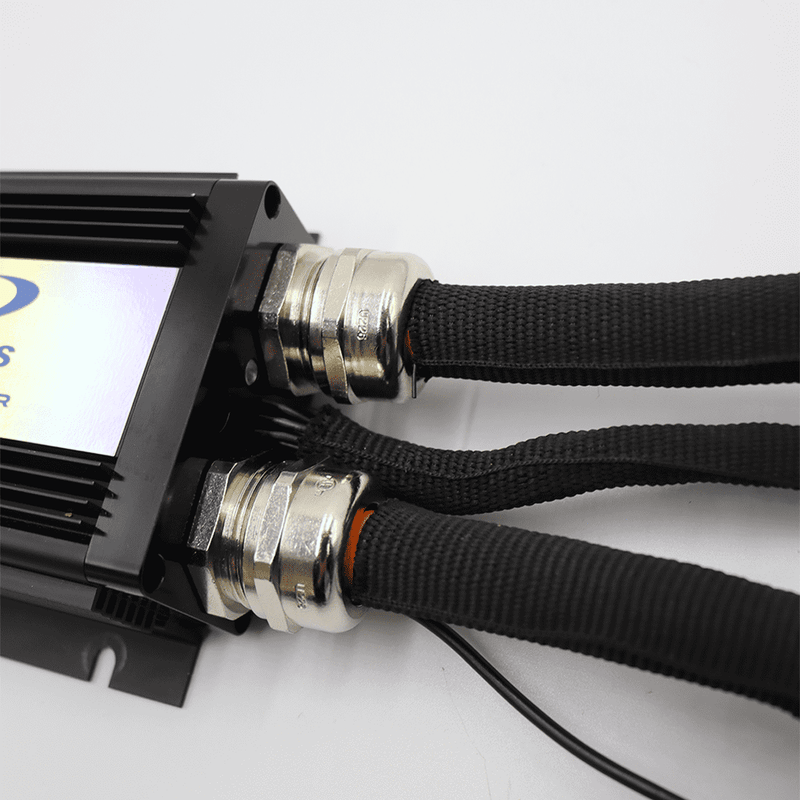

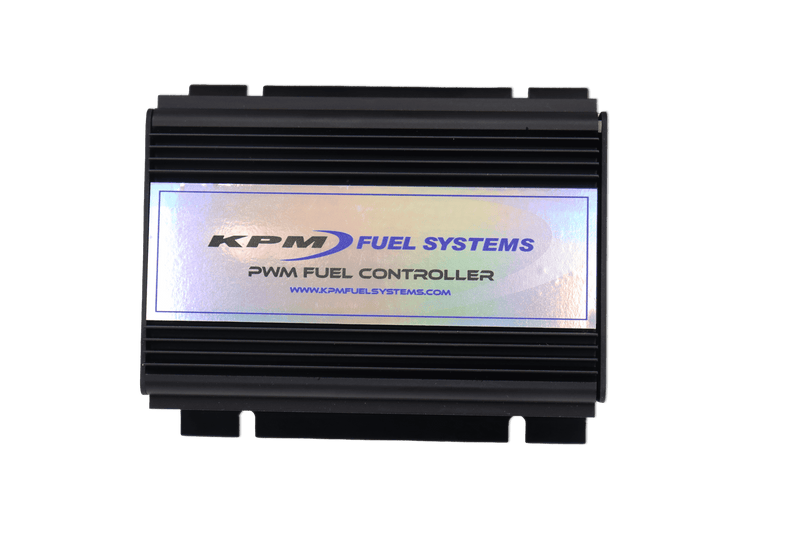

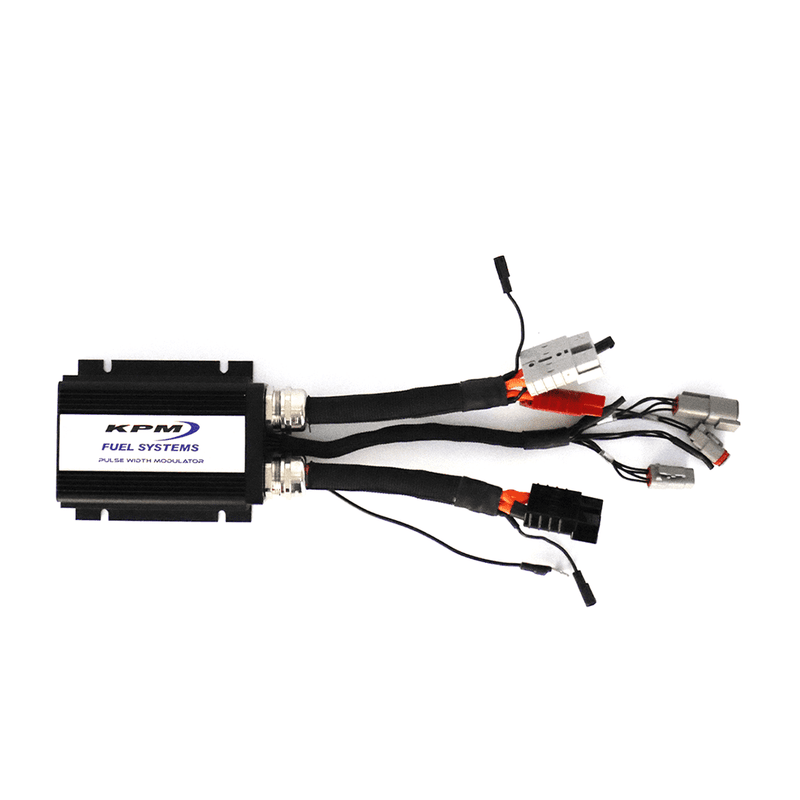

• KPM PWM controller
• Fuel-pressure sensor kit

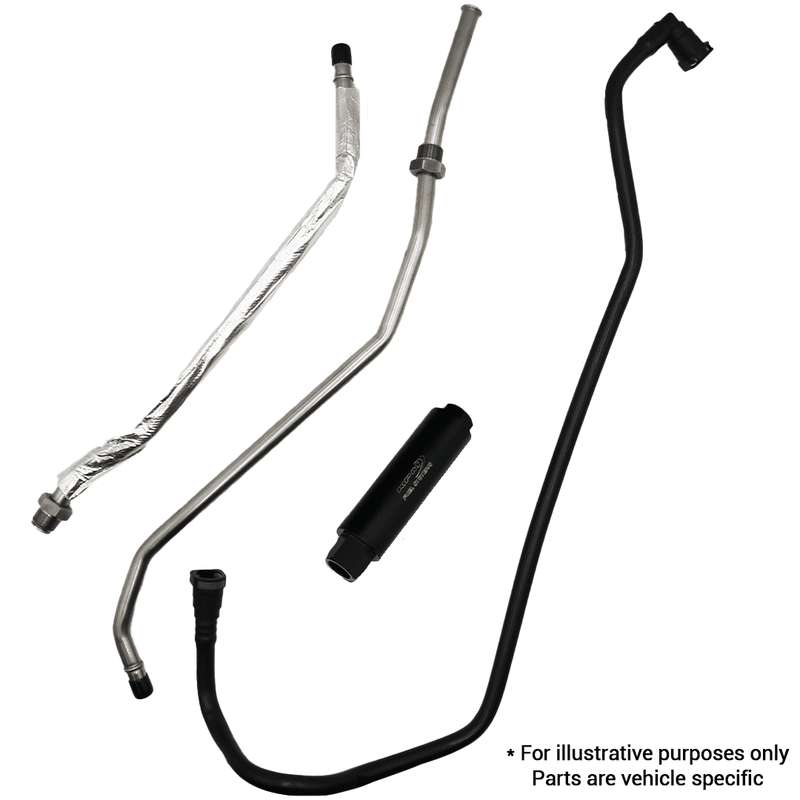

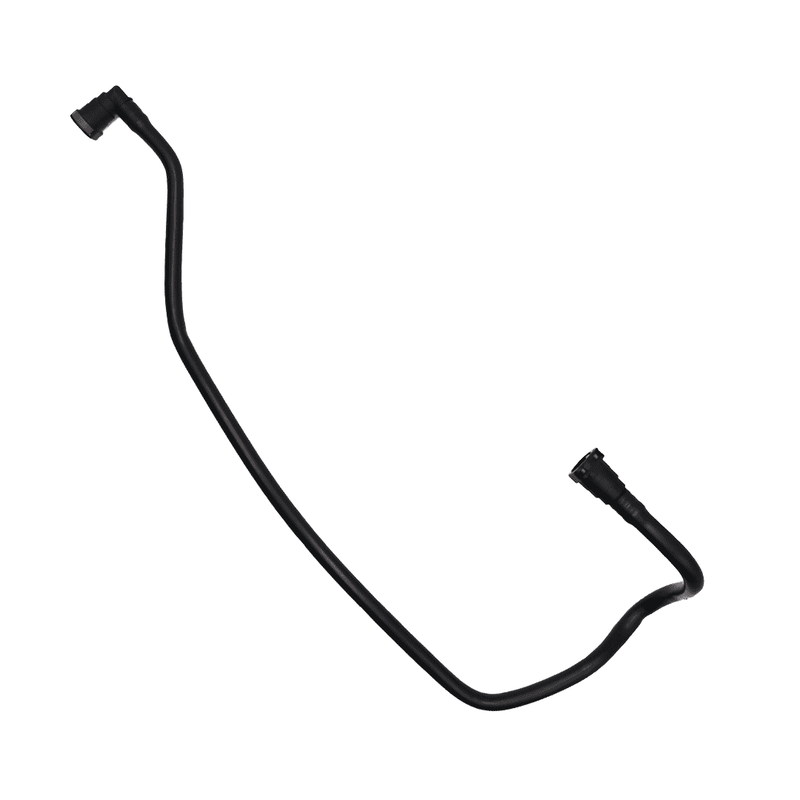

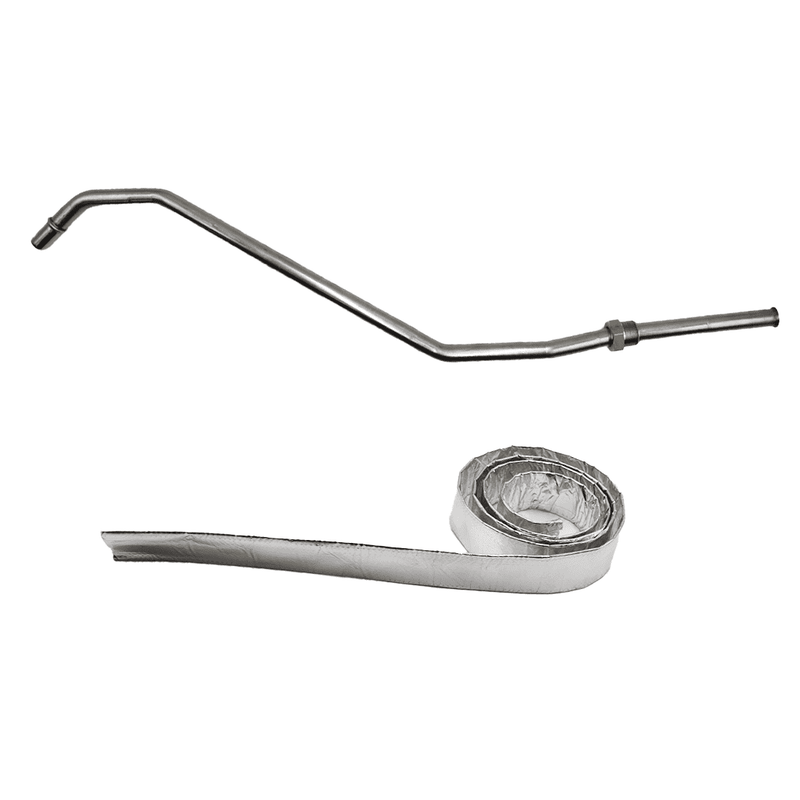

• KPM upgraded fuel-line and KPM 2200HP fuel filter package

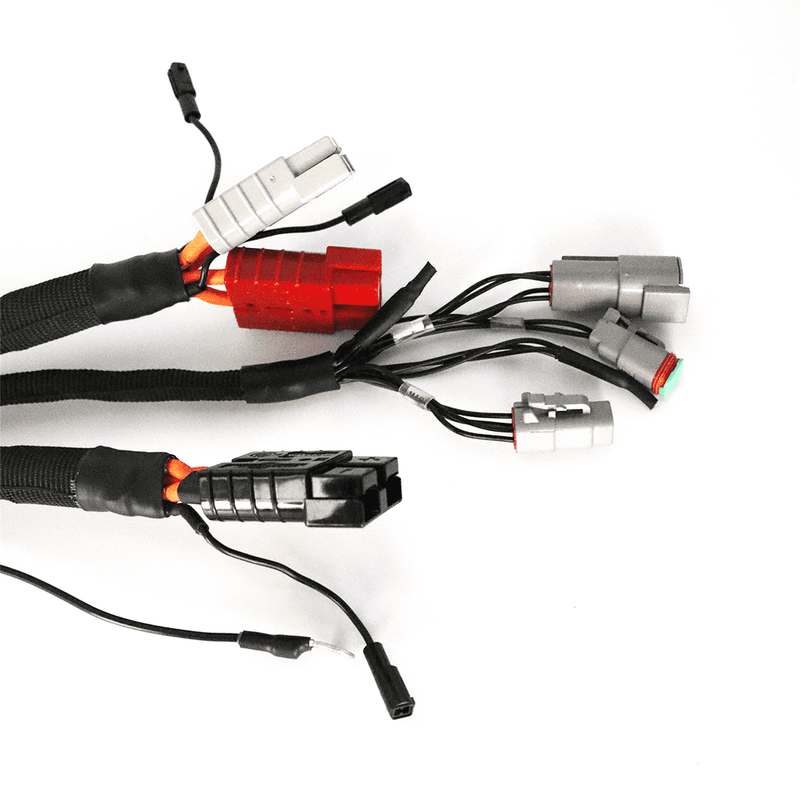

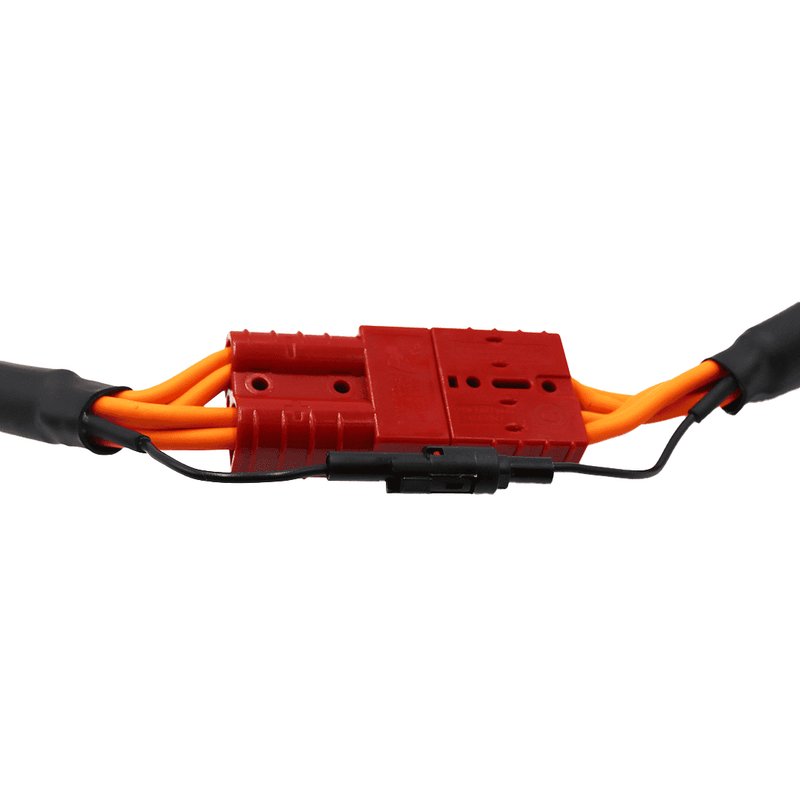

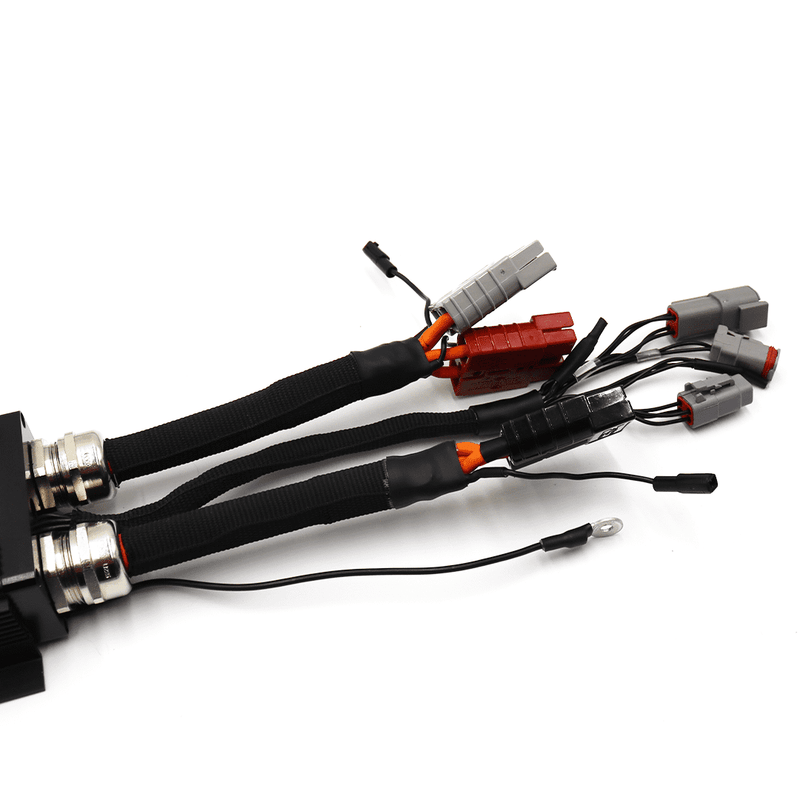

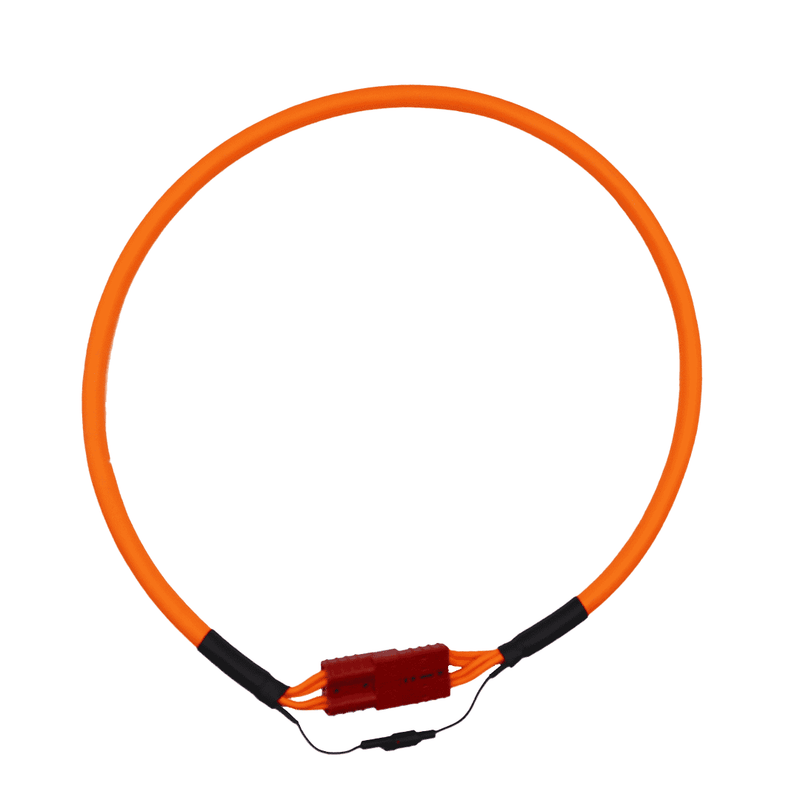

• Heavy-gauge wiring and connector kit
• Fitting and calibration instructions

Installation & Tuning

Professional installation and calibration are required. Review the KPM fitting and calibration instructions before installation and maintain sufficient fuel in the tank during racing or sustained full-load use.

Horsepower note: KPM ratings are measured at the crankshaft on gasoline. Actual capacity depends on fuel type, pressure, voltage, engine combination and calibration. Professional installation and tuning are recommended.
