Magnuson M.O.A.B. TVS3100 LS3/LSA Hot Rod Supercharger Kit
by Magnuson
Special Order
Original price
$6,777.30
-
Original price
$7,473.30
Original price
$6,777.30
$6,777.30
-
$7,473.30
Current price
$6,777.30

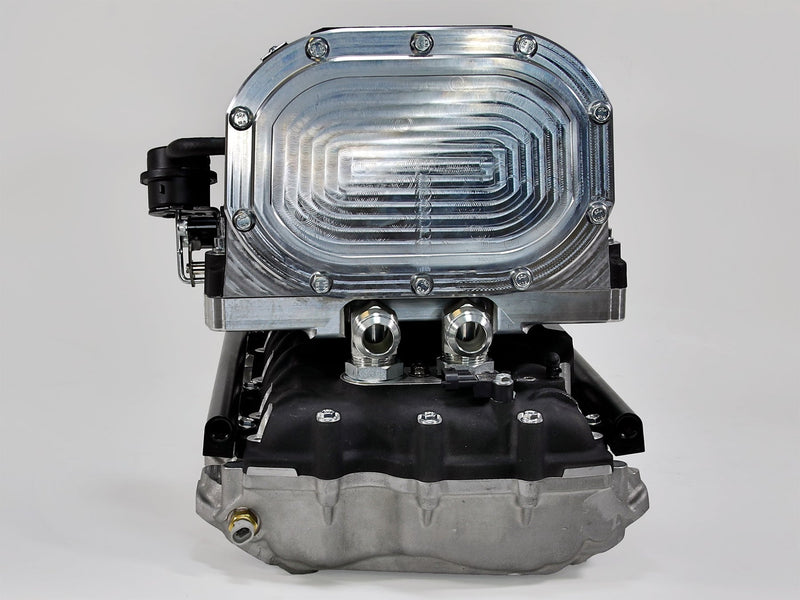

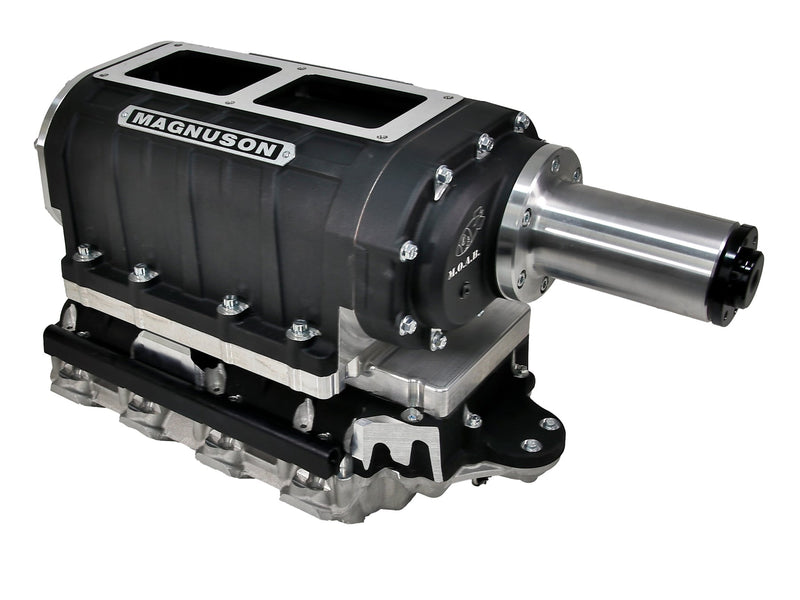

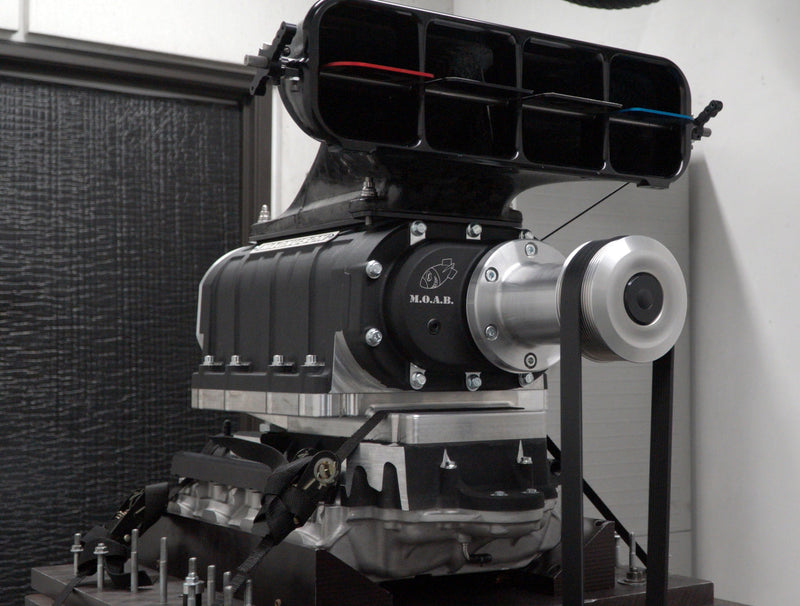

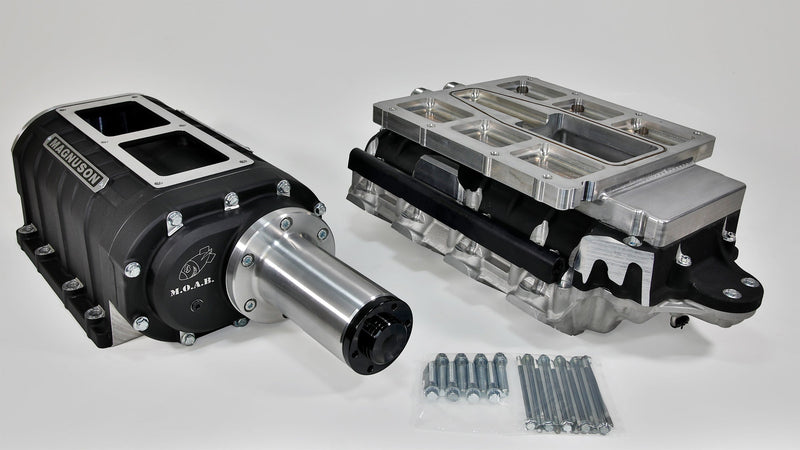

Classic 6-71 looks meet modern 3.1L TVS performance. The Magnuson M.O.A.B. TVS3100 LS3/LSA Hot Rod Supercharger Kit pairs a high-helix, four-lobe TVS3100 supercharger with an intercooled manifold for GM LS engines using LS3-style rectangular-port cylinder heads.
Built for custom hot rods, restomods, race cars, and engine swaps, the system delivers immediate boost response, efficient airflow, cooler charge temperatures, and smooth street drivability.
Key features
- 3.1L Magnuson M.O.A.B. TVS3100 supercharger
- Integrated liquid-to-air charge-air cooler with large 1-inch (-16 ORB) coolant ports
- Standard 6-71/8-71 inlet and drive architecture for broad carburetor, EFI, injector-hat, inlet, and cog-drive compatibility
- Integrated high-flow fuel rails
- Built-in vacuum bypass valve for reduced parasitic load at idle and light throttle
- 6.90-inch drive cartridge configured for custom cog-drive installations with an industry-standard six-bolt pulley hub and Corvette accessory spacing
- Self-contained supercharger oiling with no external oil lines or routine oil service
Application: GM LS engines with LS3-style rectangular-port cylinder heads.
Installation notes: Custom cog drive is required. Fuel injectors and crossover are not included.
