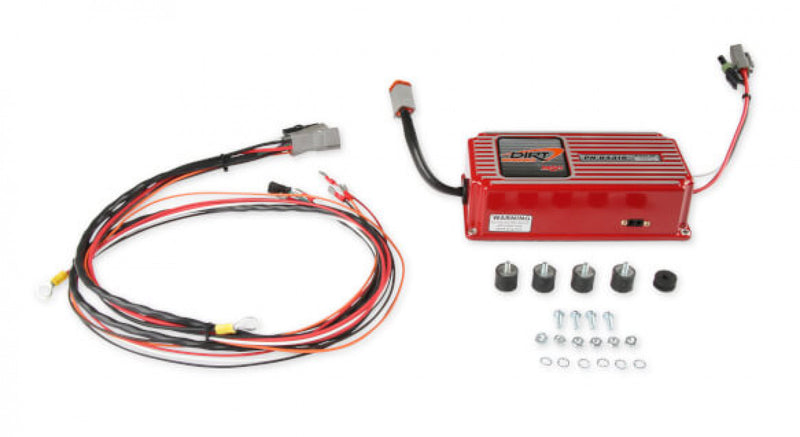

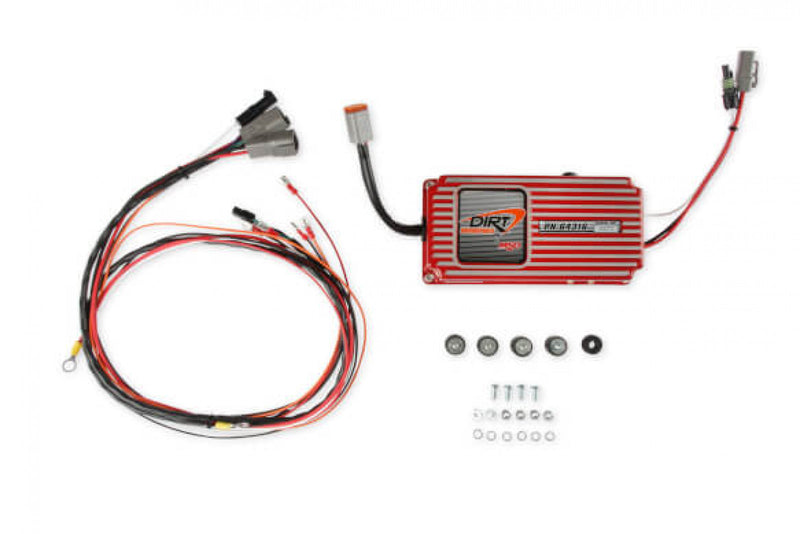

MSD 6ALN Ignition Control, DIRT

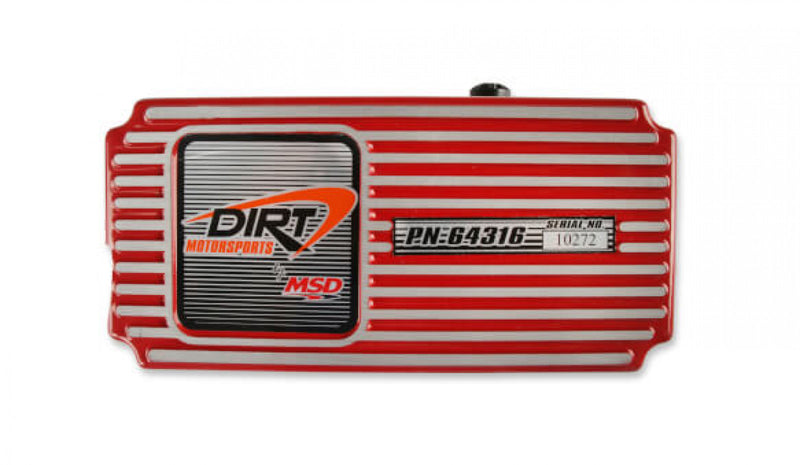

Originally designed with NASCAR in mind, the 6ALN is equipped with the 6-Pin Deutsch connector to meet NASCAR's ignition wiring rule. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.

The 6ALN for DIRT Motorsports has a built-in Rev Control fixed to 7,600 RPM.. The rev control will save your engine from over-rev damage caused by missed shifts or driveline failure.

Features:

• Multiple spark, capacitive discharge ignition control
• Supplied with rubber shock mounts
• Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
• 110 millijoules per spark up to 15,000 RPM
• 470 primary voltage output to coil
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• Works on 12 - 18 volt electrical system
• Multiple sparks for 20 degrees of crankshaft rotation
• Built-in Soft Touch Rev Control is fixed to 7,600 RPM
• Clear plastic base plate for easy tech inspection
• Circuit board is encased in a clear two part silicone elastomer

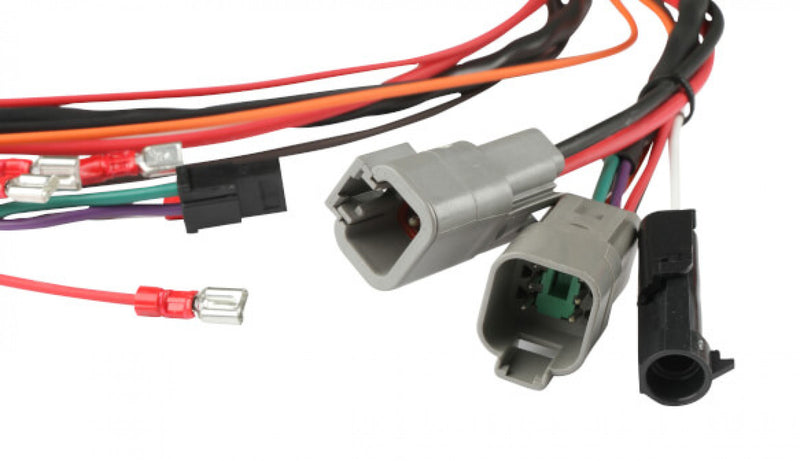

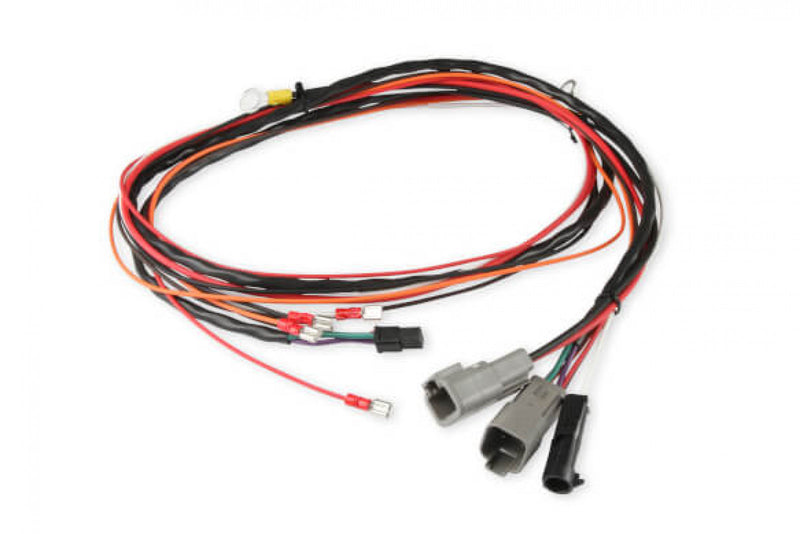

• 6-pin Weathertight connector, mandatory for NASCAR use
• Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection
