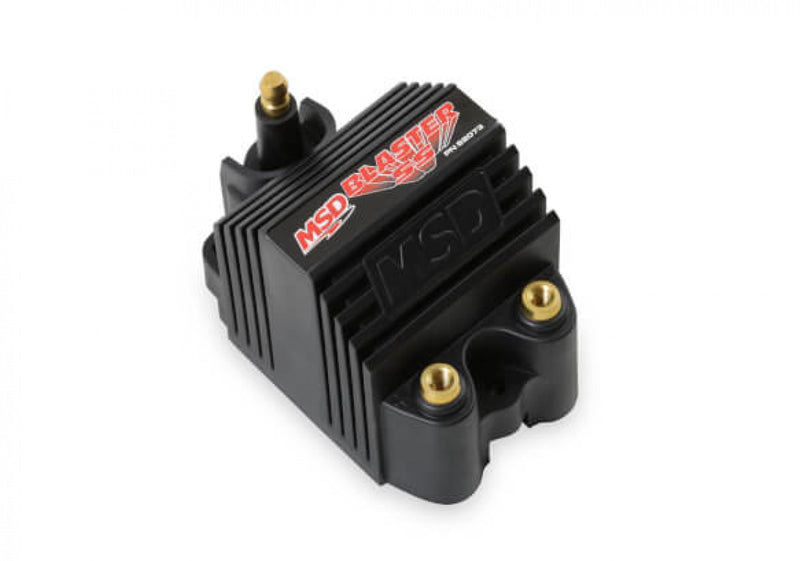

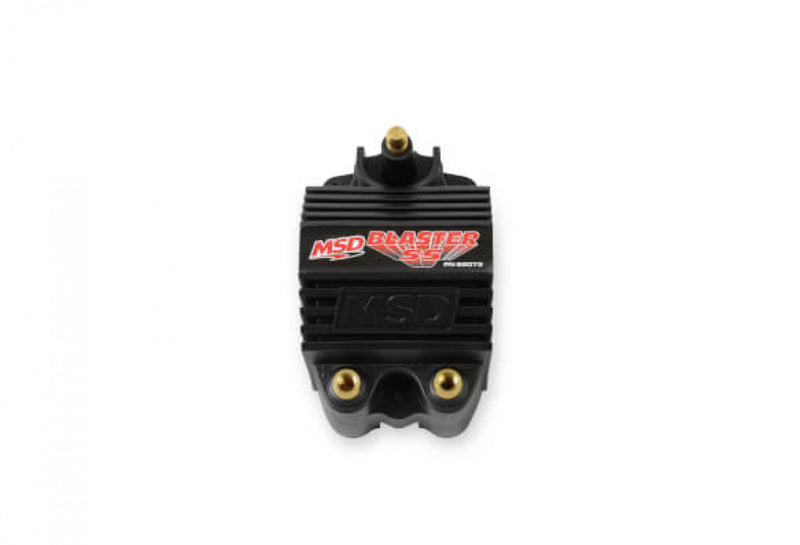

MSD Ignition Coil - Blaster SS - Black

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts!

Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.

Features:

• Improved output coil for electronic ignitions, and MSD Ignitions
• Efficient winding design and assembly creates a compact housing
• Primary and secondary windings are encased in Ciba polyurethane
• 70:1 turns ratio and lower primary resistance produce high voltage output
• Tough, rigid housing with a tall tower and brass primary terminals
• CARB E.O. D-40-37
