ProCharger F-1A Supercharger Head Unit | 1,100 HP | PC325A

ProCharger F-1A Centrifugal Supercharger Head Unit

The ProCharger F-1A is engineered for high-revving street/strip and race combinations needing up to 1,575 CFM in a compact 9-inch package. ProCharger's centrifugal design builds boost with engine speed for strong top-end power while retaining the responsive, progressive delivery enthusiasts expect from a properly matched system.

F-series installations require an appropriately engineered bracket, drive, pulley, fuel and charge-cooling combination.

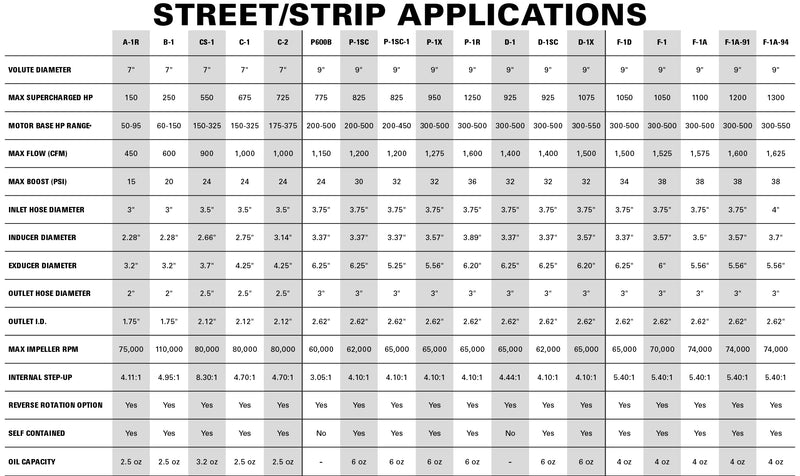

Key Specifications

• Maximum supercharged horsepower: 1,100 HP
• Maximum airflow: 1,575 CFM
• Maximum boost: 38 PSI
• Maximum impeller speed: 74,000 RPM
• Internal step-up ratio: 5.40:1
• Volute diameter: 9 inches
• Inlet hose diameter: 3.75 inches
• Outlet hose diameter: 3 inches
• Self-contained oiling with 4-ounce oil capacity
• Reverse-rotation configuration available

What You Receive

One new ProCharger F-1A head unit in the selected finish. A pulley, belt, bracket system, intercooler, bypass valve and vehicle-specific installation hardware are not included unless expressly listed.

Ordering and Compatibility

This is a universal performance head unit, not a complete vehicle kit. Verify rotation, mounting pattern, pulley style and offset, volute clocking, inlet and outlet sizes, impeller-speed calculation, target horsepower, drive capacity and bracket clearance before ordering. Contact SMG Speed with your existing ProCharger serial number and system part number when replacing or upgrading a current unit.

ProCharger warranty coverage depends on the application and intended use. Exceeding published impeller speed, improper lubrication/service or incorrect installation can void coverage.
