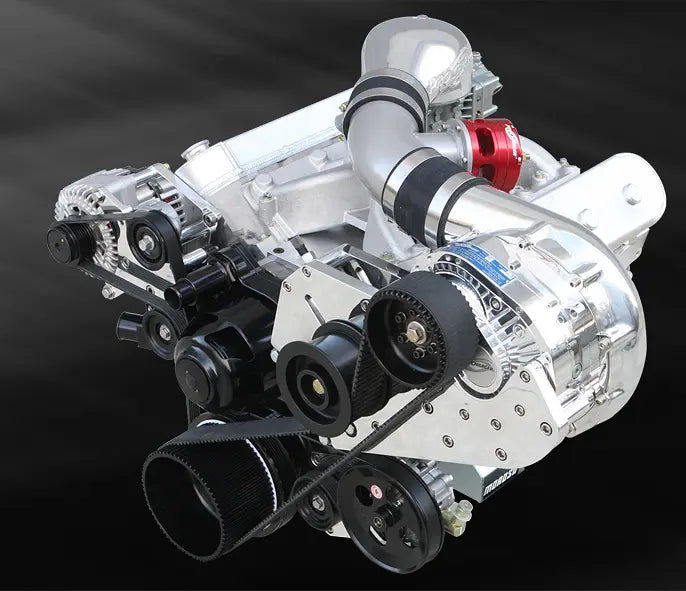

ProCharger LS Cog Race Kit – F-1X

Configure the ProCharger 1LS200 LS Cog Drive Race Kit with F-1X, your choice of supercharger finish, and intercooled or non-intercooled configuration.

Kit equipment

The dedicated 50 mm cog/Gilmer drive package includes the supercharger, supercharger mounting bracket, belt tensioner and Race blow-off valve. The intercooled selection adds an air-to-air intercooler and tubing; tubing is supplied with intercooled kits only.

Engine-swap fitment

For appropriately configured EFI or carbureted LS installations. Provide the block material, deck height, engine specification and power-steering arrangement. Mechanical or electric water pumps can be used; Corvette-style water pumps are incompatible. LS7 installations require modifications that are not supplied, and VVT engines are not a direct bolt-on application.

Application-dependent Muscle Rods or equivalent compatible engine mounts are required and sold separately. Crank pinning is recommended. Confirm mounting clearance, accessory layout and drive alignment before ordering; vehicle year, make and model alone do not establish fitment.

Optional accessory brackets

The supercharger mounting bracket and supercharger-belt tensioner are included. Accessory-drive brackets are separate options: 3LSAT-002 alternator bracket with tensioner, 3LSPS-001 power-steering bracket, or 3LSPS-002 power-steering delete bracket. Specify whether power steering is retained. The 3LSPS-001 bracket requires GM pump 21997867; the pump and other vehicle accessories are not included.
