ProCharger LS Classic P-1SC-1 Serpentine Supercharger Kit

ProCharger 1LS100 LS Classic serpentine kit with P-1SC-1. Select intercooling and supercharger finish using the configuration choices above.

Drive and package

This driver-side layout uses a dedicated 8-rib supercharger drive. Intercooled configurations include an air-to-air intercooler and tubing. The supercharger bracket and belt tensioner are included. Alternator and power-steering brackets are optional, separately priced additions. Accessory units, water pump and crank balancer are not included. Select the accessory brackets and supporting components required for your installation.

Fitment requirements

Specify block material, deck height and power-steering arrangement. LS7 applications need additional modifications; VVT engines are not a direct bolt-on fit. Corvette-style water pumps are incompatible. Compatible application-specific engine mounts are required.

Use a hardened-hub ATI 918853 balancer for LS1/LS2/LS3, or ATI 918620 for LS7. Crank pinning is recommended.

Compatible accessory references

GM water pump 89017593; alternator 19244751; power-steering pump 21997867 with pulley 12568997; A/C compressor 92175482 with bracket 92066950, belt 25040430 and tensioner 12595289.

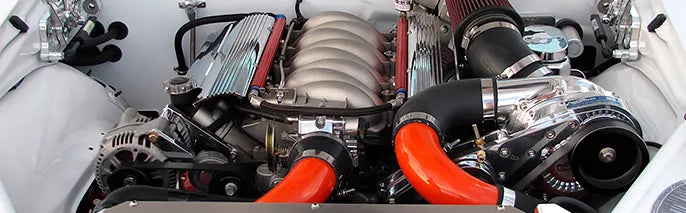

Verify engine, accessory clearance and belt alignment before ordering. Vehicle year, make and model alone do not establish compatibility. The installation photograph is a reference; shown accessories and vehicle components are not included.
