ProCharger LS Universal Truck-Accessory Swap HO Supercharger Kit
Shared-drive boost for an LS truck-engine swap
The ProCharger 1LS700-P1SC1 HO tuner kit is designed for LS swaps using 1999–2013 truck accessory arrangements. It uses a driver's-side supercharger mount and shared 6-rib drive. The base head unit is a self-contained P-1SC-1 in satin finish.
Choose your configuration
Select non-intercooled, 2-core intercooled or upgraded 3-core intercooled configuration. The 3-core upgrade adds $435 to the 2-core version and specifies 3-inch tubing. Choose P-1SC-1, P-1X, P-1R, D-1X, F-1D, F-1 or F-1A with satin, black or polished supercharger finish. Helical gears are available only with P- and D-series heads; F-series selections use straight-cut gears. A universal tubing kit is included. Head-unit capacity does not establish a safe boost level for the engine or shared drive; confirm the complete build and clearance before ordering.
Installation requirements
The manufacturer identifies 4.8L, 5.3L, 6.0L and 6.2L truck LS engines with truck accessories for this swap application. An electric cooling fan is required. The drive is designed for a stock or appropriate ATI balancer; confirm the balancer and accessory spacing for the build.
This is a swap kit, not a direct-fit claim for every vehicle from the donor-engine years. Confirm the chassis, engine, accessory arrangement, clearance, cooling layout and piping requirements before ordering. Fuel components and custom tuning must be planned separately.
Photo reference

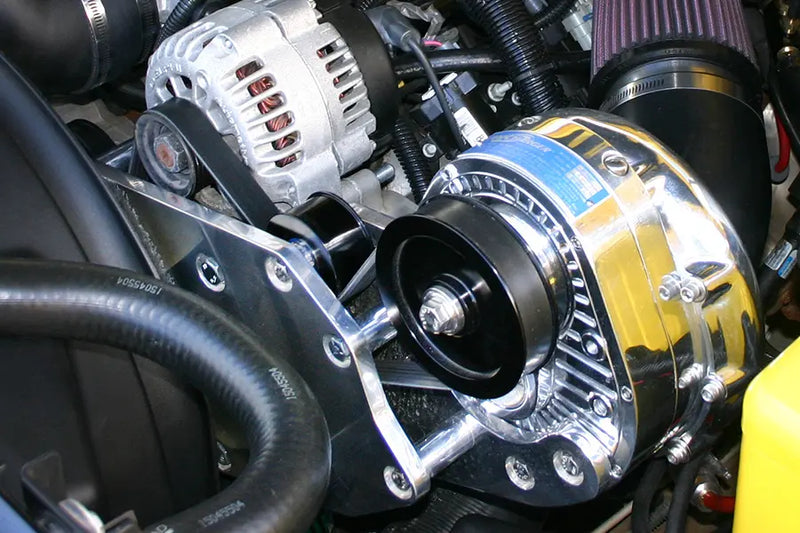

The manufacturer installation photo shows optional polished supercharger and bracket finishes. Engine, vehicle and surrounding accessories are shown for installation context and are not included. Select the desired supercharger finish and the separate bracket-finish option above.
