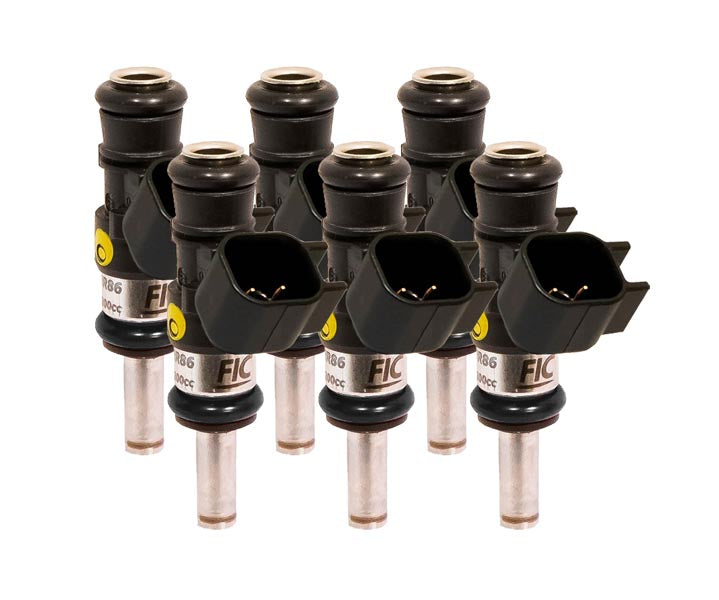

FIC 1440cc Custom Injector Set, 6 Cylinders | ISC-1440H-6
Fuel Injector Clinic ISC-1440H-6 is a custom set of 6 1440cc/min fuel injectors. Confirm the injector height, O-ring diameters, fuel rail and electrical connection with SMGspeed before ordering.
Configuration and dimensions
- Manufacturer catalog number: ISC-1440H-6
- Set quantity: 6 injectors
- Rated flow: 1440cc/min per injector
- FIC-listed height choices (manufacturer notation): 64mm(60mm), 53mm(48mm), 38mm(34mm)
- Top O-ring diameter choices: 11mm, 14mm
- Bottom O-ring diameter choices: 14mm, 15mm, 16mm, 11mm, 21mm
This is a configurable injector set. These dimensions are alternatives; the set must be built to the agreed configuration. Vehicle compatibility depends on the complete injector and fuel-system setup.
Included components and specifications
Includes solder-in pigtails.
Flow rated at 43.5 psi (3 bar), 90°F fuel temperature, using CF-16B calibration fluid.
Individually serial-numbered injectors matched using FIC Data Match Technology, with flow and latency results supplied on the Data Match Sheet.
FIC lists compatibility with pump gasoline, E85, Q16, VP Import, FTW and other MTBE oxygenated race fuels.
FIC provides a lifetime warranty for failures caused by original manufacturing defects.
