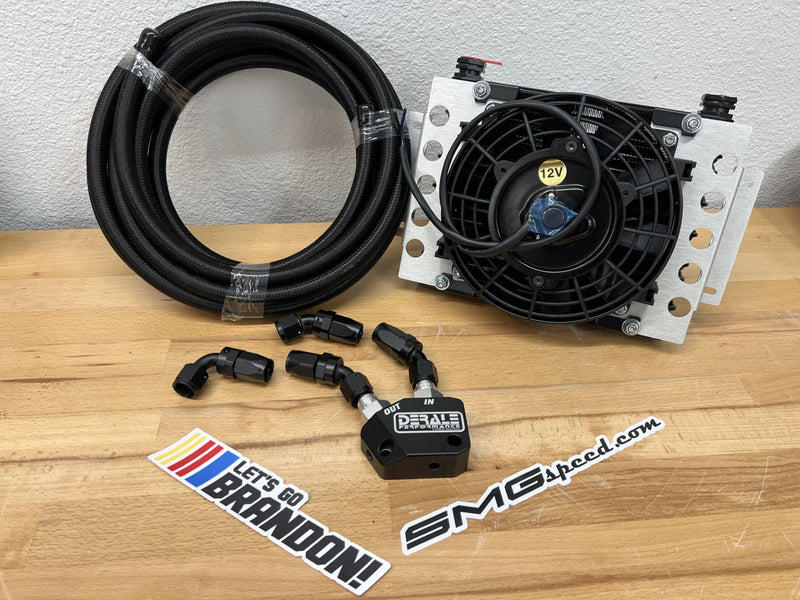

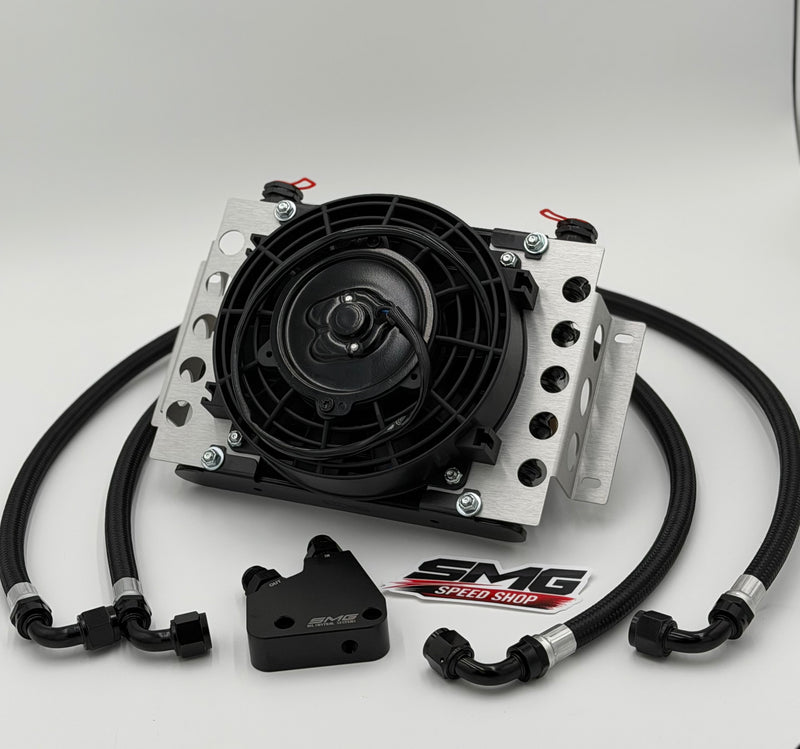

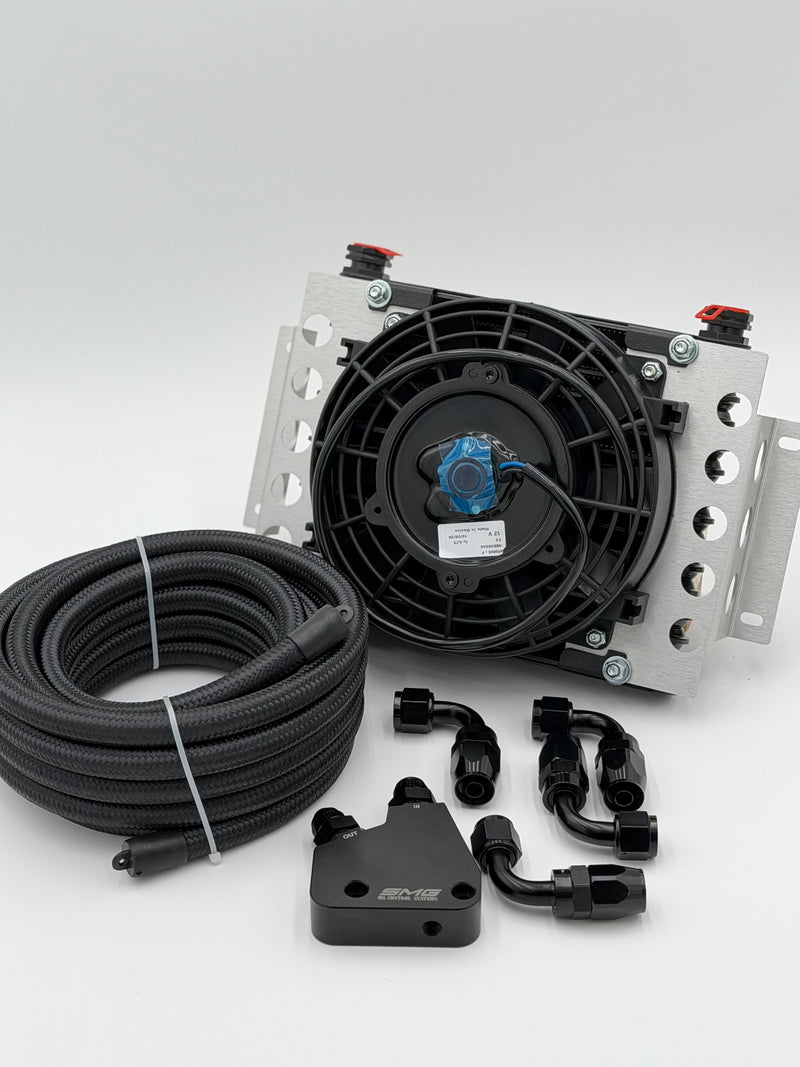

SMG Speed Universal Oil Cooler Kit
Made to order: Each kit is assembled to order. Most kits ship within 7-10 days.
The SMG Speed Universal Oil Cooler Kit combines a high-efficiency plate-and-fin cooler with a reversible electric fan and your choice of builder or pre-fabricated line package. Designed to mount wherever space permits, it helps control oil temperatures and extend engine life.
Specifications
- Cooler style: Plate & Fin
- Inlet size: -8AN male
- Fan size: 8 in.
- Airflow: 500 CFM
- Amp draw: 4.8 A
- Width: 12-3/4 in.
- Height: 9-3/8 in.
- Depth: 4-5/16 in.
- Inlet spacing: 8-9/16 in.
- Mounting dimensions: 11-15/16 x 4 in.
- Barb size: 3/8 in.
- Heat rejection: 22,000 BTU/hr
- Additional cooler capacity: 17 oz.
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- High-efficiency OEM-style plate-and-fin cooler
- Clear-anodized aluminum shroud
- 500 CFM reversible Tornado electric fan
- Cooler assembly includes the fan-mounted cooler and two anodized black -8AN fittings
Kit Options
- Builder Kit: -8AN lines and fittings included.
- Builder Kit - Thermostatic Fan Activation: Includes 180-degree fan activation.
- Pre-Fab Hydraulic Crimped Line Kit: Includes 42-in. lines with 90-degree fittings on all ends.
- Pre-Fab Hydraulic Crimped Line Kit - Thermostatic Fan Activation: Includes 42-in. lines, 90-degree fittings on all ends, and a 180-degree inline switch.
