10 Rib Belt Drive & Crank Pulley - Corvette / Z06 - LT1 / LT4

by TooHighPsi Performance
Crankshaft Pulley Size: 15%
Made to Order (In-House): This item is built/assembled by our team. Build times vary by product — please refer to the product description for the most accurate lead time. Details
Made to Order
$1,049.95 - $1,049.95
$1,049.95
$1,049.95 - $1,049.95
$1,049.95

TooHighPsi's 10-rib crank pulley, billet idlers and upgraded tensioner bracket provide improved belt control for supercharged C7 Corvette LT1 and LT4 applications.

The upgraded drive system provides 30% more peak belt tension, 15% more belt-length take-up and a 48% larger tensioner shaft and bearing assembly.

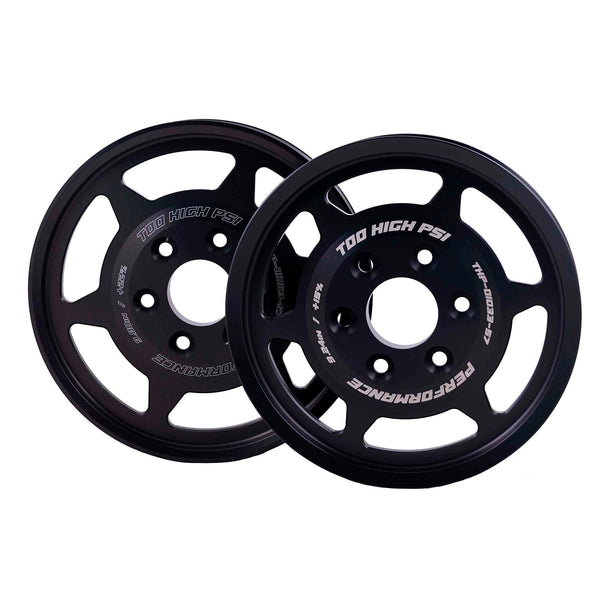

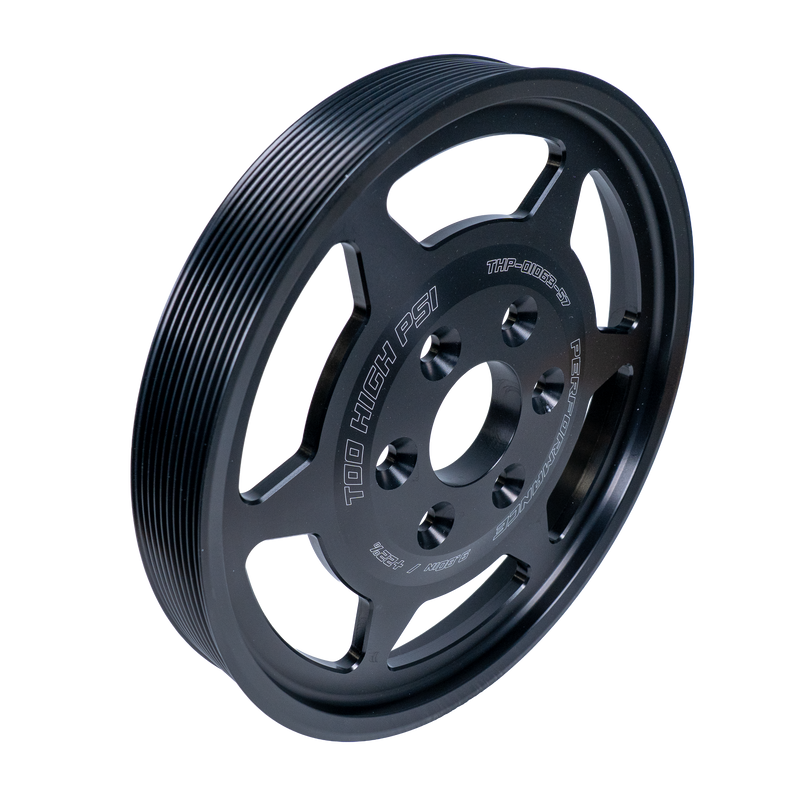

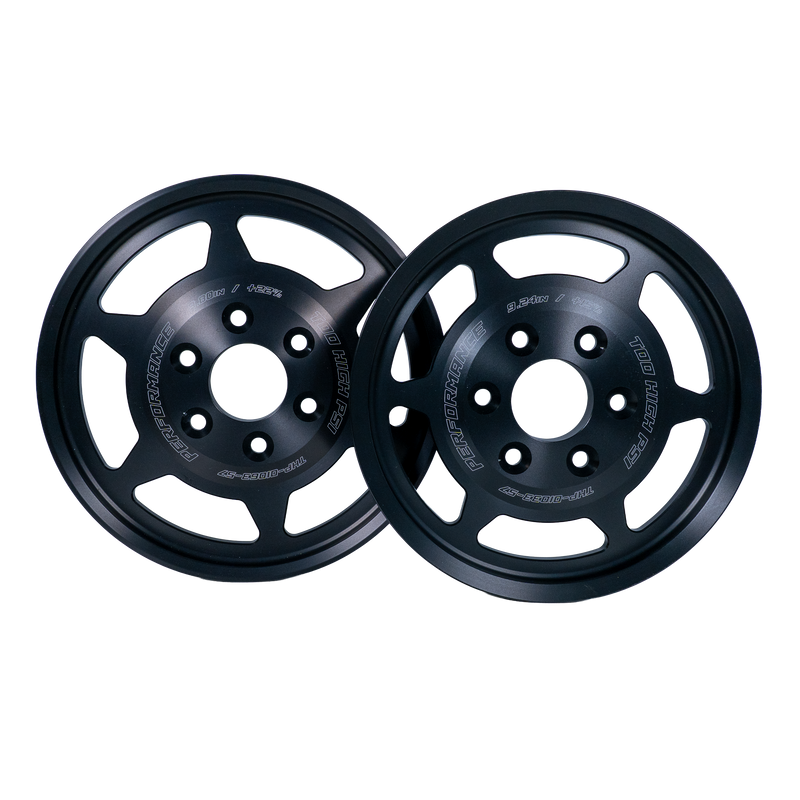

Select: +15% or +22% crankshaft pulley.

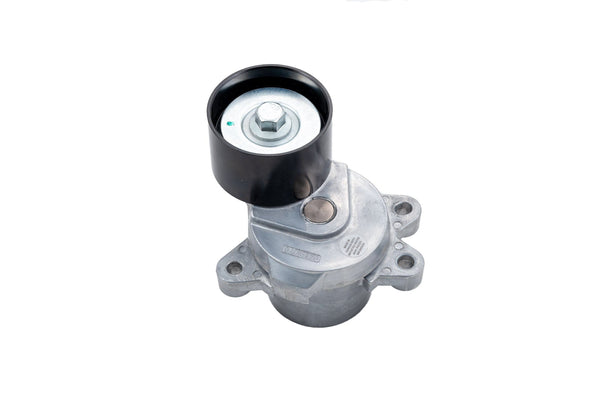

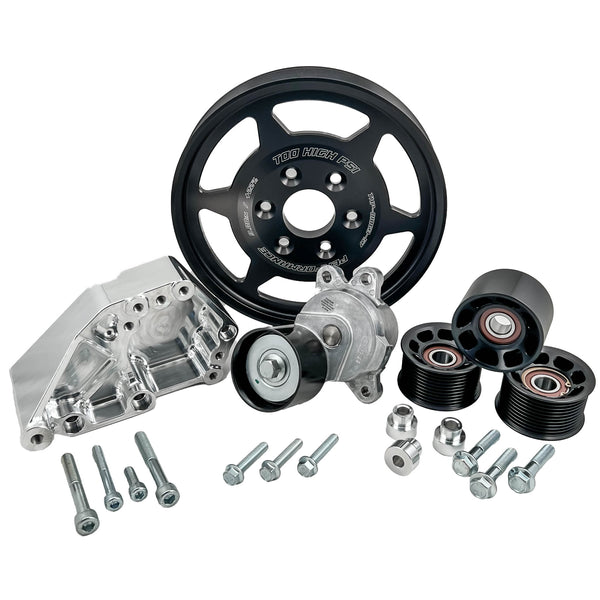

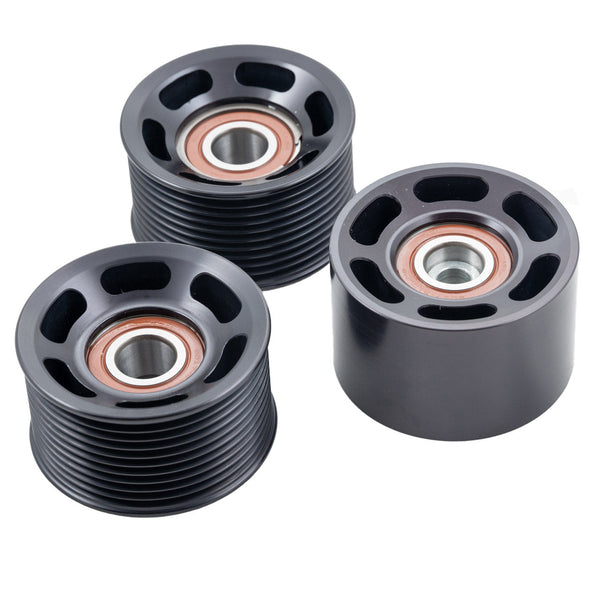

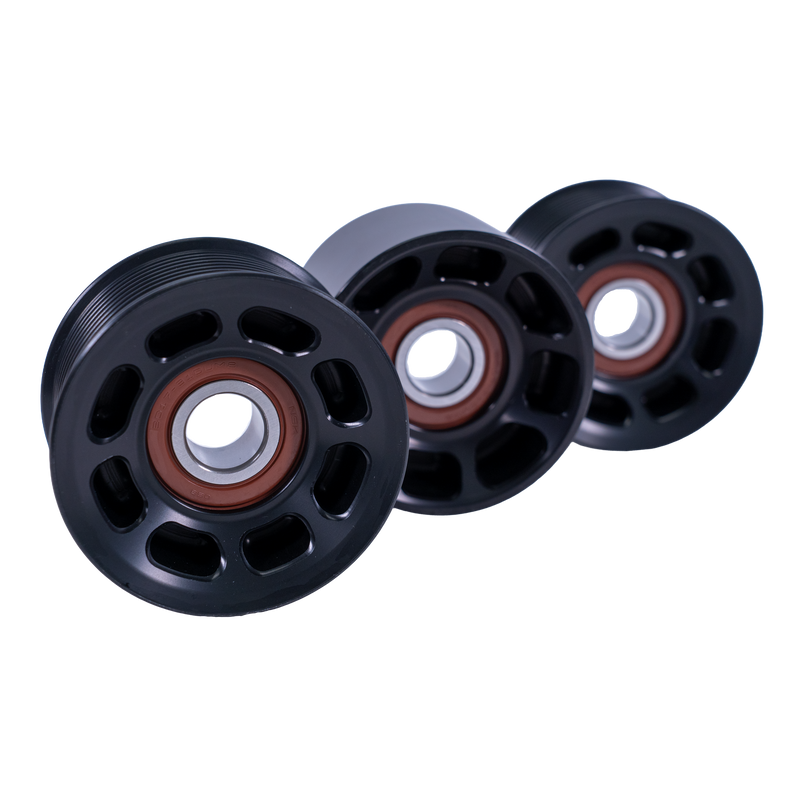

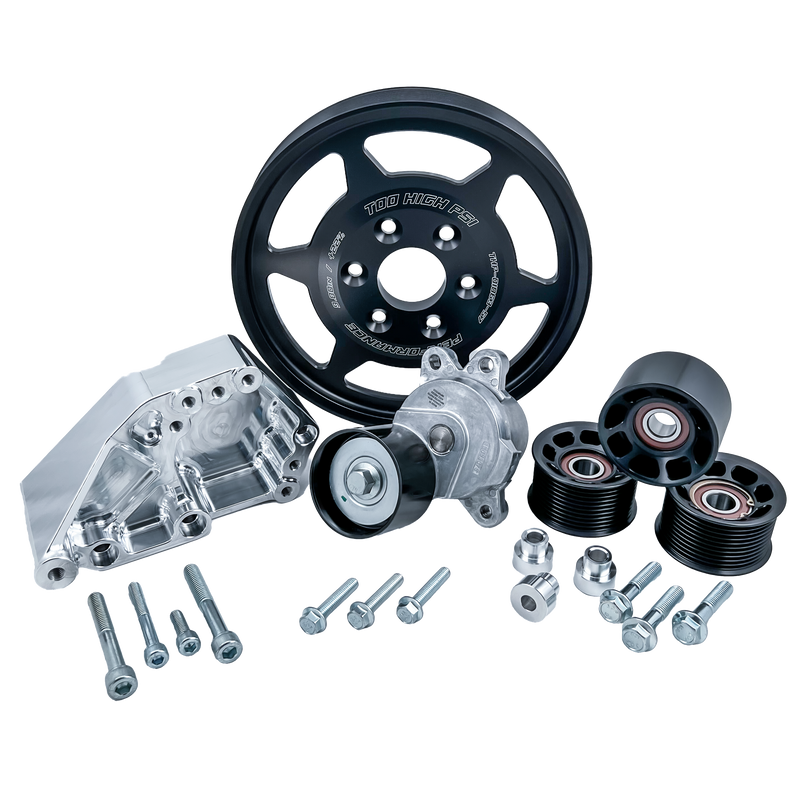

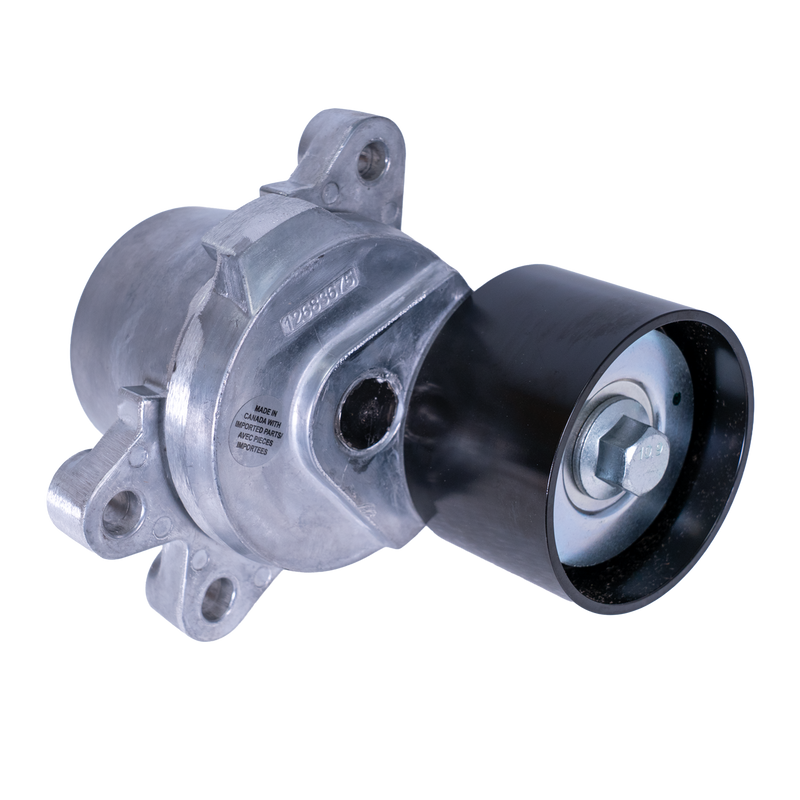

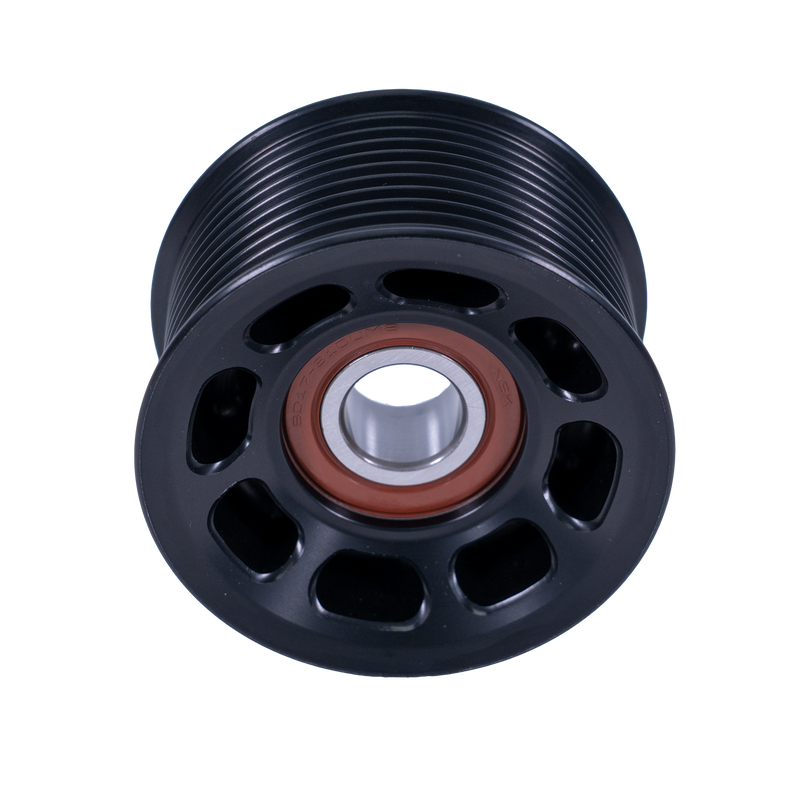

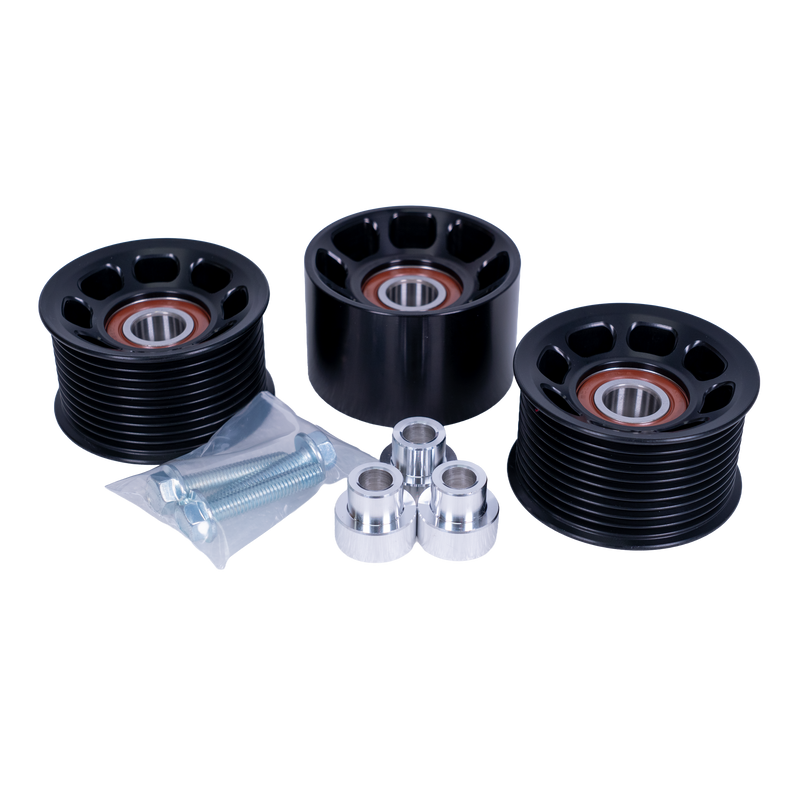

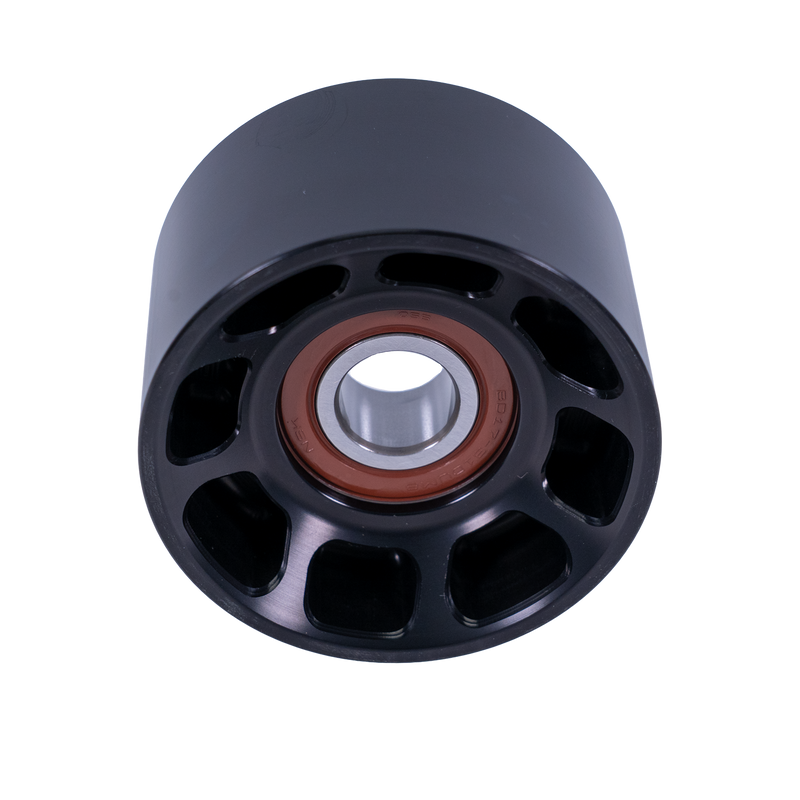

Package includes: TooHighPsi 10-rib lower pulley, billet tensioner bracket, GM LT5 belt tensioner with smooth idler, two ribbed 70 mm billet idlers, one smooth billet idler, pulley spacers and mounting hardware.

TooHighPsi 10-rib systems use a +2 arrangement, placing the additional two ribs forward of the factory eight-rib position.

Required: ATI damper #917315. The lower pulley does not mount directly to the factory crank pulley.
