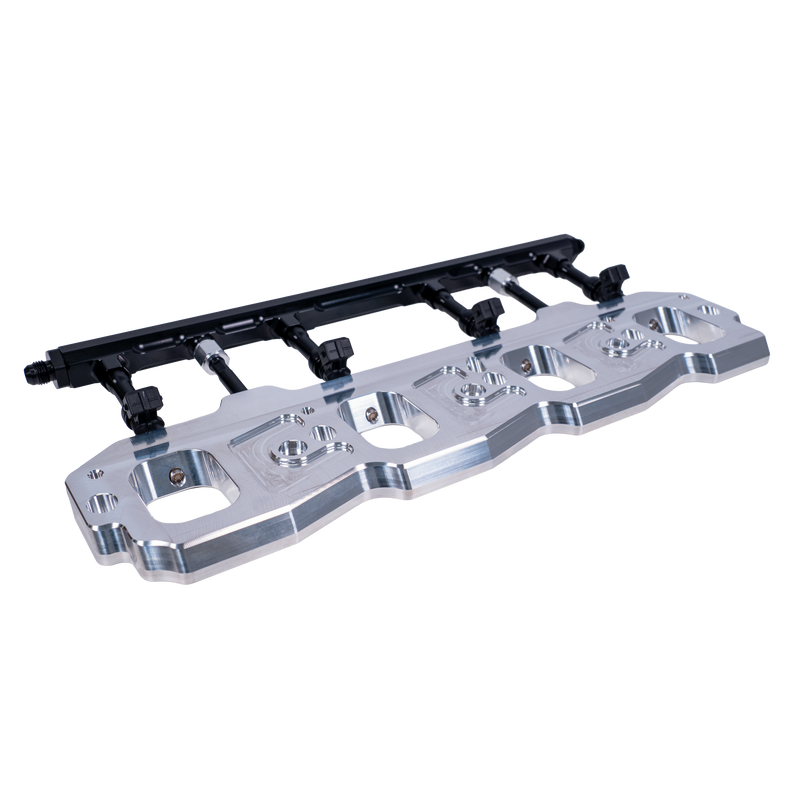

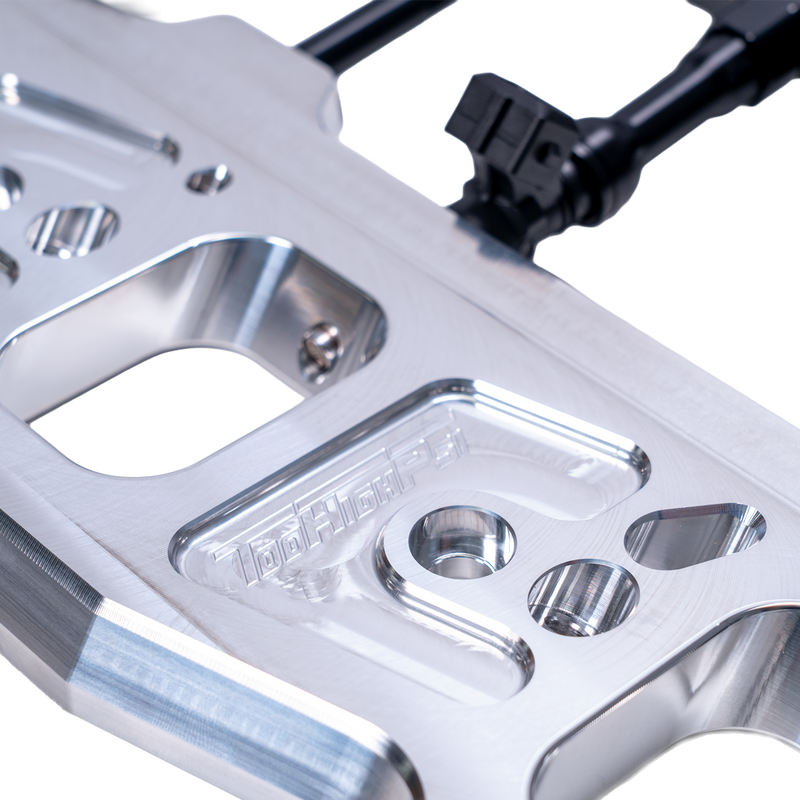

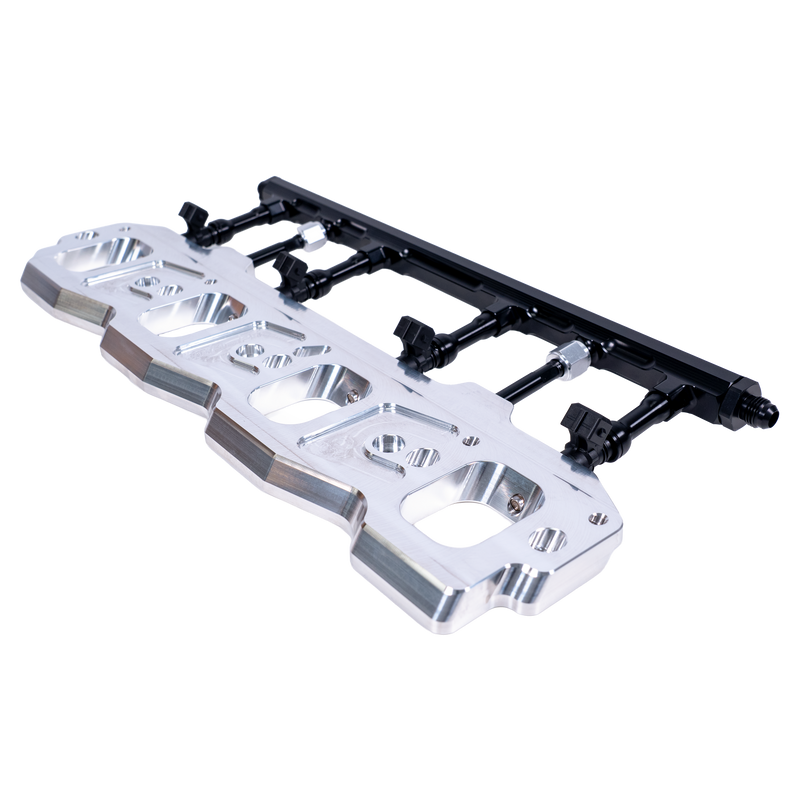

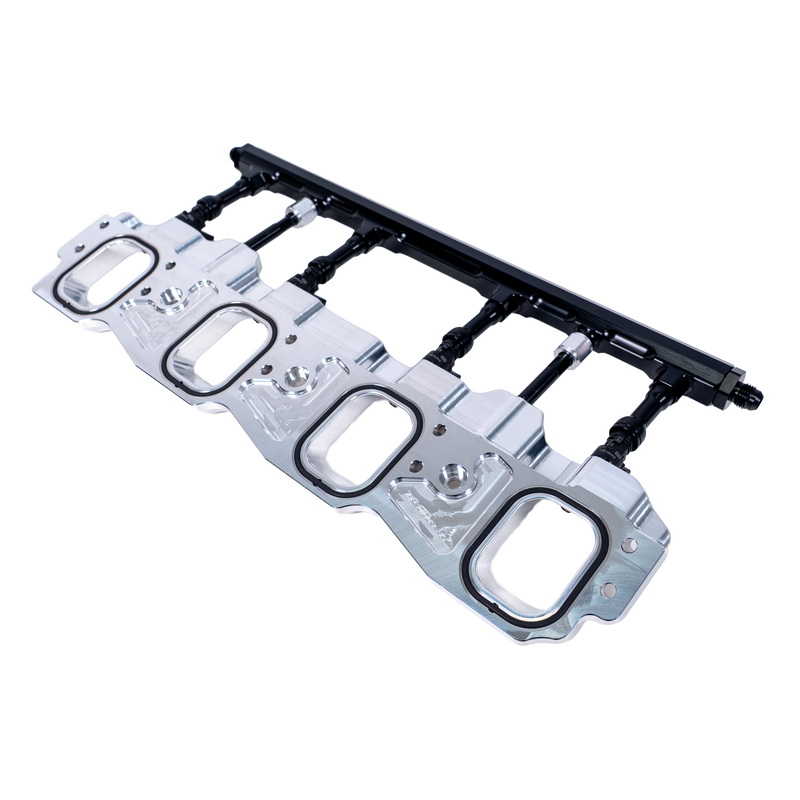

VINDICATOR SC Port Injection Plates - GM LTX / L8X

TooHighPsi VINDICATOR SC plates add secondary port injection to GM Gen V applications that retain stock-style valve covers and ignition-coil locations. Supported combinations include the factory LT4 TVS1740, Magnuson TVS2300, Whipple 2.9L and 3.0L, Harrop 2650, stock LT1 and truck intake manifolds, and many naturally aspirated, centrifugal-supercharged or turbo intake arrangements.

Select the correct engine/application hardware and either -6AN or -8AN fuel-rail fittings. The LT4 configuration includes the required PCV spacer. The LT4-supercharger-to-LT1-head option provides the conversion plate configuration for that combination.

Compatible engine families: LT1, LT4, L83, L84, L86, L87 and L8X.

Injector requirement: 34 mm short injectors with extended tips.

Important: These SC plates do not fit Magnuson Magnum 2650 superchargers. Use the TooHighPsi KATANA plates for Magnuson 2650 applications.

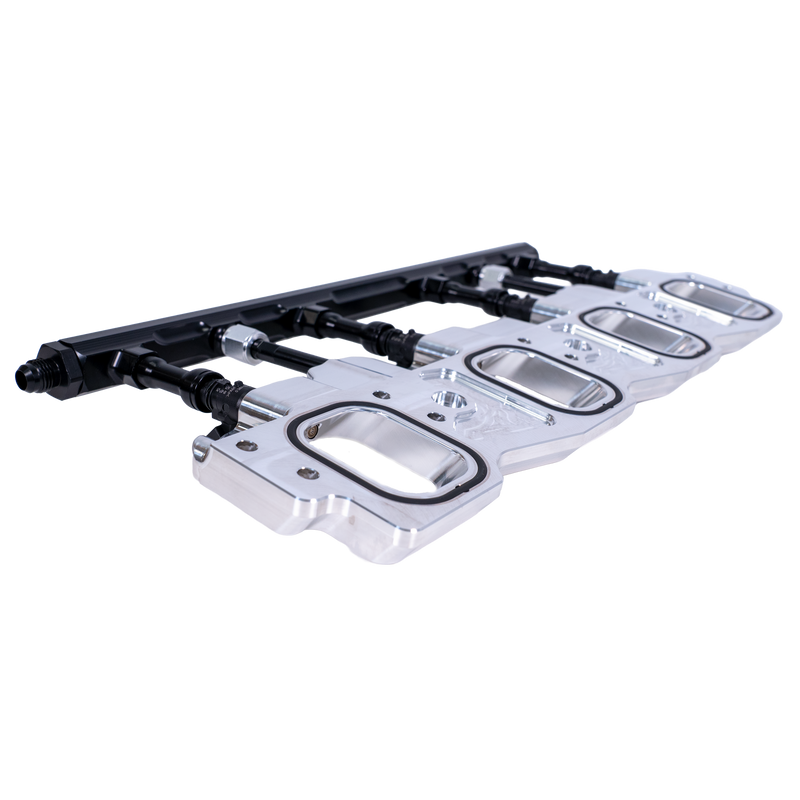

Package includes: two SC plates, eight injector extensions, eight retaining clips, two-port and three-port fuel rails, rail plug, four fittings, four rail brackets and application-specific mounting hardware.

Injectors and vehicle fuel lines are sold separately. For ground-vehicle use in a controlled environment.
