Photo - Primary
Availability: Available via special order

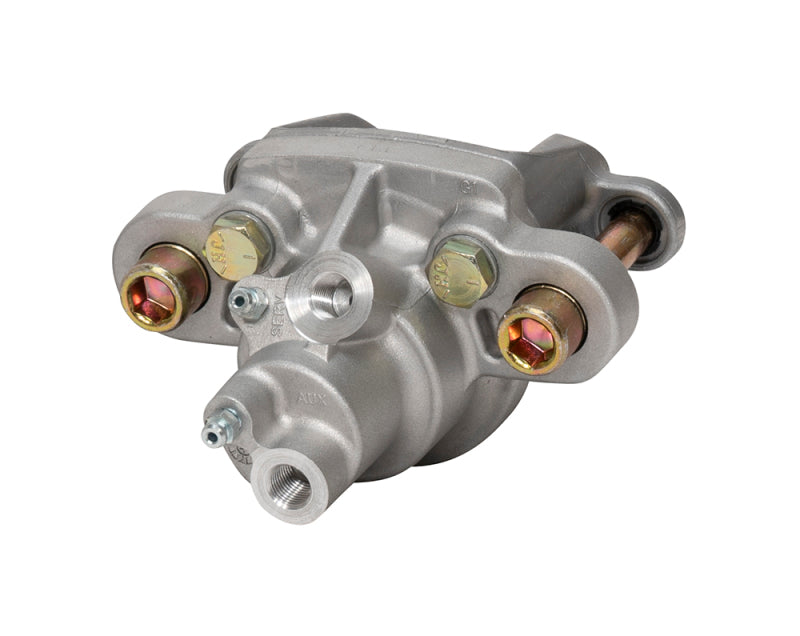

Wilwood caliper DH4 1.50/.94 .19 rotor

by Wilwood
Special Order Item: This item is supplied by special order. Availability and dispatch timing depend on the supplier; additional processing time may apply. Details
Special Order Save 7% Save 7%
$126.60
$126.60 - $126.60
$126.60
$117.22
$117.22 - $117.22
$117.22

Wilwood’s DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50” inches, secondary is .94 “diameter and is further isolated with dual 10mm x 1.00 fluid inlets. Designed for rotors no larger 9.00” diameter and .19” width. DH4 caliper feature a floating, single piston design with 3.38” wide slide pin mounting. The DH4’s Low squeeze version use a modified seal design to maximize piston retraction in applications where low drag is paramount. Calipers are supplied without brackets. Additional steel brackets are available.
