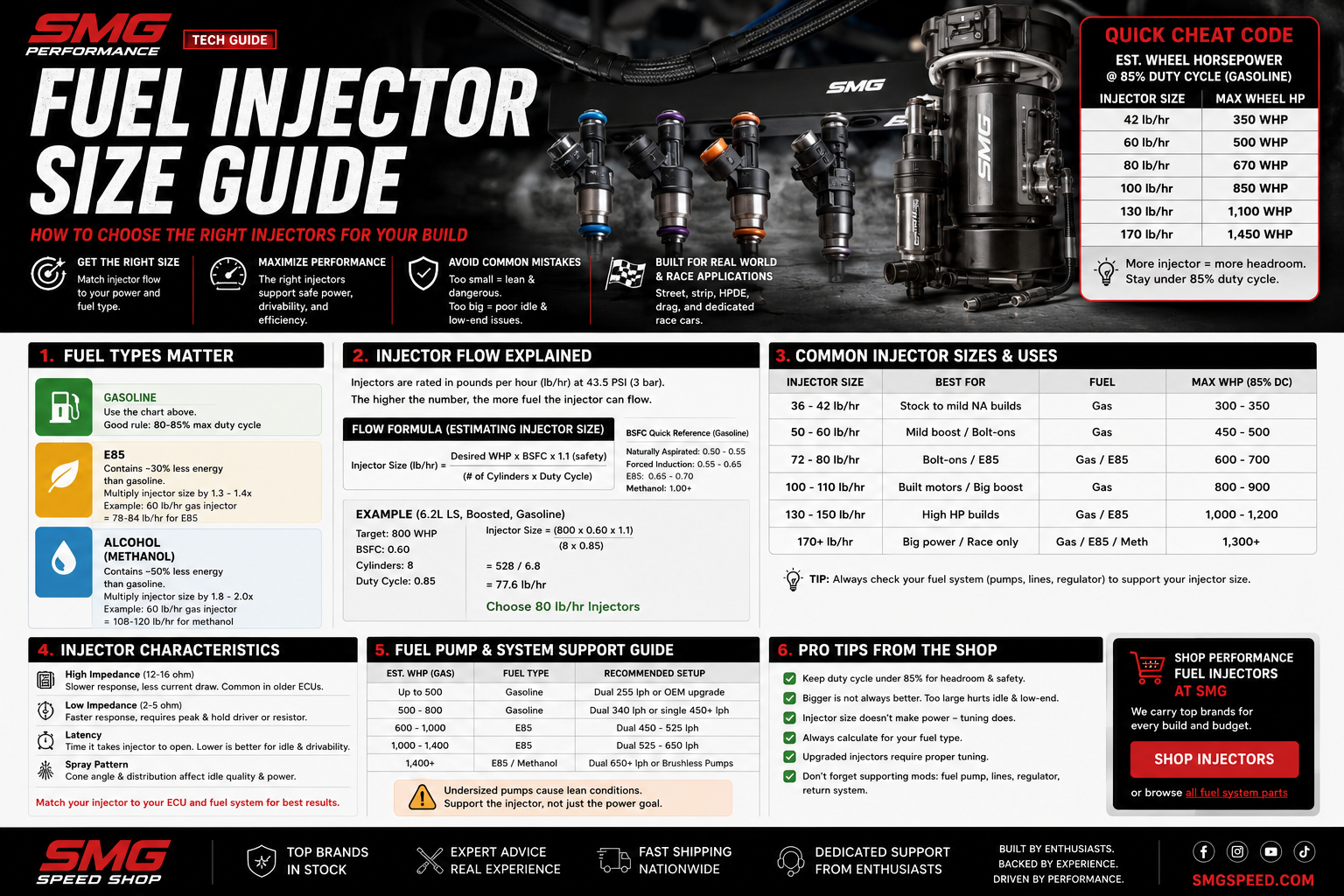

Fuel Injector Sizing Guide: How to Choose the Right Injectors for Gasoline, E85 and Boost
Choosing the correct fuel injector size is one of the most important decisions in any performance fuel-system build. An injector that is too small can run out of duty cycle, create a lean condition and limit horsepower. An injector that is poorly characterized, incorrectly installed or mismatched to the ECU can produce poor idle quality, difficult tuning and inconsistent fuel delivery.
This fuel injector sizing guide explains how to choose injectors for gasoline, E85, boosted engines, naturally aspirated combinations and dedicated race applications. We will cover injector flow rate, brake-specific fuel consumption, duty cycle, fuel pressure, cc/min versus lb/hr, injector headroom and the supporting fuel-system parts required to make the combination work correctly.
Shop fuel injectors at SMG Speed Shop or browse fuel-system components.
The fuel injector sizing formula
Injector size is not determined by horsepower alone. The engine's actual fuel demand changes with the power adder, fuel type, engine efficiency, commanded air-fuel ratio and the maximum injector duty cycle you are willing to use.
Injector flow per injector = (Target horsepower × BSFC) ÷ (Number of injectors × Duty cycle)
This calculation produces a required injector flow rate in pounds per hour when horsepower and BSFC are entered in the usual imperial units. If your target is wheel horsepower, account for drivetrain loss before calculating, or use a wheel-horsepower-specific estimate. After the math is complete, add practical headroom rather than selecting the smallest injector that barely meets the number.
What is BSFC?
Brake-specific fuel consumption, commonly shortened to BSFC, estimates how many pounds of fuel an engine consumes to make one horsepower for one hour. It is one of the most important variables in injector sizing.
- Naturally aspirated gasoline: commonly estimated around 0.45 to 0.55 lb/hp/hr.
- Forced-induction gasoline: commonly estimated around 0.55 to 0.65 lb/hp/hr.
- E85: normally requires approximately 25 to 35 percent more fuel volume than gasoline, depending on actual ethanol content and commanded lambda.
- Methanol: requires substantially more fuel volume than gasoline and often needs injectors roughly 1.8 to 2.0 times larger for a comparable power level.
These are planning ranges, not universal constants. Compression ratio, boost pressure, engine efficiency, fuel composition and the tuner's commanded mixture all affect the final requirement.
Why injector duty cycle matters
Injector duty cycle is the percentage of available engine-cycle time that the injector is commanded open. An injector operating at 100 percent duty cycle has no meaningful control or safety margin left.
For most performance street builds, we prefer to size around an 80 to 85 percent maximum injector duty cycle. This leaves room for voltage changes, fuel-temperature changes, ethanol-content variation, boost creep, future upgrades and real-world conditions that a simple calculator cannot predict.
SMG Shop Tip: Do not buy an injector that reaches your horsepower target only at 100 percent duty cycle. The correct injector should support the goal with usable headroom.
Worked injector-sizing example
Consider an eight-cylinder forced-induction gasoline engine targeting 800 crank horsepower. Using a BSFC estimate of 0.60 and an 85 percent duty-cycle target:
(800 × 0.60) ÷ (8 × 0.85) = 70.6 lb/hr per injector
That means a 72 lb/hr injector is the mathematical minimum. In the real world, we would usually select the next practical size up so the injector has operating margin and the build has room to grow.
If the same engine is converted to E85, the required fuel volume rises significantly. Applying approximately 30 percent additional fuel demand would move the practical requirement into the neighborhood of 92 lb/hr per injector before adding future-growth margin.
Gasoline versus E85 injector sizing
E85 does not automatically make an injector or pump flow less. The system must simply deliver more fuel volume to support the same power because ethanol contains less energy per unit volume than gasoline.
This is why a fuel system that is comfortable on pump gasoline can become marginal after an E85 conversion. Injector duty cycle rises, pump demand increases and pressure drop becomes more likely when the wiring, filters, lines or regulator are already near their limit.
When planning a flex-fuel build, size the injectors and pumps for the highest expected ethanol content, not the easiest gasoline operating condition.
cc/min versus lb/hr
Fuel injectors are commonly advertised in either cubic centimeters per minute or pounds per hour. Both describe flow, but the conversion changes slightly with fuel density and test conditions.
A commonly used gasoline shortcut is:
1 lb/hr ≈ 10.5 cc/min
Examples using that shortcut:
- 60 lb/hr ≈ 630 cc/min
- 80 lb/hr ≈ 840 cc/min
- 95 lb/hr ≈ 1,000 cc/min
- 123 lb/hr ≈ 1,300 cc/min
- 162 lb/hr ≈ 1,700 cc/min
- 210 lb/hr ≈ 2,200 cc/min
Do not assume two injectors with similar advertised flow are identical. Test pressure, test fluid, temperature, electrical characteristics and published characterization data all matter.
Fuel pressure changes injector flow
Injector flow is rated at a specific differential fuel pressure, often 43.5 psi or 58 psi. Changing pressure changes flow according to the square-root relationship:
New flow = Rated flow × √(New pressure ÷ Rated pressure)
A 60 lb/hr injector rated at 43.5 psi flows more at 58 psi, but increasing pressure is not free horsepower. Higher pressure raises pump load and reduces pump volume. On boosted return-style systems, the regulator must maintain pressure relative to manifold pressure. A system set to 58 psi base pressure and operating at 20 psi boost must supply approximately 78 psi rail pressure to preserve the intended injector differential pressure.
SMG Shop Tip: Rail pressure without boost reference can look acceptable at idle and still collapse under load. Always evaluate fuel pressure under the conditions where the engine makes power.
Static flow versus dynamic injector behavior
Static flow tells you how much fuel an injector can move when held open. It does not tell you how accurately that injector delivers very small pulses at idle, how repeatable it is at low pulse width or how it behaves as voltage changes.
High-quality performance injectors include accurate offset data, short-pulse adder data, pressure compensation and flow matching. This characterization is why a properly selected modern 1,300 cc or 1,700 cc injector can often idle better than an older, poorly characterized injector with a much smaller advertised flow rate.
Common injector sizes and practical use
The following are broad planning categories, not universal horsepower guarantees. Fuel type, base pressure, BSFC, cylinder count and duty cycle can move the number significantly.
| Approximate Injector Size | Typical Use | Planning Notes |
|---|---|---|
| 42 to 50 lb/hr | Mild naturally aspirated and older bolt-on combinations | Often quickly outgrown by boost or E85. |
| 60 to 80 lb/hr | Moderate boosted gasoline builds | Verify data quality and operating pressure. |
| 95 lb/hr / 1,000 cc | Popular entry point for boosted street cars and moderate E85 builds | Useful range, but not automatically enough for every 1,000-horsepower claim. |
| 1,300 cc | High-power gasoline and many E85 street builds | Good balance of headroom and controllability when properly characterized. |
| 1,700 cc | Serious E85, high boost and race-oriented combinations | Requires proper ECU data and full fuel-system support. |
| 2,200 cc and larger | Very high horsepower, ethanol-heavy or methanol applications | System design, wiring and tuning quality become critical. |
Direct injection changes the calculation
Modern LT, EcoBoost, Coyote direct-injection and other DI engines are limited by more than injector flow. The high-pressure fuel pump, pump lobe, commanded rail pressure, injector window and available crank-angle injection time all matter.
A direct-injection system can reach its limit even when the low-side pump appears adequate. Many high-output DI builds require a combination of upgraded high-pressure components, larger DI injectors, supplemental port injection or an auxiliary fuel system.
Search SMG port-injection systems and auxiliary fuel-system components.
Port injection and supplemental fueling
Supplemental port injection is common on late-model direct-injected performance engines because it adds fuel capacity without relying entirely on the DI system. The port injectors still need to be sized correctly, and the controller must be configured with accurate injector data, pressure information and load strategy.
Do not calculate supplemental injector size as though the port system supplies 100 percent of total engine fuel unless that is truly the strategy. Determine how much fuel the direct-injection system will reliably provide, then size the port system for the remaining demand with headroom.
The fuel pump must support the injectors
Larger injectors cannot compensate for an undersized pump. The pump must supply the total fuel mass at the rail pressure required under boost, through the actual wiring, filters, lines and regulator used in the car.
Fuel-pump flow ratings are often advertised at a lower pressure than the pump sees in a boosted application. As pressure rises, pump flow falls and electrical current demand increases.
Shop performance fuel pumps, fuel-pressure regulators and flex-fuel components.
Wiring, voltage and pump control
Voltage at the pump matters. A pump tested at 13.5 or 14 volts will not deliver the same flow if the vehicle supplies only 11.5 volts under load. Undersized wiring, poor grounds, weak relays and overheated connectors can turn an otherwise adequate pump into a fuel-pressure problem.
PWM-controlled pumps require correct controller capacity, wiring and calibration. Simply applying full power to a pump designed around controlled operation may create heat, fuel aeration or return-system problems.
Do bigger injectors hurt idle quality?
Injector size alone does not determine idle quality. Modern, well-characterized injectors can provide excellent idle quality at very large flow rates when the ECU has correct data and the tuner understands the system.
The usual causes of poor idle after an injector upgrade are incomplete injector data, incorrect offsets, poor minimum-pulse control, mismatched impedance, incorrect fuel pressure or low-quality injectors with inconsistent flow.
High impedance versus low impedance
Most modern street and performance ECUs are designed for high-impedance injectors. Low-impedance injectors may require peak-and-hold drivers or external control hardware. Never assume an injector is electrically compatible because the connector fits.
Injector connector, height and rail fitment
Flow capacity is only one part of fitment. Confirm:
- Injector body length and overall height
- Top and bottom O-ring diameter
- Connector style
- Fuel-rail and intake-manifold compatibility
- Required spacers or adapters
- Correct seat depth and clip retention
Many injectors share similar electrical connectors while using different mechanical dimensions. Always verify the complete fitment before ordering.
How much injector headroom should you buy?
For a build that is truly finished, 10 to 15 percent practical headroom beyond the calculated need is usually reasonable. For a project likely to receive more boost, a larger supercharger pulley change, a camshaft, nitrous or an E85 conversion, buying additional injector capacity now can prevent purchasing injectors twice.
More headroom is useful only when the injector has excellent characterization and the ECU can control it properly. The objective is not to buy the largest injector available. The objective is to buy the correct, controllable injector with enough room for the actual plan.
Fuel injector sizing mistakes to avoid
- Sizing from internet horsepower claims alone: Always include fuel type, pressure, cylinder count, BSFC and duty cycle.
- Using 100 percent duty cycle in the calculation: This removes safety margin and control authority.
- Ignoring boost-referenced pressure: Pump flow can fall dramatically at the required rail pressure.
- Assuming E85 is always exactly E85: Seasonal and regional ethanol content changes.
- Buying injectors without complete data: Flow rate alone is not enough for accurate tuning.
- Upgrading injectors but not the pump or wiring: The entire system must support the fuel demand.
- Choosing by connector appearance: Electrical and mechanical compatibility must both be confirmed.
Quick injector-selection guide
- Daily-driven naturally aspirated gasoline build: Prioritize accurate data, correct fitment and moderate headroom.
- Boosted gasoline street car: Use forced-induction BSFC, 80 to 85 percent duty cycle and verify pump flow at boosted rail pressure.
- E85 street or track build: Add approximately 25 to 35 percent fuel demand and size the pump, wiring and regulator accordingly.
- Direct-injected high-power build: Evaluate the high-pressure system, injection window and whether supplemental port injection is required.
- Race fuel or methanol combination: Use fuel-specific data and expect substantially greater total fuel volume.
Frequently asked questions
What size injectors do I need for 1,000 horsepower?
There is no single correct answer. A naturally aspirated gasoline engine, a supercharged E85 engine and a methanol race engine at the same horsepower require very different injector flow. Use the formula with the correct BSFC, fuel type, injector count, pressure and duty-cycle target.
Can injectors be too big?
Yes, particularly when they lack accurate characterization or the ECU cannot control the minimum pulse width. However, a properly characterized modern injector can often idle extremely well even when it has substantial flow capacity.
Is 85 percent injector duty cycle safe?
It is a common planning target for performance street applications because it leaves useful margin. The correct limit depends on the injector, ECU strategy, engine speed and application.
Do I need bigger injectors for E85?
Usually, yes. E85 requires more fuel volume than gasoline for the same power. The pump and supporting system must also be capable of the additional volume.
Does higher fuel pressure make an injector larger?
Higher differential pressure increases injector flow, but it also reduces pump flow and increases system stress. Pressure should not be used as a substitute for correct injector and pump sizing.
Should I choose injector size by crank horsepower or wheel horsepower?
Use the same basis throughout the calculation. If using wheel horsepower, account for drivetrain loss or use a BSFC and formula approach specifically intended for wheel output.
Final recommendation
The best fuel injector is not automatically the largest or most expensive option. It is the injector that physically fits, has complete tuning data, supports the target fuel and horsepower at a controlled duty cycle and works with the rest of the fuel system.
Plan the build as a complete system: injectors, pump capacity, wiring, filters, lines, regulator, sensors, controller and calibration. That approach produces a car that starts, idles, drives and makes power correctly instead of a combination that only works on a calculator.
