Hub Dyno vs. Chassis Dyno: Why Load Control and Repeatability Matter More as Power Climbs
Horsepower gets the headline, but repeatable data is what makes a high-performance build faster, safer, and easier to improve. As power levels climb, the test method matters more because small changes in tire temperature, wheel slip, heat soak, torque management, boost control, fuel pressure, or ignition timing can make a dyno graph look better or worse without telling you whether the vehicle actually improved.
That is why hub dynos have become such a useful tool for modern performance development. Instead of testing through the tire-to-roller interface, a hub dyno connects directly to the vehicle hubs. The goal is not to create a more impressive peak number. The goal is to remove one major variable, apply controlled load, and produce data that can be repeated while the calibration, cooling system, fuel system, and drivetrain are evaluated as a complete package.
Why this matters right now
The performance industry is leaning harder into engineering, measurement, and professional validation. On August 31, 2026, Performance Racing Industry announced that the 2026 PRI Show will include a new Motorsports Engineering Symposium focused on technical collaboration and advancing motorsports performance. PRI also reported more than 920 exhibitors occupying more than 360,000 net square feet for the December 10-12 show in Indianapolis.
SEMA is showing the same broader trend from another angle. In a September 2, 2026 update, SEMA highlighted growth in tires, wheels, and related service technologies, including balancing, alignment, and shop equipment. That matters because a modern performance car is not just an engine with parts bolted to it. The tire, wheel, suspension, calibration, fuel system, cooling system, and drivetrain all affect what the car can safely put to the ground.
Hub dyno vs. chassis dyno: what actually changes?
A traditional roller chassis dyno measures the vehicle through the driven tires. That is useful because the car is tested in a configuration that includes the wheel and tire interface. It is also convenient for many baseline pulls and broad before-and-after comparisons.
A hub dyno removes the driven wheels and attaches the dyno directly to the hubs. That eliminates tire slip and reduces variables associated with tire pressure, tire temperature, tire construction, wheel mass, and strapping force. On a high-output car, those variables can become increasingly important, especially when the tuner needs to hold the engine at a specific load or repeat the same operating point several times.
The key point is that a hub dyno is not automatically "more accurate" because it produces a different horsepower number. Different dynos use different measurement systems, correction standards, ramp rates, and test procedures. The value is repeatability and control. If the test setup is consistent, the tuner can make a change, repeat the test, and have more confidence that the difference came from the change rather than from the tire-to-roller interface.
Load control is more important than one peak pull
Peak horsepower is only one data point. A serious calibration may need to hold the vehicle under load to evaluate fuel pressure, lambda, injector duty cycle, spark advance, knock response, boost control, throttle angle, intake-air temperature, coolant temperature, transmission behavior, and torque-management intervention.
This is especially important on forced-induction combinations. A supercharged or turbocharged vehicle can make an excellent first pull and then lose power as charge-air temperature rises. A fuel system can look adequate during a short sweep but lose pressure during a longer high-load test. An electronic throttle can close because the ECU is protecting the engine or drivetrain. A boost-control strategy can overshoot during a transient even when the final peak number looks normal.
Controlled-load testing gives the tuner time to see those behaviors instead of simply chasing the tallest line on the graph.
Seven channels that matter more than the final horsepower number
1. Fuel pressure: A commanded air-fuel ratio does not matter if the fuel system cannot maintain the pressure required to deliver it. Direct-injection and port-injection combinations should be evaluated for pressure stability under the actual load the engine will see.
2. Lambda or air-fuel ratio: The tuner needs to know whether the engine is reaching the commanded mixture and whether it stays there through the entire pull.
3. Ignition timing and knock activity: A power increase caused by more timing is only useful if the engine can repeat it without uncontrolled knock or excessive correction.
4. Intake-air temperature: Heat changes air density and can trigger temperature-based spark or boost reductions. Intercooler efficiency and recovery between pulls matter on street and track cars.
5. Throttle angle: The pedal can be at 100 percent while the throttle blade is not. Electronic torque management can quietly reduce airflow, so logged throttle position is essential.
6. Boost or manifold pressure: A falling boost curve can point to belt slip, bypass behavior, wastegate control, airflow restriction, or a deliberate ECU intervention. The graph alone does not identify the cause.
7. Torque-management and transmission data: Modern GM, Ford, and Mopar platforms use complex torque models. Engine torque, requested torque, delivered torque, clutch behavior, gear selection, and transmission protection can all affect the result.
Why this is especially valuable for high-horsepower street cars
Street cars are often more complicated to validate than dedicated race cars because they must operate across a much wider range of conditions. A 900-horsepower street car still has to cold start, idle in traffic, survive Texas summer heat, shift correctly at part throttle, run accessories, and respond predictably when traction is limited.
That makes repeatable testing valuable for common SMG Speed Shop and North Texas High Performance combinations involving superchargers, turbo systems, camshafts and valvetrain upgrades, flex-fuel and E85 systems, port injection, high-pressure fuel upgrades, exhaust systems, cooling improvements, drivetrain parts, and calibration hardware. One change can alter several systems at once, so the build should be validated as a complete system rather than as a collection of advertised horsepower claims.
What NTHP's Mainline ProHub 3000CCS changes in the tuning process
North Texas High Performance uses a Mainline ProHub 3000CCS hub dyno for custom calibration, baseline and verification testing, diagnostic testing, remote tuner support, before-and-after testing, and other controlled dyno work. Because the dyno connects directly at the hubs, the shop can remove the tire-to-roller interface from the test and focus on controlled, repeatable data.
For a customer, that means the dyno session can answer better questions. Is the fuel system maintaining pressure? Is the intercooler recovering between pulls? Is the ECU closing the throttle? Is a pulley change actually making more airflow, or only more heat? Did a header, intake, camshaft, or calibration change improve the usable torque curve? Is the drivetrain behaving correctly under load?
Those answers are more valuable than a single hero pull because they determine whether the vehicle will repeat the performance outside the dyno cell.

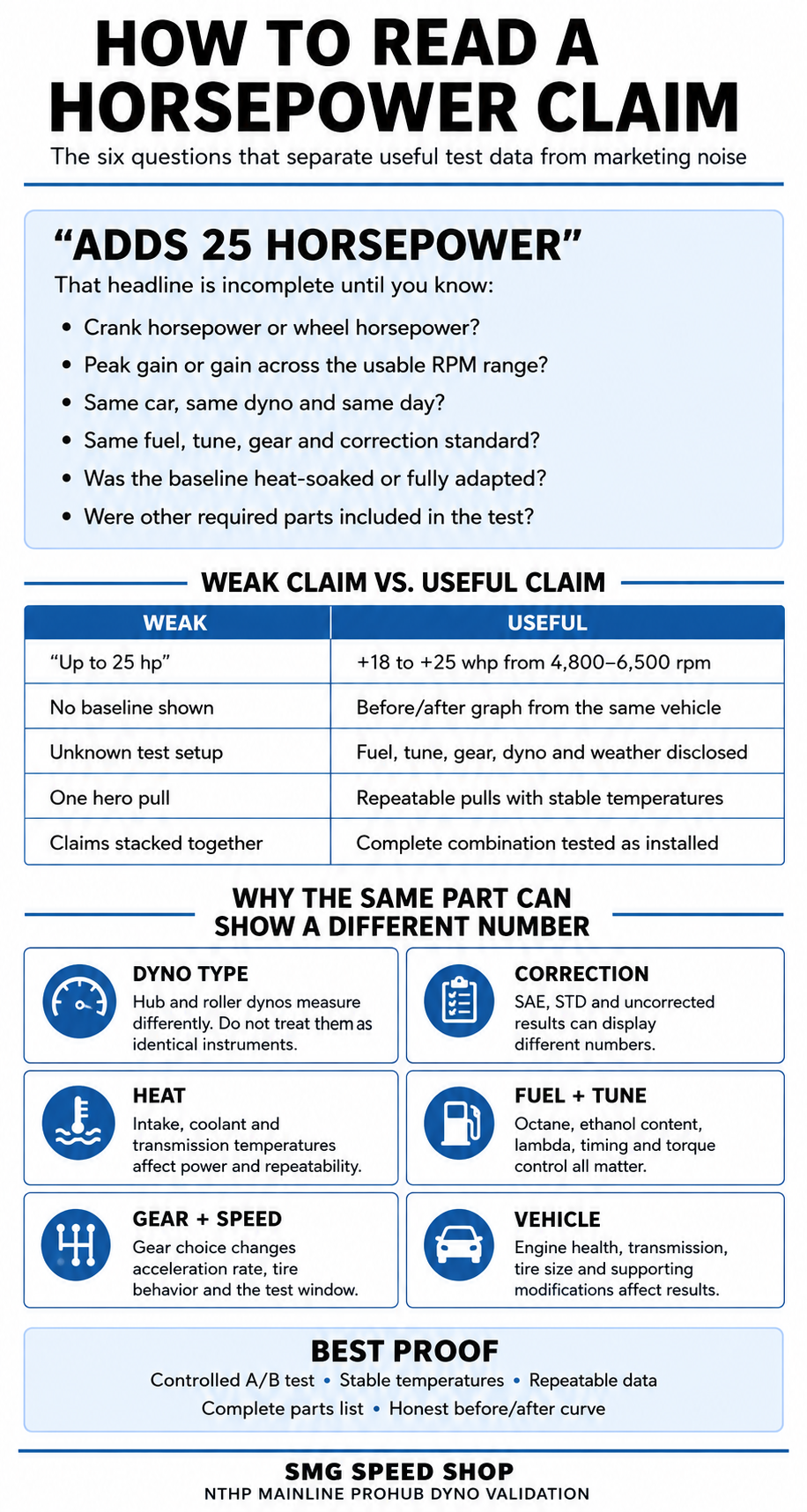

How to compare dyno results without fooling yourself
If you are comparing two tests, try to keep the dyno, correction method, gear, ramp rate, fuel, tire or hub setup, coolant temperature, intake-air temperature, and test procedure consistent. Comparing a roller dyno number from one shop to a hub dyno number from another shop is usually not a meaningful way to judge a modification.
The best comparison is a controlled before-and-after test on the same equipment under similar conditions. If the baseline and final pulls are repeatable, the change in the curve tells you far more than the absolute number.
When should you schedule dyno testing?
Dyno testing makes sense before a major modification when you want a clean baseline, after a fuel-system or forced-induction change, after a camshaft or airflow upgrade, when troubleshooting a high-load problem that cannot be safely reproduced on the street, or when verifying a completed build before it is returned to regular use.
If the vehicle has a known leak, misfire, mechanical noise, unstable fuel pressure, overheating problem, damaged tire, or other unresolved issue, that should be corrected before high-load testing. A dyno is a diagnostic and validation tool, not a substitute for basic mechanical readiness.
The bottom line
Modern performance tuning is moving toward better data, better control, and better repeatability. PRI's new engineering-focused programming and SEMA's emphasis on professional service technology both reflect the same reality: making power is only part of the job. Proving that a combination is stable, repeatable, and properly integrated is what turns a parts list into a finished performance vehicle.
For parts, fueling, forced induction, engine-management hardware, cooling, exhaust, drivetrain, and other performance components, visit SMG Speed Shop. For hub-dyno testing, calibration, diagnostics, and complete performance integration in North Texas, visit North Texas High Performance Dyno Services.
Frequently asked questions
Does a hub dyno read higher than a chassis dyno?
Not necessarily. Dyno numbers depend on the measurement system, correction method, ramp rate, test conditions, and many other variables. Do not use a simple fixed percentage to convert one dyno type to another.
Why remove the wheels for dyno testing?
Connecting directly to the hubs removes tire slip and tire-related variables from the driven-wheel interface, which can improve repeatability and make controlled-load testing easier on high-output vehicles.
Is a peak horsepower pull enough to tune a modified car?
No. A safe calibration also depends on fuel pressure, lambda, spark, knock activity, temperatures, throttle angle, boost behavior, torque management, and drivetrain response throughout the pull.
Can a hub dyno help diagnose a problem that only happens under load?
Yes. Controlled-load testing can help reproduce and log problems that may not appear at idle or during light driving, while keeping the test in a controlled shop environment.
