Lower Is Not Always Faster: The Suspension Setup Mistakes That Cost Grip
A lower car can look faster while becoming slower, less predictable and harder on tires. Ride height is only one part of a suspension system. Spring rate, damper control, bump travel, alignment, sway-bar balance, wheel fitment and tire grip all have to work together.
That is why the SEMA Wheel, Tire, Suspension & Brake Council is putting “How low is too low?”, spring-rate calculation, hidden suspension pitfalls, caster and camber on the agenda for its August 6, 2026 racecar-setup discussion. Those are not just race-team questions. They are the same questions that determine whether a lowered street car feels planted or simply feels harsh.
The Core Problem: Stance Is Not a Suspension Setup
Lowering the center of gravity can reduce weight transfer and body roll, but the benefit is not unlimited. As the chassis moves closer to the ground, several other things change at the same time:
- Available bump travel becomes shorter.
- The suspension can reach the bump stops sooner.
- Static camber and toe can move away from their intended settings.
- Roll-center height and suspension geometry can change.
- Tire, liner, exhaust and underbody clearance become tighter.
- Factory dampers can be forced to operate outside their best range.
A well-engineered lowering package accounts for those changes. A random combination of short springs, maximum-low coilover settings and an alignment that was never checked does not.
Ride Height Must Preserve Usable Suspension Travel
The tire needs the suspension to move so it can follow the road. If the car is lowered until it has almost no bump travel left, the bump stop becomes a major part of the effective spring rate. That can produce an abrupt increase in stiffness during cornering, braking or over a mid-corner bump.
The result can feel “tight” from the driver’s seat while actually reducing grip. Instead of allowing the tire to stay in contact with the pavement, the chassis can skip, unload or push across the surface.
For street cars, the correct ride height also has to leave practical clearance for driveways, road debris, exhaust components and full-lock tire movement. For drag, autocross and road-course cars, the target can be different, but the same rule applies: use all the travel the setup needs, not simply the lowest setting the hardware allows.
Spring Rate Supports the Car, but More Rate Is Not Automatically More Grip
Spring rate controls how much force is required to compress the spring. A rate that is too soft can allow excessive roll, dive, squat and bottoming. A rate that is too stiff can reduce compliance and make the tire lose contact on imperfect pavement.
Raw spring-rate numbers can also be misleading. The rate at the wheel depends on suspension motion ratio, spring position and geometry. Two cars can use very different spring rates and still have similar wheel rates. Even front and rear spring-rate numbers on the same car should not be compared without understanding where and how each spring acts.
A matched suspension package is valuable because the spring and damper are selected to work together. That is a better starting point than choosing a spring solely by advertised drop or selecting the highest available rate because the car is “performance” oriented.
Dampers Control Motion, Not Static Ride Height
The spring carries the vehicle. The damper controls how quickly the suspension moves. Rebound and compression damping influence how the chassis responds during turn-in, braking, acceleration, transitions and bumps.
Too little control can make the car float, oscillate or take multiple movements to settle. Too much control can make it nervous and cause the tire to skate over rough pavement. An adjustable damper is useful only when changes are made methodically:
- Start at the manufacturer’s recommended baseline.
- Confirm tire pressure and alignment first.
- Change one adjustment at a time.
- Use small changes and record the result.
- Return to baseline when the car gets worse.
Premium road-and-track coilovers commonly separate ride-height adjustment from spring preload and provide defined damping ranges. For example, current Öhlins Road & Track applications list individual height adjustment, spring-preload adjustment, specified spring rates and, on many applications, separate damper-length adjustment. The exact architecture varies by platform, which is why the installation manual for the exact kit matters.
Preload and Ride Height Are Related, but They Are Not the Same Thing
On a coilover with separate damper-length adjustment, ride height can often be changed without using spring preload as the primary height adjustment. On other designs, the spring perch directly affects both height and preload. There is no universal procedure that applies to every coilover.
Excessive preload, loose springs at full droop, incorrect shock length or an out-of-range ride-height setting can all create problems. Follow the kit manufacturer’s measured setup procedure instead of copying another car’s perch position or exposed thread count.
Alignment Is Part of the Installation
Lowering changes where the suspension sits in its travel, so camber, caster and toe must be checked afterward. Toe is especially important because a small error can create instability and rapid tire wear. More negative camber may improve cornering grip in some uses, but too much can reduce braking traction and wear the inside shoulders on a street car.
The correct alignment depends on the vehicle, tire, ride height and intended use. A daily-driven Camaro on street tires does not need the same settings as a trailered autocross car or a drag-focused Mustang.
Install the suspension, settle the car, torque everything at the correct ride-height position where required, then have the alignment measured by a qualified alignment shop. Do not assume the factory settings survived the height change.
Sway Bars Tune Balance, Not Total Grip
An anti-roll bar links the left and right suspension and changes roll stiffness distribution. In broad terms, adding front roll stiffness tends to move the balance toward understeer, while adding rear roll stiffness tends to help the car rotate. That is a tuning direction, not an absolute rule. Tire stagger, spring rate, damping, geometry, differential behavior and driving style all influence the result.
Adjustable sway bars are most useful when treated as one part of a known baseline. A bar should not be used to disguise bottoming, poor alignment or a mismatched spring-and-damper combination.
The Tire Is the Final Suspension Component
Every suspension decision reaches the pavement through the tire. A premium coilover cannot create grip that the tire does not have. Tire compound, width, pressure, temperature and sidewall construction all affect how the car responds.
Wheel size and offset also influence clearance, scrub radius, steering feel and available tire width. Before ordering a suspension and wheel combination, verify inner clearance, outer fender clearance, brake clearance and full-travel tire movement. Our earlier guide on proper wheel backspacing explains why wheel position is more than a visual choice, and our guide on why tires are the most important performance upgrade covers the part of the setup that actually contacts the road.
Street, Drag and Road-Course Cars Need Different Answers
Street Performance
Prioritize usable travel, controlled body motion, tire life, clearance and predictable behavior on imperfect roads. A moderate drop with matched dampers is usually more useful than maximum lowering.
Drag Racing
The setup must manage weight transfer, front extension, rear separation or squat behavior and tire loading. A stiff road-course setup can work against launch consistency, while an excessively soft setup can become unstable downtrack.
Autocross and Road Course
Platform control, camber support, transient response, temperature management and repeatability matter. The fastest setup is the one that keeps all four tires working through the entire corner, not the one that produces the least visible body roll in a photo.
A Better Suspension Buying Checklist
- Define the use: street, drag, autocross, road course or mixed use.
- Choose the tire first: grip level and size influence the rest of the setup.
- Select matched parts: springs and dampers should be compatible.
- Confirm the drop range: leave enough travel and clearance.
- Plan the alignment: determine whether additional adjustment hardware is needed.
- Check wheel fitment: suspension clearance changes with wheel width and offset.
- Install at baseline: use the manufacturer’s starting settings.
- Test methodically: change one variable at a time.
Build the Complete Package with SMG Speed Shop
SMG Speed Shop carries suspension components, performance tires, brake upgrades and wheels for complete street and track combinations.
Popular application-specific examples include:
- aFe Control lowering springs for the 2016+ Camaro V8

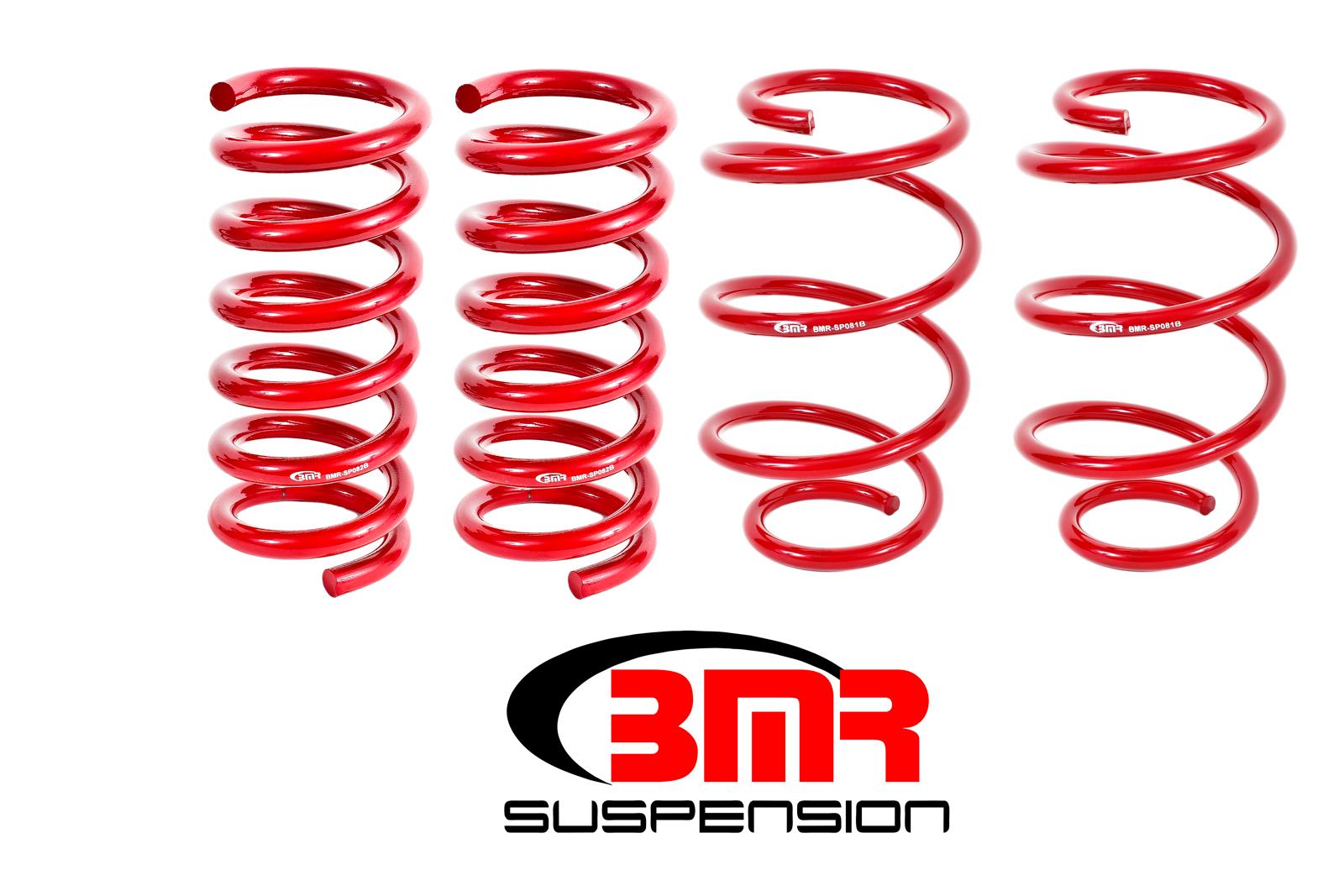

- BMR lowering springs for the fifth-generation Camaro V8
- Pedders adjustable front sway bar for the 2010-2015 Camaro
- Pedders adjustable front sway bar for the S550 Mustang
North Texas High Performance can professionally install suspension components, establish the manufacturer’s baseline ride height, inspect clearance and verify the complete combination before the vehicle is sent for final alignment. A proper setup should improve confidence and grip without turning every road imperfection into a problem.
Need help choosing the right spring, coilover, sway bar, wheel and tire combination? Contact SMG Speed Shop for parts guidance or North Texas High Performance for installation in Justin, Texas.
