SEMA Says Wheels, Tires & Suspension Are a $12.6B Market: 5 Fitment Numbers That Matter More Than Wheel Diameter

Wheels and tires are among the most visible changes you can make to a car or truck, but the best setup is not simply the biggest wheel and widest tire that will physically bolt on. SEMA's latest 2026 market data puts the U.S. wheels-and-tires aftermarket at $6.8 billion, while the broader wheels, tires and suspension category totals $12.6 billion. That scale makes sense: these parts change appearance, grip, braking feel, steering response, ride quality and, when chosen poorly, clearance and drivability.

SEMA's September 2026 update also emphasizes that professional installation remains important as vehicle platforms, tire technology and wheel fitments become more complex. For performance enthusiasts, the lesson is straightforward: wheel diameter gets the attention, but a handful of less glamorous numbers usually determine whether a package actually works.

Read SEMA's current tire-and-wheel market update here.

1. Wheel width sets the useful tire window

A wheel's first two dimensions, such as 18x8.5, tell you the nominal diameter and width. Diameter determines what tire bead diameter you need. Width helps determine which tire section widths are appropriate for the wheel.

The important part is that tire width is not a free-for-all. Tire manufacturers publish approved rim-width ranges for each tire size. Putting too much tire on a narrow wheel can distort the sidewall and tread profile. Stretching a tire onto a wheel that is too wide creates a different set of problems. Neither approach should be treated as a shortcut to fitment.

On a performance car, wheel width also interacts with suspension geometry and body clearance. A wider wheel gains space in both directions unless offset changes with it, so width can create interference at the strut, control arm, inner liner or fender even when the wheel diameter is unchanged.

2. Offset and backspacing decide where the wheel lives

Two wheels can have the same diameter and width yet sit in completely different places under the vehicle. Offset describes the relationship between the wheel centerline and the mounting pad. Positive offset generally places more of the wheel inboard. Less-positive or negative offset pushes more of the wheel outward.

Backspacing describes the distance from the wheel's mounting surface to the inner edge of the wheel. It is another way to understand how much room a wheel consumes toward the suspension side of the car.

That matters because a small offset change can affect more than appearance. Inner clearance, fender clearance, steering sweep, scrub radius and brake clearance can all change. Wheel Pros' current fitment guidance specifically calls out offset and backspacing as key dimensions affecting suspension, steering, brake and fender clearance.

Wheel Pros explains the core wheel specifications here.

3. Bolt pattern and center bore are non-negotiable basics

A wheel must have the correct bolt pattern for the vehicle. A specification such as 5x112 means five lug holes arranged on a 112 mm pitch circle. A close-looking pattern is not "close enough." The wheel, studs or bolts, and seat style all need to be correct for the application.

The center bore is the opening in the center of the wheel. It must provide the required hub clearance. Some aftermarket wheels use a larger center bore so they can support multiple applications, with application-appropriate hub-centric rings used where specified. That does not make center bore or wheel hardware optional details. Correct seating and torque are part of the fitment.

4. Overall tire diameter affects more than the speedometer

Changing tire diameter changes how far the vehicle travels per wheel revolution. That can alter effective gearing, indicated road speed and the relationship between wheel-speed signals used by ABS and stability-control systems. Wheel Pros notes that excessive overall-diameter changes can negatively affect the speedometer, gear ratios and ABS operation.

This is one reason a larger wheel does not automatically require a taller overall tire. Many plus-size packages use a shorter sidewall to keep overall tire diameter close to the original application while gaining wheel diameter or tread width.

On modified vehicles, the tire's actual section width and overall diameter should be checked rather than relying only on the size stamped on the sidewall. Different tire models in the same nominal size can measure differently, especially with aggressive performance tires.

5. Load rating and intended use still matter

Appearance and weight get most of the attention, but a wheel also needs adequate load capacity for the vehicle and use case. The tire needs appropriate load and speed ratings as well. A street-driven truck, a road-course car and a drag-focused build can ask very different things from a wheel-and-tire package.

Construction and intended use matter too. A lighter wheel can reduce unsprung and rotating mass, which can improve response, but "lighter" is not automatically "better" if the wheel's load capacity, construction, dimensions or application are wrong. The complete package has to match the vehicle.

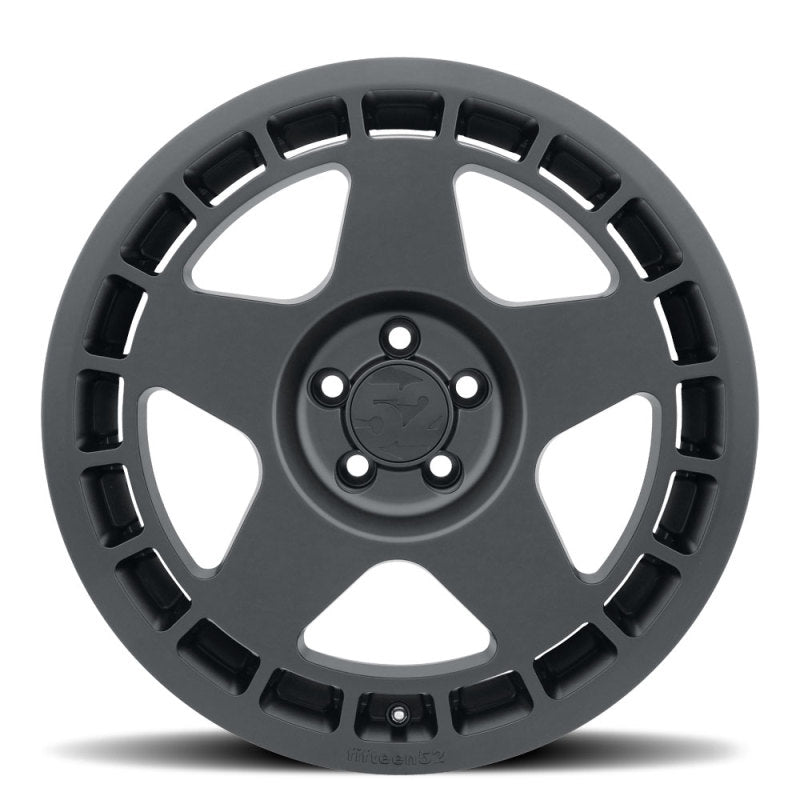

A real spec example: fifteen52 Turbomac 18x8.5

SMG's active fifteen52 Turbomac 18x8.5 wheel is a useful example because the product name exposes several fitment dimensions at a glance: 18x8.5 size, 5x112 bolt pattern, +45 mm offset and 66.56 mm center bore.

Those numbers are far more useful than simply saying "18-inch wheel." Before ordering any wheel, they need to be matched against the exact year, make, model, trim, brakes, suspension and intended tire size. Modified cars deserve another layer of checking because lowering, coilovers, big-brake kits and other chassis changes can alter available space.

Suspension and brake upgrades can change the answer

Wheel fitment does not exist in isolation. A suspension change can move the vehicle through a different range of travel or change static ride height. A larger brake package can require more spoke or barrel clearance even when the wheel's basic diameter and offset look correct.

That is why wheel planning should happen alongside the rest of the build. If you are changing springs, sway bars, control arms or other chassis hardware, our recent article on the BMR Suspension acquisition of Hotchkis Sport Suspension is a useful look at how broad the modern performance-suspension market has become.

For drag-race applications, wheel geometry gets even more specific. SMG also has a deeper guide to WELD wheel fitment, pad heights and backspacing, including the details that matter when brake packages and rear-suspension clearance become tight.

The right wheel package starts with measurements, not diameter

SEMA's $12.6 billion wheels, tires and suspension figure shows how large this part of the performance aftermarket has become. The catalog choices are enormous, but the engineering basics have not changed. Start with the vehicle, brakes and suspension. Confirm wheel width, offset/backspacing, bolt pattern, center bore, tire diameter and load requirements. Then choose the style.

Need parts for your setup? SMG Speed Shop can help source performance wheels, tires, suspension and related hardware. If your car is already modified and the project also involves suspension, brakes or other performance work, North Texas High Performance handles performance and custom installation work in North Texas so the complete combination can be evaluated as a system instead of a collection of unrelated parts.

Build the package around the car, not the catalog photo.
