Why Your Dyno Number Changed: SAE vs. STD, Weather, Gear Choice and Hub vs. Roller Testing

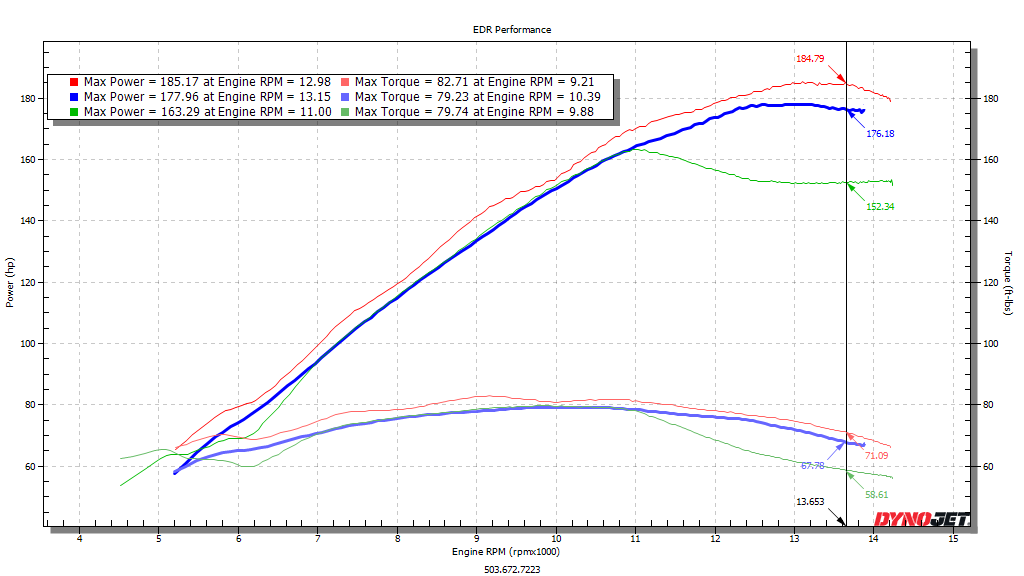

A dyno sheet looks simple: one horsepower number, one torque number and two lines sweeping across a graph. The test behind that sheet is not simple at all. A result is a measurement produced by a specific dynamometer, correction standard, gear, test rate, vehicle temperature and operating state. Change any of those variables and the number can move even when the hardware on the car has not.
That does not make dynamometers unreliable. It means they are precision tools that must be used consistently. The most useful comparison is usually not one car on one machine versus another car on a different machine. It is the same car, on the same dyno, with the same procedure, before and after a controlled change.
What a chassis dyno actually measures
An engine dyno measures an engine outside the vehicle. A chassis dyno measures the assembled vehicle through the driveline. A roller dyno measures through the wheels and tires. A hub dyno connects directly to the driven axle hubs.
That distinction matters because a wheel or hub number is not an OEM-certified crankshaft rating. Transmission design, converter behavior, differential temperature, tire behavior, bearing drag and many other variables sit between the crankshaft and the measuring device. This is also why adding a generic “15 percent drivetrain loss” to a chassis-dyno result is not a reliable way to calculate engine horsepower. Driveline loss is not one fixed percentage at every speed, load and temperature.
For a deeper introduction, see our earlier guide, The Shocking Truth About Dyno Differences. This updated guide focuses on the variables that most often explain why two legitimate tests produce different numbers.
SAE, STD and uncorrected results are not interchangeable
Engines breathe air, and the density of that air changes with temperature, pressure and humidity. Dyno software can apply a correction factor so results collected in different atmospheric conditions can be compared more fairly. Dynojet describes correction factors as a way to standardize power and torque measurements for ambient pressure, humidity and temperature.
SAE corrected and STD corrected are two different correction methods. They do not use the same reference conditions, so the displayed results are not expected to match. Uncorrected shows the result under the actual measured conditions without atmospheric normalization. None of those labels should be hidden when a graph is shared.
SAE International revised its J1349 engine-power test code on November 19, 2025. That standard is intended to produce repeatable measurements that reflect typical in-service engine performance. It is important to understand the boundary, however: J1349 is an engine power test code. Selecting an SAE correction option in chassis-dyno software does not turn a wheel or hub result into a certified crankshaft rating.
When comparing two sheets, first confirm the correction label. A car did not gain power merely because the second graph was displayed with a different correction method.
Weather correction cannot erase heat soak
Atmospheric correction helps account for the air entering the test cell. It cannot rewind the vehicle to the exact thermal state of an earlier run.
Intake-air temperature, intercooler temperature, coolant temperature, oil temperature, transmission temperature and fuel temperature can all change how the vehicle performs. Modern engine controllers may reduce ignition timing, close the throttle, limit torque, alter boost or enrich the mixture when temperature thresholds are reached. A supercharged or turbocharged car can therefore produce a lower number on a later pull even after weather correction has been applied.
A responsible procedure records temperatures and allows repeatable warm-up and cooldown periods. Cherry-picking the highest cold pull from one session and comparing it with a heat-soaked pull from another does not tell the truth about the parts or the tune.
Gear choice changes the test
The selected gear affects axle speed, engine acceleration rate, run duration and the amount of time the vehicle spends under load. The old advice to “always use the 1:1 gear” is not universally correct for every modern automatic, dual-clutch transmission or electronically managed driveline.
The correct approach is to select a safe, repeatable gear that fits the dyno speed range, maintains appropriate transmission operation and can be used consistently on future tests. Then document it. Comparing a shorter, faster pull in one gear with a longer loaded pull in another can change peak numbers and the entire shape of the curve.
Test rate and load control matter
An inertia-style sweep and a load-controlled ramp are different tests. A vehicle may respond differently when accelerated quickly versus held under controlled load for a longer period. Boost control, converter slip, intercooler recovery, fuel pressure and ECU torque strategies can all behave differently as run duration changes.
Load control is especially valuable for calibration because the operator can test steady-state cells, simulate road load and examine the vehicle under repeatable conditions rather than racing through the operating range. Mainline’s ProHub CCS systems support fixed-speed, fixed-torque, road-load and configurable ramp testing, along with continuous data acquisition.
Roller dynos add tire and strapping variables
A properly operated roller dyno is an effective tuning and development tool. It does, however, measure through the tire-to-roller interface. Tire pressure, tire temperature, compound, tread condition, wheel mass, strapping force and wheel slip can affect the result.
Changing from a heavy street wheel to a lightweight drag package can alter the test even when the engine tune is identical. So can changing tire pressure between sessions. If the goal is a valid before-and-after comparison on a roller dyno, the wheel, tire, pressure and strapping procedure should remain as consistent as possible.
What a hub dyno removes, and what it does not
A hub dyno connects its power-absorption modules directly to the driven hubs. Mainline explains that this removes the wheel, tire and tire-to-roller traction variables from the test. That improves repeatability and eliminates the risk of tire slip during a high-power pull.
It does not eliminate every variable. The operator still has to control correction method, gear, run rate, temperature, fuel, boost, ECU state and warm-up procedure. A hub dyno is not a magic number generator. Its advantage is that fewer uncontrolled mechanical variables remain between the vehicle and the measuring system.
North Texas High Performance uses a Mainline ProHub system for controlled tuning, steady-state testing, baseline work and repeatable validation. Mainline’s system includes weather measurement for live power correction, wideband lambda capability, boost-pressure inputs and configurable data channels. That allows us to evaluate the complete combination rather than chasing one headline horsepower number.
Smoothing changes the picture, not the vehicle
Graph smoothing reduces the visual noise in a plotted trace. A higher smoothing value can make a line look cleaner and can soften small spikes or dips. It does not physically change the vehicle.
Two graphs displayed with different smoothing settings can look surprisingly different. Always compare both the settings and the underlying data. An unusually sharp single-point spike is not the same thing as sustained power across the usable RPM range.
Peak horsepower is only one part of the result
A successful modification may improve average torque, throttle response, boost stability, fuel control or power across the entire operating range without producing the biggest possible peak number. The area under the curve often tells more about how the car will accelerate than one isolated point.
The supporting channels matter too. A proper test should consider air-fuel ratio or lambda, fuel pressure, injector duty cycle, boost, ignition timing, knock response, throttle angle and relevant temperatures. Our fuel-injector sizing guide explains why fuel pressure and differential pressure must be understood before an injector number is trusted. Our locked-ECU tuning guide explains why gaining controller access is only the beginning of a safe calibration.
The honest dyno comparison checklist
- Use the same dyno whenever possible.
- Use the same correction factor and display it on the graph.
- Use the same gear and test rate.
- Use the same fuel and verify ethanol content when applicable.
- Record coolant, oil, intake-air and transmission temperatures.
- Use a repeatable warm-up and cooldown procedure.
- Keep roller-dyno tire pressure, tire package and strapping consistent.
- Use the same smoothing and RPM pickup method.
- Review the curve and data channels, not only the peak number.
- Save a clean baseline before changing parts or calibration.
Why advertised gains do not always stack
Performance parts interact. An intake, headers, camshaft, fuel system, supercharger pulley and calibration do not each add their advertised peak gain in isolation forever. Once one restriction is removed, another may become the limiting factor. The ECU may also use torque models, airflow limits, fuel-pressure safeguards or transmission protections that must be addressed correctly.
This is why parts selection and calibration should be planned as one combination. SMG Speed Shop carries tuning hardware and programmers, including the HP Tuners MPVI3 Essential Package, HP Tuners credits, remote-tuning devices and the Pro Link plus AEM X-Series wideband package. We also support the intake, exhaust, camshaft, fuel-system and forced-induction hardware that creates the airflow and load the calibration must manage.
Use the dyno as a tool, not a scoreboard
The best dyno session answers practical questions. Is the vehicle safe? Is fuel pressure stable? Is the mixture controlled? Is the calibration repeatable? Did the modification improve the usable curve? Is torque management working with the transmission instead of against it?
For parts selection, tuning hardware or a complete performance combination, contact SMG Speed Shop. For professional installation, calibration, remote-tuner dyno rental, club dyno days or Mainline ProHub testing in Justin, Texas, contact North Texas High Performance. We sell fun, not frustration, and honest data is part of delivering the result.
