A 1000cc Injector Is Not Always a 1000cc Injector: Fuel Pressure, E85, Dead Time and Fitment Explained
Fuel injector shopping looks simple until the same advertised flow number produces very different results in two different cars. A listing that says “1000cc” does not tell you the pressure used for the rating, whether the injector will support the target fuel and horsepower, how it behaves at idle, or whether it physically fits the rail and intake. That missing context is why an injector can be large enough on paper and still be the wrong part for the build.
This topic is especially timely because SEMA recently highlighted DeatschWerks’ expanded universal import injector kits, covering popular four-cylinder and six-cylinder platforms with flow options from 550cc to 2400cc. The important part is not just the larger range. These kits pair the injectors with application-specific adapters, seals, connectors and tuning data, which is exactly what separates a complete fuel-system solution from a flow number in a product title.

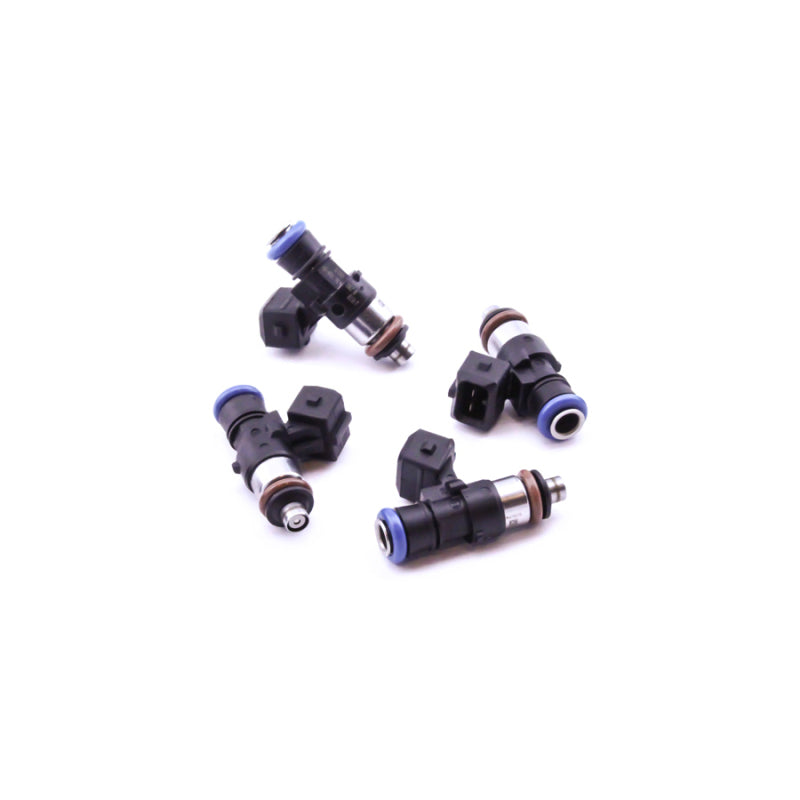

Click the image to open the full-size file.
What “1000cc” Actually Means
Injector flow is usually stated in cubic centimeters per minute, or cc/min, at a specific test pressure. That last part matters. DeatschWerks rates injector flow at 3 bar, or 43.5 psi. Another injector might be advertised at a different pressure, or the vehicle may operate at a different differential pressure than the test condition.
Flow changes with the square root of the pressure ratio:
New flow = rated flow × √(new differential pressure ÷ rated differential pressure)
For example, a 1000cc injector rated at 43.5 psi would theoretically flow about 1155cc at 58 psi differential pressure:
1000 × √(58 ÷ 43.5) ≈ 1155cc/min
That does not mean raising pressure is free horsepower. More pressure increases pump load, can reduce the pump’s available volume, raises electrical demand, and can move the system outside the range where the injector’s supplied characterization data is most accurate. Pressure is part of the system design, not a shortcut around choosing the right injector.
Differential Pressure Matters More Than Rail Pressure Alone
An injector flows according to the pressure difference across it. On a naturally aspirated engine, manifold pressure is near atmospheric at wide-open throttle, so rail pressure and differential pressure are often close enough that people use the terms interchangeably. Boost changes the math.
Consider a fuel rail held at 58 psi while the intake manifold reaches 15 psi of boost. The injector does not see 58 psi across the orifice. It sees roughly 43 psi differential pressure:
58 psi rail pressure - 15 psi manifold pressure = 43 psi differential pressure
A manifold-referenced 1:1 regulator raises rail pressure one psi for every psi of boost. At 15 psi boost, a system with 58 psi base pressure would target about 73 psi rail pressure, maintaining approximately 58 psi differential pressure. That helps keep injector behavior predictable, but only if the pump, wiring, lines, filter and regulator can maintain the commanded pressure and volume.
This is one reason NTHP logs fuel pressure under load instead of assuming a static shop reading tells the whole story. For a deeper explanation, read our guide to low-side and high-side fuel pressure under boost.
Gasoline, E85 and the Horsepower Target Change the Answer
A 1000cc injector does not support one universal horsepower number. Required injector size depends on fuel type, brake-specific fuel consumption, target horsepower, injector count, fuel pressure and the duty-cycle limit selected by the tuner or manufacturer.
E85 generally requires more fuel volume than gasoline for the same power output. The exact increase depends on actual ethanol content, commanded lambda, engine efficiency and the operating point. A car that runs pump E85 also needs enough margin for seasonal ethanol-content changes and the richer fuel demand of cold starts. This is why a flex-fuel build should be sized for the highest expected ethanol content and power level, not for the easiest tank of fuel the car happened to see on the dyno.
Injector duty cycle is also not a target to maximize. An injector that is already near its practical limit leaves little room for colder fuel, rising boost, pressure loss, a slightly richer commanded mixture or future modifications. Use the injector manufacturer’s data and your tuner’s recommended margin rather than planning around 100 percent duty cycle.
SMG’s fuel injector sizing guide walks through the core sizing math, while our seasonal E85 and ethanol-content guide explains why the fuel in the tank is another moving variable.
High Impedance and Low Impedance Are Not Interchangeable
Injector impedance affects how the ECU or injector driver controls current through the coil. Most modern high-impedance injectors are designed for saturated drivers. Low-impedance injectors can require peak-and-hold control or an appropriate external driver.
Installing the wrong electrical type can cause poor operation or damage. Do not assume an injector is compatible because the connector can be adapted or because the body fits the rail. The ECU, driver strategy and calibration must support the injector’s electrical characteristics.
Height, O-Rings, Connectors and Adapters Decide Whether It Fits
Universal injectors are not physically universal. Before ordering, confirm:
- Injector body height and effective O-ring-to-O-ring length
- Upper and lower O-ring diameters
- Fuel-rail and intake-manifold seat design
- Electrical connector style
- Required adapters, spacers, clips or pigtails
- Spray pattern and targeting for the intake port
- Available clearance around the rail, manifold and wiring
DeatschWerks offers common universal EV14 configurations in multiple heights for exactly this reason. A 40mm compact injector, 48mm configuration and 60mm long injector can share similar advertised flow while fitting very different rail and manifold combinations.
Current SMG examples include:
- DeatschWerks universal 40mm Bosch EV14 1500cc injectors, set of four
- DeatschWerks universal 60mm Bosch EV14 1500cc injectors, set of four
- DeatschWerks universal 40mm compact Bosch EV14 1200cc injectors
- DeatschWerks universal 40mm Bosch EV14 220 lb/hr injectors, set of four
- DeatschWerks 50 lb/hr injectors for 2010-2015 Camaro SS
- DeatschWerks 60 lb/hr injectors for 2010-2015 Camaro SS
The correct choice is the injector that satisfies the complete specification, not the product with the closest flow number.
Dead Time and Short-Pulse Data Determine How It Idles
Large injectors are often blamed for poor idle quality, but size alone is not the whole problem. At idle and light load, the commanded pulse width can be very short. The ECU needs accurate data for injector offset, sometimes called dead time or battery offset, plus short-pulse behavior and flow across the expected pressure range.
Injector opening time changes with battery voltage and fuel pressure. If the calibration uses generic or guessed data, the ECU may command the correct theoretical fuel mass but receive something different. The result can be unstable air-fuel ratio, poor cold starts, excessive fuel-trim correction, cylinder imbalance and inconsistent drivability.
Quality manufacturers provide characterization data for supported applications. DeatschWerks states that its data is developed in-house across pulse widths, voltages and pressures. That data gives the tuner a real starting point. It does not eliminate the need to validate the finished combination.
Modern controller access can add another layer. Before buying injectors for a late-model vehicle, confirm that the ECU can be accessed and that the calibration platform supports the required injector data. Our guide to locked ECUs, unlock services and HP Tuners credits explains why hardware access and calibration are separate parts of the job.
Matched Sets Matter
An eight-cylinder engine does not just need eight injectors with the same label. It needs injectors that behave closely enough across the useful operating range to maintain cylinder-to-cylinder consistency. Static flow matching is useful, but dynamic matching and low-pulse consistency become increasingly important as injector size grows.
Buy the correct cylinder-count set when available. Mixing individual injectors from different batches can create avoidable variation, especially when the supplier does not document the matching process.
The Injector Is Only One Restriction in the Fuel System
A properly sized injector cannot make up for a pump that runs out of volume, a voltage drop at the pump, an undersized filter, a restrictive line, a regulator that cannot maintain differential pressure or a direct-injection system whose high-pressure side is already at its limit.
A complete fuel-system review should include:
- Low-side pump flow at the actual operating pressure and voltage
- High-side pump and direct-injector capacity on DI applications
- Fuel-line and filter capacity
- Regulator type and return-system layout
- Pump wiring, relays, controllers and grounds
- Fuel composition sensor and flex-fuel strategy where applicable
- Fuel-pressure sensor range and data logging
Browse SMG’s current fuel injectors, fuel pumps, fuel-pressure regulators, flex-fuel components and DeatschWerks products.
Port Injection and Direct Injection Are Different Systems
Universal EV14 injectors are port injectors. They do not replace the direct injectors in a modern gasoline direct-injection engine. Some high-power DI builds add supplemental port injection, but that introduces another controller, fuel rail, injector set and calibration strategy.
On an LT, EcoBoost, Gen III Hemi, modern European platform or another direct-injected application, the correct answer may involve low-side pump capacity, high-pressure pump displacement, direct-injector window, supplemental port injection or a combination of all four. The total fuel system must be sized as one system.
Fuel Injector Purchase Checklist
Before placing the order, write down the following:
- Vehicle, model year, engine and ECU
- Fuel type and expected ethanol-content range
- Current power and realistic future power target
- Base fuel pressure and pressure-control strategy
- Boost level and expected differential pressure
- Injector count and recommended duty-cycle limit
- High-impedance or low-impedance requirement
- Injector height, O-ring size and connector
- Required adapters, seals, clips and pigtails
- Availability of complete tuning data for the ECU
- Low-side and high-side pump capacity
- Who will calibrate and validate the finished combination
Build the Fuel System Around the Combination
SMG Speed Shop carries application-specific and universal injectors, pumps, regulators, PTFE hose, fittings, flex-fuel hardware and tuning interfaces for street, race and high-horsepower builds. We can help identify the correct physical configuration and supporting parts before you order.
For customers in North Texas, NTHP can install the fuel system, calibrate the vehicle and validate pressure, injector duty cycle, air-fuel ratio, knock activity and temperature on the Mainline ProHub dyno. A dyno number is only useful when the fuel system remains controlled throughout the pull and under real operating conditions.
Need help matching injectors to your power target and fuel? Contact SMG Speed Shop with the year, make, model, engine, fuel, boost level and target power. For installation and tuning in Justin, Texas, visit North Texas High Performance.
Sources and Further Reading
- SEMA News: New Products From AMSOIL, Milwaukee Tool, CRUSH! and DeatschWerks
- DeatschWerks injector and fuel-system FAQ
- DeatschWerks injector tuning data
- DeatschWerks fuel injector calculator
Injector sizing examples are educational estimates. Always verify the exact injector data, fuel pressure, pump capacity, ECU support and manufacturer requirements for the specific vehicle before purchasing or tuning.
