Your Fuel System Isn’t One System: Why Boosted LT1/LT4 Builds Run Out of Fuel
“Fuel pressure is dropping” is not a complete diagnosis on a direct-injected LT1 or LT4. A boosted Gen V LT fuel system is a chain of separate systems, and each one can become the first restriction: the low-side supply from the tank, the cam-driven high-pressure fuel pump, or the direct injectors and the amount of crankshaft time available to use them.
That distinction matters because the wrong upgrade can leave the original problem untouched. Bigger injectors will not fix a low-side pump that is starving the high-pressure pump. A larger tank or auxiliary pump will not rescue a high-pressure pump that has reached its displacement limit. And stable rail pressure does not automatically mean the injectors still have enough usable injection window at high RPM.

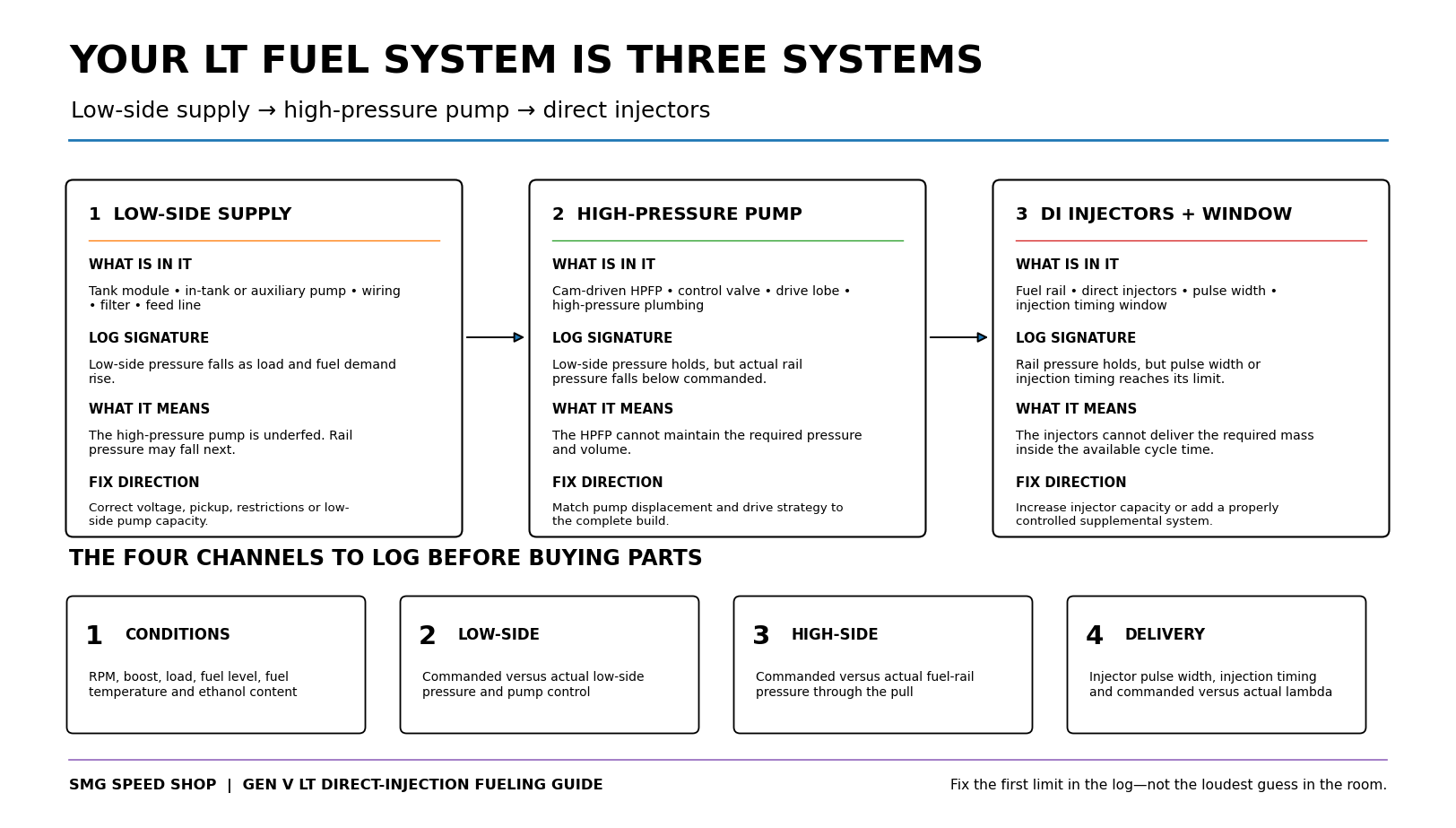

Click the LT fueling guide to open the full-size reference image.
Why an LT1/LT4 Fuel System Is Really Three Systems
Port-injected engines generally ask one pump system to maintain pressure at the rail while the injectors meter fuel. A factory direct-injected LT engine adds another major step. Fuel must first arrive at the engine through the low-side system. The mechanically driven high-pressure pump then raises that fuel to direct-injection rail pressure. Finally, the injectors must deliver the required fuel mass directly into the cylinder during a limited portion of the combustion cycle.
The complete path is:
- Low-side supply: tank module, in-tank or auxiliary pump, wiring, controller, filter and feed path.
- High-pressure system: cam-driven HPFP, control valve, pump drive lobe, high-pressure lines and rail.
- Direct-injection delivery: injector flow, pulse width, injection timing and the usable injection window.
Power level alone cannot identify which section will fail first. The result changes with engine airflow, boost, RPM, fuel type, camshaft fuel-pump lobe, injector size, pump control, voltage, fuel temperature and the calibration itself.
Stage 1: The Low-Side Fuel Supply
The low-side system has one job: keep the inlet of the high-pressure pump supplied with the commanded pressure and enough fuel volume. When low-side pressure falls under load, the HPFP may be perfectly healthy but physically unable to receive enough fuel to maintain rail pressure.
Typical causes include inadequate pump capacity, voltage drop, undersized wiring, a restrictive filter or feed path, pickup problems at low tank level, excessive fuel temperature, a controller or command issue, or a pump that cannot maintain its advertised flow at the actual operating pressure.
The telltale log pattern: actual low-side pressure begins separating from commanded pressure as airflow and load rise. High-side rail pressure may remain acceptable briefly and then fall because the HPFP is being starved.
Depending on the vehicle and power goal, SMG offers low-side solutions such as the SMG C7 auxiliary fuel system, the SMG sixth-generation Camaro auxiliary fuel system, the SMG “Big Boy” drop-in Gen V truck pump module and application-specific pump-control hardware.
Stage 2: The High-Pressure Fuel Pump
The LT high-pressure pump is driven mechanically by the engine. It must convert the low-side supply into the much higher rail pressure required by the direct injectors. Its available output depends on pump displacement, engine speed, the drive-lobe geometry and the pressure and volume demanded by the calibration.
The telltale log pattern: low-side pressure remains close to commanded, but actual rail pressure falls away from commanded rail pressure as load increases. That points the diagnosis toward HPFP capacity, pump control, mechanical drive, or another high-pressure-side problem rather than the tank pump alone.
For combinations that have outgrown the original pump, possible paths include an OEM LT4 high-pressure fuel pump for the appropriate application or a big-bore LT4 high-pressure fuel pump where the complete build and calibration support it. The correct choice must be based on the engine, camshaft fuel lobe, target fuel, injector package and actual logged demand—not simply the largest pump available.
Stage 3: Direct Injectors and the Injection Window
Even when rail pressure remains stable, a direct-injected engine can still run out of injector. As RPM climbs, each engine cycle takes less time. The calibration has a finite window in which fuel can be injected directly into the cylinder without creating other combustion or mixture-quality problems.
That means injector capacity is not only a static flow-rate question. It is also a timing question. The injector must deliver the required mass at the available rail pressure before the useful injection window closes.
The telltale log pattern: actual rail pressure tracks commanded pressure, but injector pulse width and injection timing approach their usable limits, or commanded lambda can no longer be achieved even though the pressure system still appears healthy.
SMG carries multiple injector paths, including OEM LT4 direct-injection injectors and FIC +30% LT1/LT4 direct injectors. For a broader explanation of injector calculations and why duty-cycle assumptions matter, see our fuel injector sizing guide.
Why Boost and E85 Expose the Weak Link Faster
Boost increases the mass of air entering the engine, so the engine must receive more fuel to maintain the same commanded air-fuel ratio. Ethanol blends also require substantially more fuel volume than gasoline for the same airflow and lambda. Put the two together and a system that looked comfortable on pump gas at lower boost can cross its limit quickly.
Actual ethanol content also changes from tank to tank and season to season. A flex-fuel sensor tells the ECU what is in the tank; it does not create additional pump or injector capacity. Read our E85 seasonal ethanol-content guide, and use an application-specific solution such as the SMG 2016–2024 Camaro SS/LT1 flex-fuel kit or SMG 2014–2021 Gen V truck/SUV flex-fuel kit when appropriate for the vehicle.
The Log Channels That Identify the First Failure
Do not diagnose an LT fuel system from one gauge or one peak number. Log the entire pull and compare the systems in order:
- Operating conditions: RPM, throttle, calculated load, boost, fuel level, fuel temperature, system voltage and measured ethanol content.
- Low-side data: commanded versus actual low-side pressure plus pump command or controller duty where available.
- High-side data: commanded versus actual rail pressure throughout the pull—not only at the end.
- Delivery data: injector pulse width, injection timing, commanded lambda and measured lambda.
| What the log shows | Most likely direction | What to inspect next |
|---|---|---|
| Low-side pressure falls first; rail pressure follows | Low-side supply limitation | Pump capacity, voltage, wiring, controller, filter, pickup and feed restrictions |
| Low-side pressure holds; rail pressure falls below commanded | High-pressure-side limitation | HPFP capacity, control, drive lobe, mechanical condition and calibration demand |
| Rail pressure holds; pulse width or injection timing reaches the useful window | Injector or DI-window limitation | Injector capacity, rail-pressure strategy and supplemental-fueling plan |
| Pressures look acceptable, but measured lambda drifts from commanded | Do not assume the fuel hardware is healthy | Sensor accuracy, calibration, fuel composition, uncontrolled supplemental fuel and mechanical issues |
Stop the test when actual rail pressure or measured lambda departs materially from the commanded values. Continuing a full-load pull to “see what happens” can turn a solvable fuel-system limitation into engine damage.
When Supplemental Fuel Makes Sense
Some combinations eventually reach a point where expanding only the factory direct-injection system is no longer the most practical path. A properly engineered auxiliary or port-injection system can add the required fuel volume, but it must be treated as a controlled part of the calibration—not an uncontrolled pump that simply turns on.
SMG offers purpose-built systems such as the C7 LTx inline twin-pump port-injection fuel system with solid-state PWM control and the sixth-generation Camaro/CTS-V LTx inline twin-pump system. System selection still depends on power, fuel, injector strategy, controller, available sensor data and the tuner’s intended failsafes.
Build the Complete Fuel System, Not the Loudest Part
The best LT fuel-system upgrade is the one that fixes the first measured constraint while preserving enough margin for the actual use of the vehicle. A street car that sees long pulls, road-course sessions or repeated dyno testing may need a different margin than a short-duration drag combination at the same peak horsepower.
Before ordering parts, document:
- Vehicle, model year and engine
- Power adder, pulley or boost level
- Target wheel horsepower and intended use
- Gasoline, ethanol blend or flex-fuel operation
- Current low-side pump, HPFP, injectors and camshaft fuel lobe
- Tuning platform and a clean datalog from a safe test
Any meaningful fuel-system change also requires calibration review. Our guide on when performance modifications require a tune explains why the hardware and calibration must be planned together. And when a car “breaks up” under boost but pressure and lambda remain correct, compare the symptoms with our high-RPM boosted ignition-misfire guide before blaming the fuel system.
Get the Right LT Fueling Solution from SMG
Do not buy three expensive parts to solve one unidentified problem. Use the log to determine whether the first limit is low-side supply, high-pressure pump capacity, injector delivery or the complete DI window. Then build the solution around the vehicle’s real power goal, fuel and use case.
Shop LT1/LT4 fuel-system upgrades at SMG Speed Shop, or contact the SMG team with your complete combination and log information so we can help point you toward the correct pump, injector, flex-fuel or supplemental-fueling path.
Technical note: Fuel-system pressure targets, injector limits and safe calibration thresholds vary by application and component. Always follow the exact manufacturer specifications and the direction of a qualified tuner.
