Is a 2-Micron Oil Filter Better? Full-Flow vs. Bypass Filtration Explained

A filter advertised to capture two-micron particles sounds automatically better than a conventional oil filter. It is not that simple. The finer number can be valuable, but only when the filter is used in the correct circuit and the system still supplies the engine with the oil volume it needs at cold start, high rpm and full load.

The timely example is Hot Shot’s Secret’s new Pure Diamond Bypass Filtration System, recently highlighted by SEMA News. The manufacturer describes it as a supplemental system that processes a controlled portion of the oil and captures solid contamination down to two microns. The key word is supplemental. It works beside the engine’s normal full-flow filter rather than replacing it.

The first rule: oil filtration is also a flow problem

An engine oil filter has two jobs that can compete with each other:

• Remove damaging solid contamination.
• Allow enough oil to reach bearings, valvetrain components, piston cooling jets, variable-cam systems and other lubricated parts.

Denser media can capture smaller particles, but it can also create more restriction. That restriction is called pressure drop, or differential pressure, meaning the pressure difference between the inlet and outlet sides of the filter. Pressure drop generally rises when the media becomes finer, when the oil is cold and thick, when flow demand increases, and when captured debris loads the filter.

This is why a micron number by itself cannot determine whether a filter is appropriate for a particular engine.

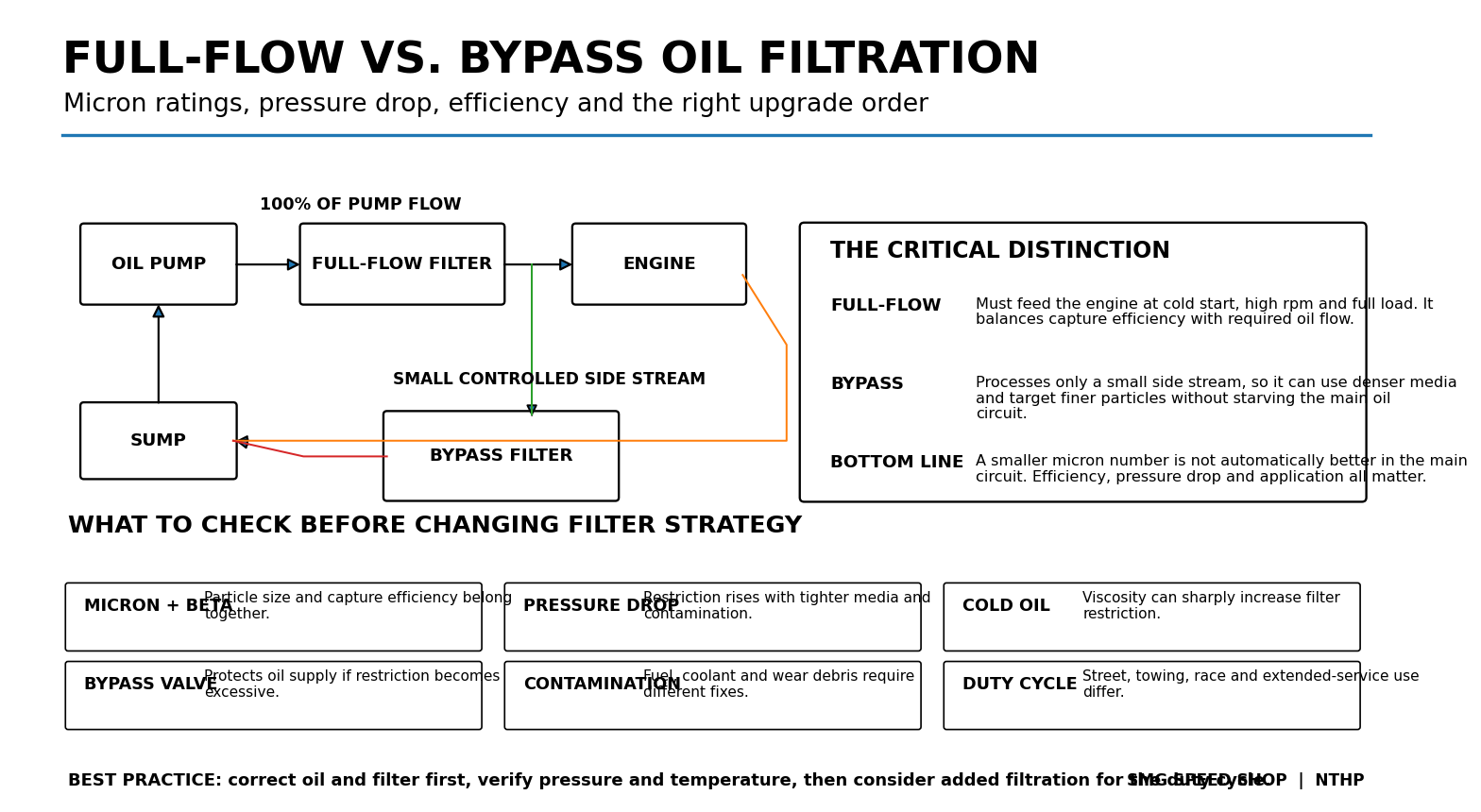

How a full-flow oil filter works

A full-flow filter sits in the engine’s primary lubrication circuit. In normal operation, essentially all oil delivered by the pump passes through it before reaching the engine. Because the entire oil supply has to move through that filter, its media, surface area, bypass strategy and housing must balance efficiency with flow.

During a cold start, oil viscosity is much higher than it will be at operating temperature. At high rpm, the pump is also trying to move more oil. If filter restriction becomes excessive, the engine or filter system’s bypass valve may open so the engine still receives oil. That may temporarily allow less-filtered oil downstream, but adequate oil supply is safer than starving the bearings while chasing a finer particle rating.

For a street or performance engine, the correct full-flow filter is therefore not simply the tightest filter that physically threads onto the mount. It is the filter designed for the application’s required flow, pressure range, bypass arrangement, oil viscosity and service interval.

How bypass filtration is different

A bypass filtration system diverts only a small, controlled stream of oil from the main circuit. That oil moves slowly through dense depth media and then returns to the sump. Because the bypass element is not responsible for feeding the entire engine at once, it can target much finer contamination without placing the same restriction in the main oil path.

Over time, repeated passes can reduce the concentration of fine wear metals, soot and dirt in the sump. This approach is common in high-mileage, fleet, towing, diesel, industrial and long-duration applications where the engine accumulates many operating hours and oil analysis is part of the maintenance program.

A bypass filter does not replace:

• The factory-style full-flow filter.
• Correct oil viscosity and specification.
• Reasonable service intervals.
• Oil-pressure and temperature monitoring.
• Repair of fuel dilution, coolant contamination, excessive blow-by or dirt ingestion.

What micron rating actually means

A micron is a unit of particle size, but “filters to 10 microns” is incomplete information. The meaningful question is: what percentage of particles at that size does the filter remove under a defined test?

That is why professional filtration data often includes a beta ratio or an efficiency percentage at a specified particle size. A filter that catches some 10-micron particles and a filter that catches nearly all of them can both be casually described as “10 micron,” even though their real performance is very different.

Terms such as nominal and absolute can also be used inconsistently in marketing. Compare tested efficiency data, not just the largest number on the box. Donaldson’s filtration guidance makes the same point: micron size has limited value without the associated efficiency or beta rating.

Why a very fine filter can be wrong in the main circuit

Pressure drop is not fixed. It changes with operating conditions. A filter that flows acceptably with hot oil at idle may behave very differently with cold oil at 2,500 rpm. A filter that is clean today may become restrictive after debris loading. A racing engine with a high-volume pump may place different demands on the element than the stock engine for which a filter was originally specified.

Watch for the variables that matter:

• Oil viscosity and temperature: Cold oil creates more resistance. An unnecessarily thick oil can compound the problem.
• Pump output and engine speed: More demanded flow generally creates more differential pressure across the media.
• Filter loading: Captured debris gradually closes available flow paths.
• Media area and construction: A larger, well-designed element can provide both efficiency and capacity.
• Bypass-valve calibration: The valve must match the engine’s intended oiling strategy.
• Installation quality: Incorrect adapters, undersized hoses, sharp fittings and poor routing can add restriction or leak risk.

Your dashboard oil-pressure number does not tell the whole story

A single oil-pressure sensor usually reads at one location. It does not automatically reveal the pressure difference across the filter, the oil temperature, aeration, pickup uncovering, or the pressure available at the far end of the oiling system.

When diagnosing a suspected filtration or oiling problem, useful data can include:

• Oil pressure before and after the filter, when practical.
• Oil temperature during the same event.
• Pressure behavior during cold start, hot idle and loaded high-rpm operation.
• Filter inspection after removal.
• Oil analysis for wear metals, viscosity change, fuel, coolant and contamination.

A pressure gauge that looks normal at idle does not prove that the system maintains adequate supply through a long pull, road-course corner, towing grade or repeated dyno run.

Five contamination problems a filter cannot repair

1. Fuel dilution: Fuel lowers viscosity and changes the lubricant’s chemistry. A particle filter cannot remove the underlying calibration, injector or mechanical cause.
2. Coolant contamination: A filter cannot make a leaking gasket, cooler or casting harmless.
3. Excessive blow-by: Worn rings or poor crankcase ventilation can overload the oil with combustion byproducts.
4. Dirt ingestion: Fine filtration may capture some dirt, but the intake leak, damaged filter or poor sealing still needs to be fixed.
5. Active component wear: A filter may catch debris from a failing bearing, lifter or timing component, but it cannot stop the failure that is generating it.

When bypass filtration makes sense

Bypass filtration deserves serious consideration when the vehicle sees long service hours, high annual mileage, towing, extended idling, diesel soot loading, endurance use, a large oil capacity or a maintenance program built around laboratory oil analysis.

For a weekend street car that receives frequent oil changes and sees limited mileage, a quality application-correct full-flow filter may remain the simpler and more cost-effective solution. The answer depends on duty cycle, not internet bragging rights.

The right upgrade order for a performance engine

1. Start with the correct oil specification and viscosity. Follow the engine builder or manufacturer’s requirements, then adjust only for a defensible operating reason.
2. Use a quality full-flow filter intended for the application. Confirm thread, seal, bypass arrangement, capacity and clearance.
3. Verify oil pressure and temperature. Data collected under the vehicle’s actual use is more useful than assumptions.
4. Fix contamination sources. Address fuel, coolant, intake sealing, PCV control and mechanical wear before trying to filter around them.
5. Add oil-temperature control where necessary. An application-correct cooler can help maintain viscosity during sustained load. See SMG’s thermostatic 2010–2015 Camaro SS oil-cooler kit and universal 19-row oil-cooler core.
6. Correct the oiling hardware when the build requires it. High-rpm or modified LT applications may need purpose-built components such as the Katech Gen V LT wet-sump oil pump, selected as part of a complete system rather than as an isolated “more pressure” upgrade.
7. Control crankcase oil carryover. Properly designed catch-can systems can reduce oil entering the intake tract. Examples include the 2016+ Camaro SS baffled catch-can kit and 2015+ Mustang EcoBoost baffled catch-can kit.
8. Consider bypass filtration for the right duty cycle. It should be engineered as a supplemental circuit with appropriate hoses, fittings, mounting and return location.

Browse SMG Speed Shop’s engine components for oiling, cooling, crankcase-control and supporting hardware. Product selection should be based on the engine, vehicle, power level and intended use rather than a universal rule.

Validate the system, not just the part

The same principle applies throughout a performance build: the result depends on the complete system. Our guide to diagnosing supercharger intercooler and IAT2 recovery explains why a single upgraded component cannot compensate for a bottleneck elsewhere. Our dyno-comparison guide also explains why repeatable test conditions matter when validating changes.

North Texas High Performance can help diagnose oil-pressure and temperature concerns, install oil coolers, pumps, sensors and catch cans, inspect crankcase-control systems, and validate a completed combination under controlled load on the Mainline ProHub dyno. Call 940-648-9393 or contact the SMG/NTHP team before ordering when the correct solution depends on the whole build.

Sources and further reading

• SEMA News: Hot Shot’s Secret Pure Diamond Bypass Filtration System
• Hot Shot’s Secret: Pure Diamond launch information
• Donaldson: Understanding beta ratings in liquid filters
• Donaldson Engine Liquid Filtration Guide: pressure drop

Technical note: This article provides general educational guidance. Always follow the engine manufacturer, engine builder and filter manufacturer’s specifications for your exact application.
