Your Supercharger Cooling System May Be the Bottleneck: How to Diagnose IAT2 Recovery
A supercharged car that loses power after the first pull does not automatically need a bigger heat exchanger. It may have an air pocket, a weak pump, poor airflow, a sensor problem or a cooling circuit that was never properly tested after installation.
This guide goes beyond the basic explanation of heat soak. The goal is to identify which part of a liquid-to-air intercooler system is limiting repeatable power before money is spent on parts that may not address the actual problem.
For the broader explanation of why modified cars feel slower in hot weather, start with our summer heat-soak guide. The procedure below is the next step: diagnose the supercharger cooling circuit itself.
Know what each part of the system is supposed to do
A typical positive-displacement supercharger cooling circuit contains five functional pieces:
- Intercooler brick: transfers heat from compressed intake air into coolant
- Electric pump: circulates coolant through the complete circuit
- Front heat exchanger: rejects coolant heat to outside air
- Reservoir or fill point: adds fluid volume and helps filling, service and bleeding
- Hoses, fittings and routing: connect the system without excessive restriction or trapped air
An upgrade should target the limiting function. A larger reservoir adds thermal capacity, but it does not create airflow. A larger heat exchanger adds surface area, but it cannot fix a pump that is not moving coolant. A stronger pump can improve flow, but it cannot overcome a kinked hose or a system that continuously traps air.
SMG carries application-specific intercoolers and heat exchangers along with complete forced-induction systems.
Step 1: Verify that the pump actually runs
Do not assume the pump operates because the car has no diagnostic code. Depending on the vehicle and installation, pump control may be tied to ignition state, coolant temperature, engine operation, a relay, a separate controller or calibration commands.
Use the correct service information for the application, then verify:
- The pump receives the expected voltage and ground
- The relay, fuse and connector remain stable under load
- The pump does not stop after vibration or heat exposure
- The pump direction and hose routing match the manufacturer’s diagram
- Coolant movement is visible or measurable at the correct fill or test point
A pump can make noise and still move inadequate coolant. Voltage drop, internal wear, cavitation or a restriction can reduce useful flow without making the pump completely silent.
Step 2: Look for air before blaming component size
Air is one of the most common reasons a liquid intercooler system behaves inconsistently. A trapped pocket can interrupt flow through the intercooler brick, reduce effective coolant contact and make the pump cavitate.
Warning signs include:
- Intermittent flow visible in the reservoir
- Gurgling after shutdown
- Temperature that rises sharply but recovers unpredictably
- A pump that changes sound as the vehicle angle changes
- Coolant level that drops after several heat cycles
Bleeding procedure matters. Some systems require the front or rear of the vehicle to be raised, the pump to be commanded continuously, a specific fill point to be opened or multiple heat cycles before all trapped air is removed. Follow the supercharger and vehicle manufacturer’s procedure rather than using a generic radiator-bleeding method.
Step 3: Establish the correct temperature channels
“IAT2” is commonly used to describe charge temperature after the supercharger and intercooler, but channel names vary. A vehicle may report manifold air temperature, manifold charge temperature, charge-air temperature or a modeled value.
Before comparing numbers, determine:
- Where the sensor is physically located
- Whether the channel is measured or modeled
- Whether a separate pre-compressor intake-temperature channel exists
- Whether the tuning scanner applies any unit or channel conversion
A cool airbox sensor does not prove the manifold charge is cool. Conversely, a hot manifold sensor immediately after a pull does not prove the heat exchanger failed. The useful information is the complete rise-and-recovery pattern under a repeatable test.
Step 4: Perform a repeat-pull and recovery test
Use the same fuel, gear, starting coolant temperature, correction factor and test procedure. Record at least three comparable pulls with a defined interval between them. Then continue logging during the cooldown period.
At minimum, log:
- Pre-compressor intake temperature when available
- Post-intercooler or manifold charge temperature
- Engine speed, vehicle speed and gear
- Boost or manifold pressure
- Throttle position and commanded torque
- Commanded and delivered spark advance
- Knock retard
- Lambda and wideband air-fuel data
- Low-side and high-side fuel pressure where applicable
- Engine coolant and transmission temperature
The HP Tuners MPVI4 and AEM wideband bundle provides the core hardware needed for many of these tests.
How to read the results
Pattern A: Temperature climbs every pull and barely recovers
This usually points toward inadequate heat rejection, inadequate airflow or insufficient coolant circulation. Verify pump flow and bleeding first. If those are correct, the front heat exchanger, airflow path or fan strategy may be the next limitation.
Pattern B: Temperature spikes rapidly even on the first pull
A very fast rise can indicate poor flow through the intercooler brick, trapped air, a restriction, an undersized brick for the compressor output or an incorrect sensor interpretation. Do not immediately assume the front heat exchanger is the only problem.
Pattern C: Temperature recovers while driving but not while stationary
This suggests an airflow problem. Inspect fan operation, ducting, shutters, blocked fins and air bypass around the heat exchanger. A dyno test also needs enough fan capacity and proper placement to represent road airflow.
Pattern D: Charge temperature is acceptable but power still falls
Look beyond the intercooler circuit. Fuel pressure, engine coolant temperature, oil temperature, transmission temperature, belt slip, throttle closure, knock response and calibration limits can all reduce power. Our article on why dyno numbers change explains why test conditions must remain controlled.
Measure coolant temperature when deeper diagnosis is needed
For advanced testing, temperature can be measured at strategic points in the low-temperature circuit. The exact sensor locations depend on the system, but useful comparisons may include coolant entering and leaving the intercooler brick and coolant entering and leaving the front heat exchanger.
The purpose is not chasing one universal temperature difference. Flow rate, sensor response, heat load and test duration all affect the measured delta. The goal is identifying whether heat is being picked up at the brick and rejected at the front core, and whether that behavior remains consistent through repeated load.
A circuit showing almost no temperature change can mean very high flow, very low heat transfer or a measurement problem. A large delta can mean strong heat transfer or inadequate flow. Interpret the measurement with pump operation, charge temperature and the full test procedure, not by itself.
When a larger heat exchanger is the right answer
A larger or more efficient heat exchanger is justified when the system has verified coolant flow, has been properly bled, receives adequate airflow and still cannot reject heat quickly enough for the intended use.
Choose by more than external dimensions. Consider:
- Core design and frontal area
- Airflow restriction in front of the radiator and condenser
- Sealing and ducting around the core
- Hose size and fitting restriction
- Vehicle use, including street, drag, road course or repeated dyno pulls
- Compatibility with the existing pump and reservoir
A core that blocks radiator airflow or is installed with large bypass gaps can solve one temperature problem while creating another.
When the pump is the limiting part
A pump upgrade makes sense when verified voltage is correct, the circuit is free of air and restriction, but flow remains inadequate for the system’s pressure drop and heat load. More pump is not automatically better. Excessive flow demand can increase electrical load, expose weak wiring or create cavitation if the inlet plumbing is poor.
Use relays, wire size, fusing and connectors appropriate for the pump. A high-capacity pump wired through an undersized circuit may perform worse than expected and create a reliability problem.
What a larger reservoir can and cannot do
More coolant volume increases thermal capacity. The system may take longer to heat up, which can be valuable for a short drag-racing pass or a limited test window. The reservoir can also improve fill access and air separation when designed correctly.
It does not replace the need to reject heat. After the larger fluid volume becomes hot, recovery still depends on the heat exchanger, airflow and pump. Choose reservoir volume for the vehicle’s use rather than treating it as a universal heat-soak cure.
Do not tune around a broken cooling system
Modern engine controllers can use intake or manifold temperature in spark, torque and boost-related calculations. Temperature protection and knock control are there for a reason. Removing sensible safeguards to preserve a dyno number can expose the engine to detonation and excessive component temperature.
Fix the cooling fault, verify fuel quality and pressure, then validate the calibration under hot conditions. Read our modern ECU access and tuning guide for the difference between gaining controller access and performing the actual calibration work.
A practical diagnostic order
- Confirm the exact sensor channels and save a healthy baseline log
- Verify pump voltage, operation and continuous coolant movement
- Inspect coolant level, leaks, restrictions and hose routing
- Bleed the system using the application-specific procedure
- Inspect heat-exchanger fins, ducting, fan operation and airflow bypass
- Run controlled repeat pulls and measure cooldown recovery
- Check fuel pressure, timing, knock, throttle and torque intervention
- Upgrade the heat exchanger, pump, reservoir or plumbing only after the limiting function is identified
- Repeat the same test to prove the result
Build a system that can repeat the power

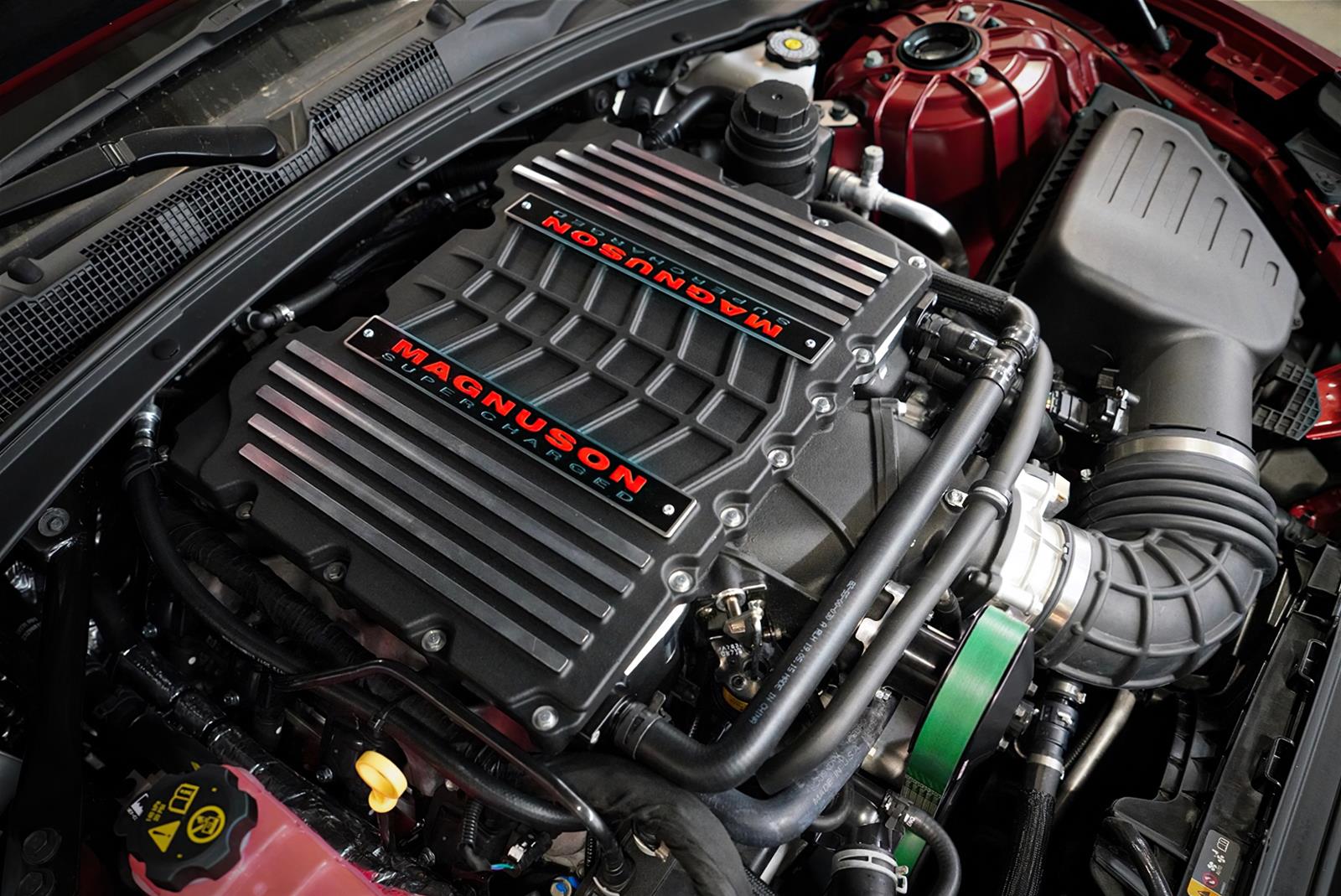

A package such as the Magnuson TVS2650R Camaro supercharger system relies on its intercooler circuit as part of the total power package. Pulley ratio, compressor efficiency, intercooler capacity, coolant flow, fuel system and calibration must work together.
SMG Speed Shop can source the correct heat exchanger, intercooler, pump, reservoir, tuning hardware and supporting components. North Texas High Performance can pressure-check and bleed the circuit, verify pump operation, install upgrades, datalog the vehicle and validate repeatability on the Mainline ProHub dyno.
We sell fun, not frustration. A strong first pull is good. A system that repeats the power in August is better.
