Boost Creep Is Not “Free Power”: Why Turbo Boost Keeps Climbing—and How to Fix It
Your tune calls for 15 psi, but the boost gauge keeps climbing to 17, 19 or even 21 psi as RPM rises. That is not the turbo “making extra power.” It is a control problem called boost creep, and continuing the pull can quickly turn a strong-running combination into an expensive failure.
Boost creep is especially common after a freer-flowing exhaust, larger turbo, higher-flow cylinder heads or other modifications increase the amount of exhaust energy reaching the turbine. The car may feel brutally fast, but the boost is no longer following the commanded curve. That can increase cylinder pressure, create knock, push the fuel system beyond its available headroom and overspeed the turbocharger.

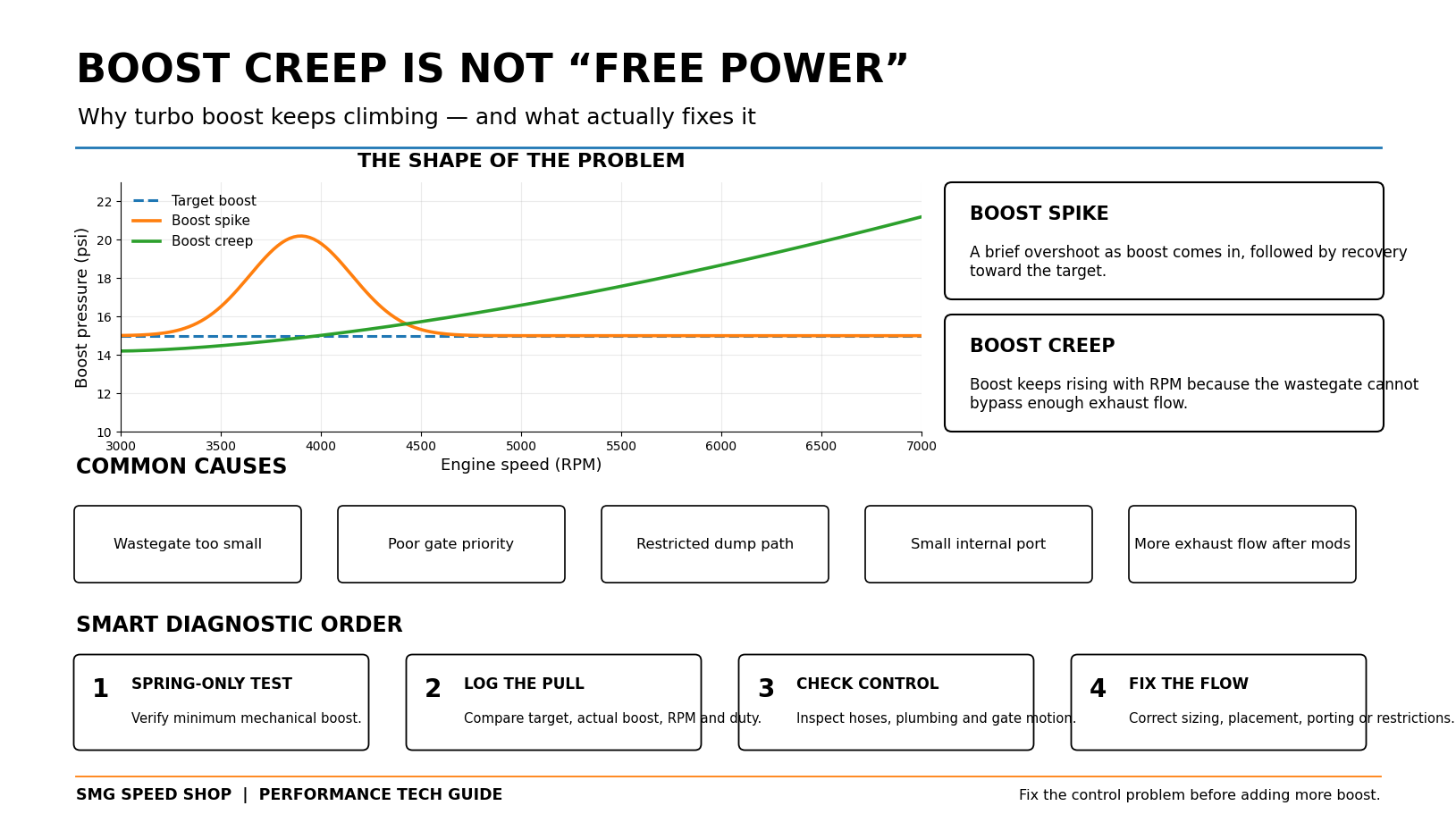

Click the boost-creep diagnostic guide to open the full-size image.
Boost Creep vs. Boost Spike: They Are Not the Same Problem
A boost spike is a brief overshoot during spool. Boost may jump above target as the turbo comes in, then settle back toward the commanded pressure. That can be caused by aggressive controller duty, slow wastegate response, incorrect plumbing or calibration.
Boost creep has a different shape. Actual boost keeps rising as engine speed and exhaust flow increase, even though the target remains flat. In a data log, the controller may already be reducing solenoid duty—or commanding the wastegate fully open—while manifold pressure continues to climb.
| Condition | Typical Shape | Most Likely Direction |
|---|---|---|
| Boost spike | Overshoots during spool, then recovers | Controller setup, plumbing, preload or calibration |
| Boost creep | Continues climbing with RPM | Insufficient wastegate bypass flow |
| Spring pressure too high | Stable, but above the desired minimum | Wastegate spring or actuator configuration |
What the Wastegate Actually Does
The wastegate controls turbo speed by diverting part of the exhaust flow around the turbine wheel. When the gate opens, less exhaust energy drives the turbine, which limits compressor speed and boost pressure.
That means the wastegate must do more than simply open. It needs enough valve area, a good exhaust-flow path and a dump or recirculation route that does not create excessive restriction. If exhaust gas strongly prefers the turbine path, or the bypass opening is too small, the gate can be fully open and still fail to control boost.
A boost controller can increase pressure above the mechanical spring setting by managing the pressure signal applied to the actuator. It cannot create a lower mechanical minimum than the spring and hardware allow. More importantly, it cannot electronically compensate for a wastegate path that physically cannot bypass enough exhaust flow.
Why Boost Creep Often Appears After Modifications
A combination may control boost correctly in stock form and begin creeping after a downpipe, exhaust, turbo, camshaft, cylinder-head or engine-displacement upgrade. That does not necessarily mean the new part is defective. The modification may have increased exhaust mass flow, improved turbine efficiency or reduced pressure after the turbine enough to expose a wastegate limitation that was already close to its limit.
This is why a vehicle can run a stable 12 psi before an exhaust upgrade and then climb several pounds at high RPM afterward. The turbo system is moving more air, but the bypass path did not gain any capacity.
Owners planning a broader forced-induction build should also review our guide to turbochargers vs. superchargers and our explanation of when performance modifications require tuning.
The Most Common Causes of Boost Creep
1. The wastegate is too small for the combination
Wastegate sizing depends on much more than a horsepower number. Turbo sizing, desired boost pressure, exhaust manifold design, engine displacement, fuel, turbine housing and the amount of exhaust flow that must be bypassed all matter. Low-boost, high-flow combinations can require more bypass capacity than many people expect.
2. Poor wastegate priority or placement
Exhaust gas follows the path of least resistance. A gate mounted at a sharp angle, far from the collector or where only part of the manifold flow reaches it may have poor “priority.” Even a physically large gate can struggle when the exhaust stream is aimed directly at the turbine and must make an abrupt turn to reach the bypass.
3. A restricted internal wastegate port
Internally gated turbine housings use a flapper and bypass port. If the port is too small for the new airflow level, boost can creep despite correct actuator operation. Porting may help some applications, but it must preserve the sealing surface, structural integrity and proper flapper coverage. This is precision work—not a place for random grinding.
4. A restrictive dump tube or recirculation path
An external gate still needs somewhere to send the bypassed exhaust. A small, crushed, poorly routed or highly restrictive recirculation tube can reduce effective gate capacity. The same applies to a dump tube with an obstruction or an outlet positioned in a high-pressure area.
5. Wastegate or boost-control hardware problems
A damaged diaphragm, sticking valve, excessive actuator preload, incorrect reference port, pinched hose, leaking fitting or incorrectly plumbed solenoid can prevent the gate from opening as intended. These faults may imitate creep or combine with a marginal wastegate path.
A Smart Diagnostic Order
Do not keep making full-throttle pulls to see how high it goes. If boost exceeds the safe calibrated range, lift and diagnose the problem in a controlled environment.
- Save a complete data log. Review commanded and actual boost, RPM, throttle position, lambda or air-fuel ratio, fuel pressure, ignition timing and boost-control solenoid duty. A rising boost curve while controller duty falls is a major clue.
- Verify the measurement. Confirm the MAP sensor calibration, gauge accuracy and pressure reference source. A bad sensor scaling can create a false diagnosis.
- Inspect the plumbing. Check every hose, tee, fitting and solenoid port against the controller and wastegate instructions. Verify that heat has not softened, split or pinched a reference line.
- Test on wastegate spring pressure. In a safe, controlled dyno environment, remove the boost controller’s influence and verify the mechanical boost curve. If boost still rises with RPM, the problem is likely in the wastegate, actuator or exhaust bypass path—not the electronic target table.
- Confirm full wastegate movement. Pressure-test the actuator and verify that the valve or flapper moves through its full range without binding. Inspect preload, diaphragm condition and mechanical interference.
- Evaluate the flow path. Check gate size, manifold priority, turbine-housing bypass port, dump tube and recirculation routing. Fix the physical restriction before trying to tune around it.
- Recalibrate and retest. Once the mechanical system controls spring pressure correctly, rebuild the boost-control strategy gradually and verify the result under the same load conditions.
Can Tuning Fix Boost Creep?
Usually not when the wastegate is already fully open. Calibration can correct an aggressive spool strategy, excessive solenoid duty, poor closed-loop settings or a boost spike caused by controller behavior. It cannot make an undersized or poorly positioned bypass path flow more exhaust.
One of the most useful diagnostic questions is: What is the controller doing while boost rises? If solenoid duty is still high, the control strategy may be contributing. If duty is near its minimum and boost continues climbing, the hardware is not achieving the requested mechanical control.
Do not confuse boost creep with the power loss and timing reduction caused by high intake temperature. Our article on summer heat soak explains that separate issue. If the engine breaks up rather than simply making excess boost, review our high-RPM boosted misfire guide as well.
What Actually Fixes Boost Creep?
The correct solution depends on the diagnosis, but common fixes include:
- A larger or more effective external wastegate
- Improved wastegate placement and collector priority
- Careful enlargement of an internal bypass port when the housing supports it
- A less restrictive dump or recirculation path
- Correct actuator preload, spring selection and pressure plumbing
- A properly installed boost-control solenoid and revised calibration after the hardware is corrected
SMG Speed Shop carries proven boost-control hardware, including the Garrett GVW-40 40mm wastegate kit, AEM X-Series Tru-Boost controller, GFB Atomic manual boost controller and Turbosmart eBoost2. Hardware must be selected for the specific turbo system, target pressure and control strategy; the most expensive controller cannot compensate for the wrong wastegate configuration.
The Bottom Line
Boost creep is a warning that the turbo system is losing control of exhaust energy as airflow rises. Treating the extra pressure as a bonus can exceed the tune, fuel system and turbocharger limits without warning. The right process is to log the problem, verify spring pressure, inspect the complete control system and correct the wastegate flow path before adding more boost.
