The C8 Z06 Shares About 80% of Its Engine With the GT3.R: What That Means for LT6 Mods

The C8 Corvette Z06 was never just a Stingray with a bigger engine. Chevrolet built the 5.5-liter LT6 around a flat-plane crankshaft, dual overhead cams, dry-sump oiling and an 8,600-rpm redline. Now GM is putting a fresh number on just how closely that production engine is tied to its racing program: in an August 19, 2026 story, GM said the road-going Z06 shares about 80% of its engine components with the Corvette Z06 GT3.R race car.

That does not mean the street engine and the GT3.R engine are identical. It does mean the Z06 starts with unusually serious hardware, and it changes the way owners should think about modifications. On a naturally aspirated engine that makes 670 hp at 8,400 rpm, airflow quality, heat control, repeatable testing and the interaction between parts matter more than simply bolting on the largest component available.

GM’s latest number: about 80% shared engine content

GM’s August 19 motorsports technology story says the Corvette Z06 shares about 80% of its engine components with the Z06 GT3.R. Chevrolet has been documenting that relationship for years. When the GT3.R was introduced, Chevrolet said the race engine originates from the Performance Build Center in Bowling Green, Kentucky, on the same line as production Z06 engines, before receiving race-specific components.

Earlier Chevrolet technical material identified shared pieces including the crankshaft, connecting rods, cylinder heads, fuel injectors, coils, gaskets and multiple sensors. The production LT6 itself is a 5.5-liter DOHC V8 with a flat-plane crankshaft, forged titanium connecting rods, CNC-machined cylinder-head ports and combustion chambers, an active split intake manifold with twin 87 mm throttle bodies, and a six-stage dry-sump oiling system.

The key point is not that a street Z06 is secretly a GT3 race car. The key point is that the production engine was developed with an enormous amount of racing influence and endurance-test feedback already baked into the architecture.

Why the LT6 changes the usual bolt-on conversation

Many traditional American V8 combinations make their gains by moving more air at relatively modest engine speed. The LT6 is different. Its entire personality comes from breathing efficiently at very high rpm. That makes the shape, volume and pressure loss of the intake path especially important, while also making repeatable testing critical.

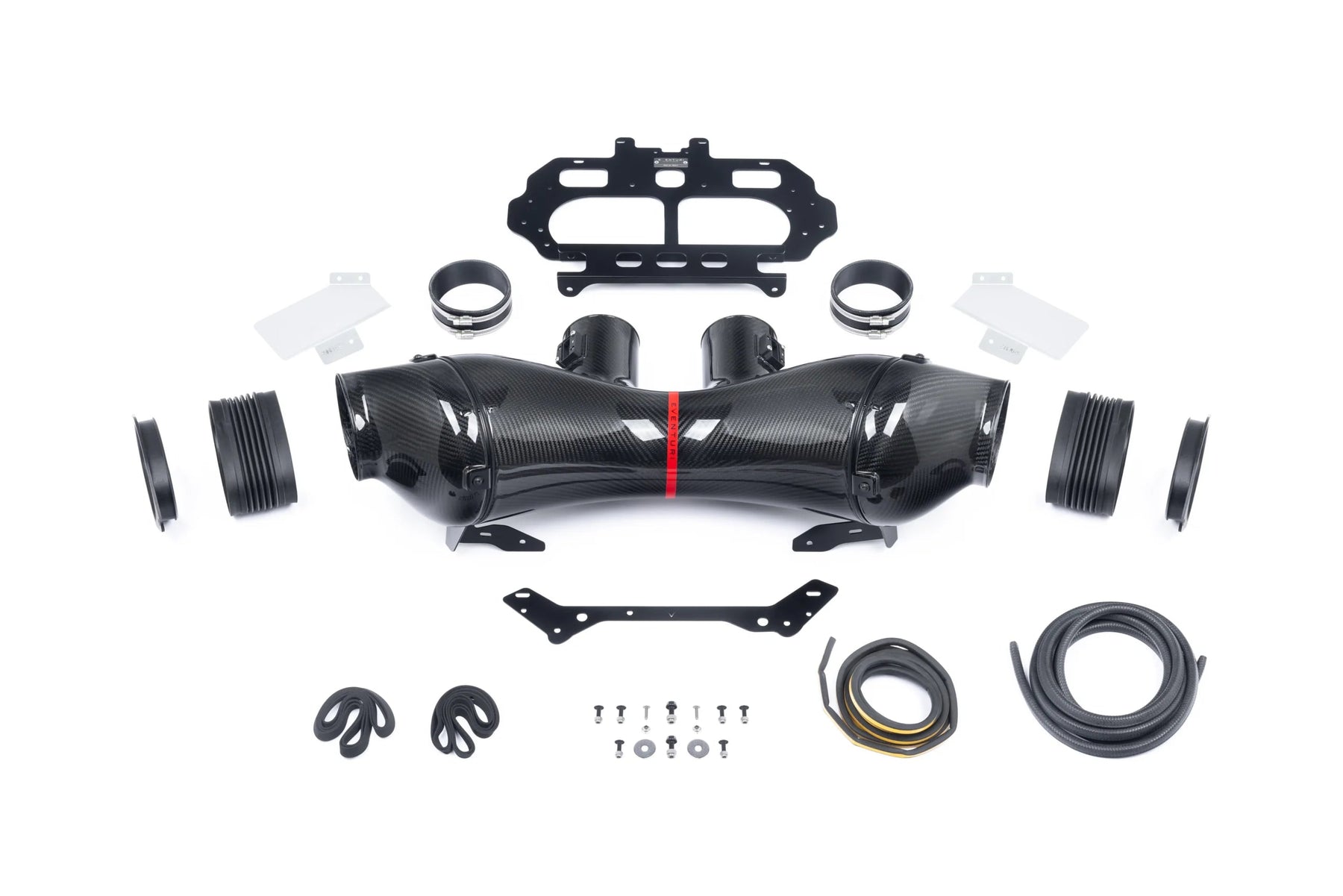

A useful example is the Eventuri carbon-fiber intake for the 2023–2024 C8 Z06 Coupe currently offered by SMG. Eventuri says its design increases system volume and uses its double-Venturi filter housing to reduce restriction compared with the factory airbox packaging.

In Eventuri’s published development testing, the company reports a 19-whp peak gain and an 18-lb-ft peak torque gain, with gains of up to 42 whp and 44 lb-ft in the midrange. Those are manufacturer-reported results, not a guarantee for every car. More important than the headline number is Eventuri’s test method: the company says the car was tested in a controlled dyno cell, temperatures were stabilized before comparison runs and fuel trims were logged.

That is exactly how a high-end naturally aspirated combination should be evaluated. A single hero pull with different coolant, oil or inlet-air temperature can make a weak test look impressive. Controlled before-and-after data tells you whether the part actually changed the engine’s airflow and output.

Intake and exhaust should be treated as one airflow system

The LT6 moves a lot of air on both sides of the cylinder head. Once the intake side is improved, exhaust-system selection becomes part of the same conversation. For street-driven Z06 owners who want more sound and less restriction without turning the car into a one-purpose track build, SMG currently carries several application-specific systems, including the Corsa 3-inch valved cat-back for 2023–2025 C8 Z06 and the Borla ATAK 3-inch system for 2023–2026 C8 Z06.

The right choice depends on how the car is used. Sound level, valve functionality, cabin comfort, weight, heat and the rest of the engine combination all matter. The lesson from the GT3.R connection is not “race parts everywhere.” It is that the best results come from treating the vehicle as a complete system.

Dyno numbers are useful only when the test is controlled

On a car like the Z06, a baseline is worth having before the first major airflow change. Intake-air temperature, coolant and oil temperature, fuel trims and atmospheric conditions can all influence what appears on the graph. Our recent guide, Your Dyno Sheet Is Only Half the Story: 7 Data Channels That Can Save a High-Horsepower Build, explains why the channels behind the horsepower number often tell you more than the peak itself.

For North Texas owners, North Texas High Performance’s Mainline ProHub 3000CCS gives us a repeatable hub-mounted environment for baseline pulls, before-and-after verification, diagnostics and calibration work. Removing the tire-to-roller interface helps reduce another variable when the goal is to find out what a modification actually changed.

Race-car DNA is not a substitute for a build plan

The Z06’s race-derived engineering is impressive, but the 80% figure should not be interpreted as unlimited headroom or permission to ignore the rest of the vehicle. Any modified LT6 still needs the basics handled correctly:

• Airflow: Intake and exhaust parts should be chosen for the actual combination, not just the largest advertised dimensions.
• Heat: Track use and repeated high-rpm operation place very different thermal demands on the car than a short street pull.
• Data: Fuel trims, temperatures and other logged channels help separate a real improvement from a dyno-number coincidence.
• Installation: Carbon-fiber intake systems, exhaust valves, sensors, clamps and fasteners all need correct fitment and inspection.
• Validation: A baseline and a controlled post-installation test are the cleanest way to prove the result.

Performance cars are still where enthusiasts spend

The timing also lines up with SEMA’s latest market research. In an August 20, 2026 SEMA analysis, the organization put the specialty sports-car aftermarket at $2.97 billion and said 24% of sports-car owners modify their vehicles, versus 12% of CUV owners. GM’s continued investment in Corvette racing is a good example of why modern performance cars remain such a strong platform for the aftermarket.

Build the LT6 around a goal, then prove it

If you are modifying a C8 Z06, start with what you actually want from the car: sharper response, more sound, repeatable track performance, measurable naturally aspirated power, or a complete combination. SMG Speed Shop can supply the application-specific hardware, and NTHP can handle professional installation and controlled before-and-after dyno verification for North Texas customers.

Shop the featured Eventuri C8 Z06 intake, explore the Corsa and Borla Z06 exhaust options linked above, or contact North Texas High Performance to plan and validate your next C8 Z06 upgrade.

Fitment varies by model year, body configuration and product. Verify the exact application before ordering. Manufacturer dyno claims are cited as published and may vary by vehicle, conditions, fuel and testing method.
