Your Dyno Sheet Is Only Half the Story: 7 Data Channels That Can Save a High-Horsepower Build
A peak horsepower number makes a great screenshot. A good data log can save an engine.
That distinction matters more as power goes up. A dyno sheet can tell you what the car made at the end of a pull, but it does not automatically tell you whether fuel pressure dipped for half a second, intake-air temperature climbed faster than expected, system voltage sagged under load, boost overshot its target, or the ECU pulled timing to protect the engine. Those are the details that separate a combination that makes a number once from one that can repeat it safely.
Performance Racing Industry has highlighted the same problem in racing: people often either under-instrument a car because they are afraid of too much data, or log everything without organizing the channels that actually answer a question. The goal is not more squiggly lines. The goal is the right information, recorded under the same conditions, so you can make a decision instead of a guess.
1. Lambda: the first fuel number we want to trust
Wideband oxygen data is the foundation of almost every serious calibration session. For a car that may run gasoline, E85, race fuel or a changing ethanol blend, lambda is especially useful because it describes mixture relative to stoichiometric rather than forcing every fuel into a gasoline-style AFR scale.
The AEM X-Series Wideband UEGO controller and gauge can display AFR, lambda or O2 percentage and provides 0-5V, serial and CAN outputs for logging. But the important part is not simply having a wideband on the car. You want to compare commanded fueling to measured lambda through the entire pull and look for a change that corresponds with RPM, boost, fuel pressure, injector demand or another event.
We covered that subject in more detail in Stop Tuning by AFR Alone: Lambda, E85 Content and Wideband Errors Explained.
2. Fuel pressure: pump size is not a data log
“It has a big pump” is not a measurement. The question is whether the system maintains the pressure the engine and injectors require when demand is highest.
On boosted applications, the useful view is pressure behavior relative to manifold pressure. If fuel pressure starts falling as boost and injector demand climb, the engine can run out of fuel even though the pump sounded fine in the parking lot. Logging fuel pressure alongside lambda, boost and injector data makes the problem much easier to isolate.
This is also why a fuel system should be selected around horsepower target, fuel type, pressure requirement and actual duty cycle rather than only a pump’s advertised flow number.
3. MAP and boost: what the engine actually saw
A boost gauge gives the driver a quick reference. A logged MAP channel shows what happened through the entire event.
That matters when diagnosing boost creep, an overboost spike, wastegate-control behavior, a belt or bypass issue, or a car that simply is not reaching the pressure it used to. For builds that need an additional pressure input, SMG carries the AEM 3.5-bar MAP / 50-PSIA stainless sensor kit.
The important diagnostic move is correlation. If boost changes at the same time lambda, fuel pressure, throttle angle or timing changes, you are no longer guessing which event came first.
4. Intake-air temperature: the number behind heat soak
Two pulls at the same boost do not necessarily represent the same operating condition. Charge temperature can change dramatically after idling, repeated pulls, a long staging delay or a hot street drive.
Logging intake-air temperature helps show whether a power loss is caused by the hardware, the calibration protecting itself, or simply a hotter starting condition. It also lets you evaluate intercooler-system changes with something better than “the car felt stronger.” SMG carries components such as the AEM inlet-air-temperature sensor kit for applications that require an additional temperature input.
5. Ignition timing, knock response and torque intervention
A clean-looking air/fuel trace does not mean the ECU was happy. Modern engine management can remove timing, close the throttle, reduce torque or invoke other protections while the driver sees nothing more than a car that made less power than expected.
Whenever the ECU and logging platform expose the channels, we want to see commanded and delivered timing, knock response, throttle position and relevant torque-management data together. A dyno graph may show where power fell off. The log often tells you why.
6. Oil pressure and coolant temperature: boring until they are not
These channels do not make glamorous social-media screenshots, but they can be among the most valuable on the car. Oil pressure that changes abnormally with RPM, braking or cornering can reveal a problem long before the driver hears it. Coolant temperature trends can expose airflow, fan-control, thermostat or cooling-capacity problems that a single dashboard reading hides.
For road-course and endurance use, those trends matter over time. For drag and dyno use, they help establish repeatable starting conditions so one pull can actually be compared with the next.
7. System voltage and fuel-system demand
High-output fuel pumps, fans, intercooler pumps, ignition systems and control modules all depend on the electrical system. A voltage drop under load can change pump output, injector behavior and sensor readings, which means an “engine problem” can sometimes be an electrical problem wearing a disguise.
When available, log battery or system voltage together with injector duty, fuel-pump command, fuel pressure and lambda. If the electrical system sags at exactly the same point fuel pressure changes, you have a much better starting point than replacing parts one at a time.
Why a logging dash is more than a prettier gauge cluster

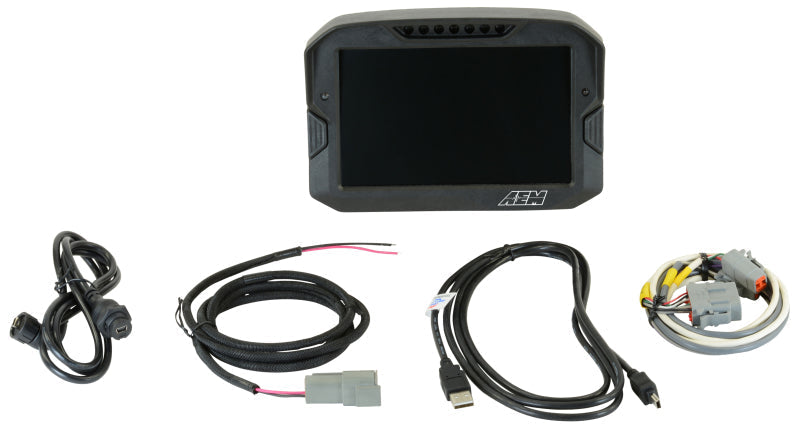

A modern logging display can combine the channels you care about into one system instead of scattering gauges around the cabin. The AEM CD-7 Logging Race Dash gives builders a 7-inch CAN-capable display with onboard logging capability, while the AEM CD-7 Logging GPS model adds GPS capability for applications where speed, position or lap-related data matters.
AEM specifies logging versions of the CD-7 family at up to 1,000 Hz per channel. That does not mean every temperature sensor needs to be sampled 1,000 times per second. It means the platform has enough headroom to record fast-changing channels quickly while slower channels can be configured appropriately. Good logging is about useful resolution, not simply creating the largest file possible.
Street car, drag car and road-course car: different questions, different logs
A 750-horsepower street car might care most about fuel pressure, lambda, boost, charge temperature, knock response and voltage during a third-gear pull. A drag car may add driveshaft or wheel speed, launch RPM, boost ramp and shock or suspension data. A road-course car may prioritize oil pressure, oil temperature, coolant temperature, brake temperature, GPS and sustained lateral-load behavior.
The hardware should follow the question. That is one reason PRI’s data-acquisition coverage has repeatedly emphasized choosing a system that can grow with the car instead of buying the absolute minimum and discovering later that the channel you need was never recorded.
The dyno number is the result. The log is the explanation.
This is also why controlled dyno testing matters. A dyno is not only a horsepower contest. It gives you a repeatable load environment where changes in fuel pressure, temperature, boost, timing and calibration can be compared without relying on seat-of-the-pants impressions.
At North Texas High Performance, our Mainline ProHub dyno gives us a controlled way to load the vehicle while we evaluate the calibration and supporting systems together. For a serious build, that means looking beyond the peak number and making sure the combination behaves correctly from the beginning of the pull to the end.
If you are comparing parts or modifications, the same principle applies. Our earlier guide, That “Adds 25 HP” Claim May Not Mean What You Think, explains why repeatable test conditions matter before assigning a horsepower gain to a part.
Build the car so it can tell you what is wrong
A data system does not make horsepower by itself. What it does is make problems visible. That can shorten diagnosis, improve calibration decisions and give you a baseline to compare against when something changes six months later.
Building or upgrading a performance car? Shop SMG’s AEM CD-7 logging dash, X-Series wideband, MAP and temperature-sensor options, or contact SMG Speed Shop for help putting together the right monitoring and supporting hardware. For installation, calibration and dyno validation in North Texas, NTHP can test the combination under load instead of guessing from a parts list.
Technical references: Performance Racing Industry: Data Acquisition Systems; PRI: Data Driven; AEM CD-7FL product specifications; AEM X-Series Wideband specifications.
